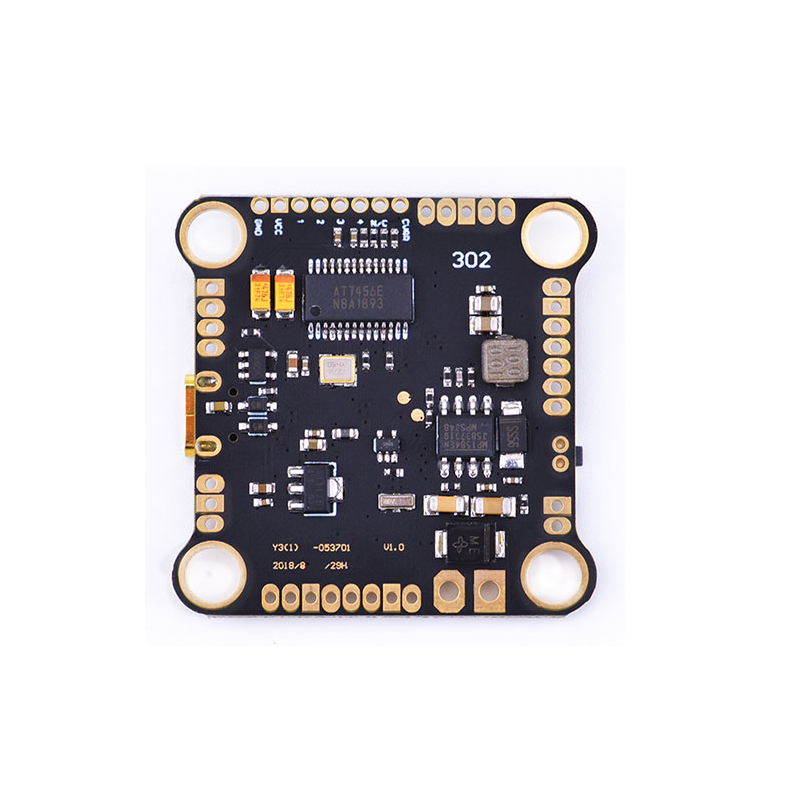

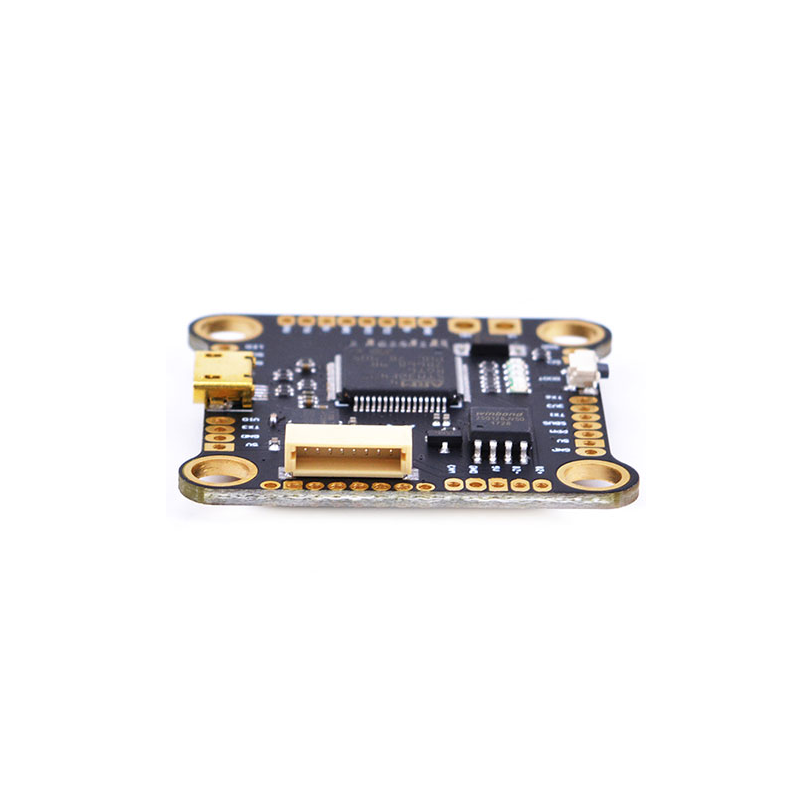

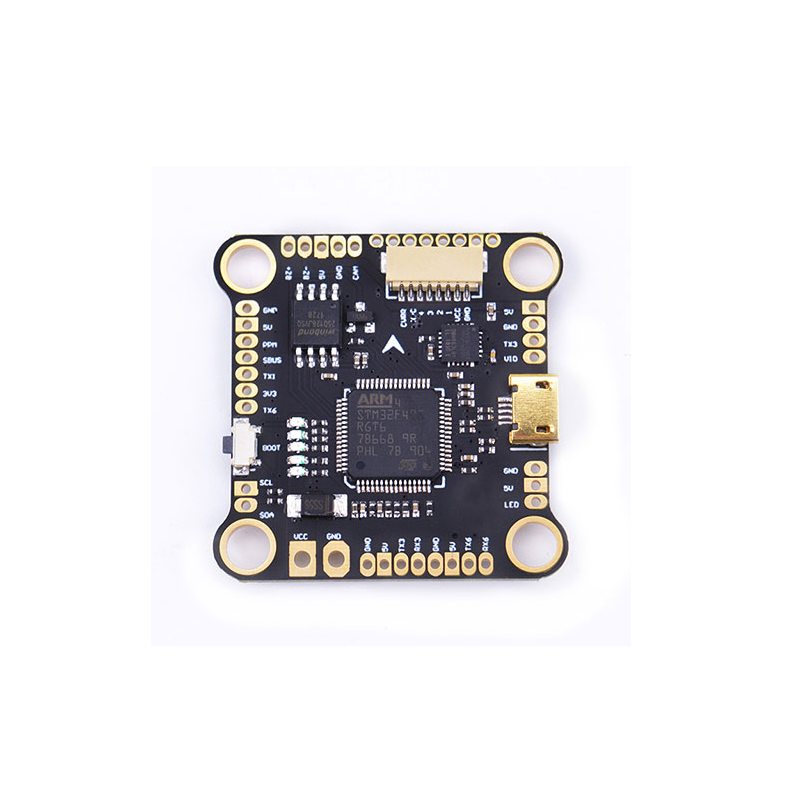

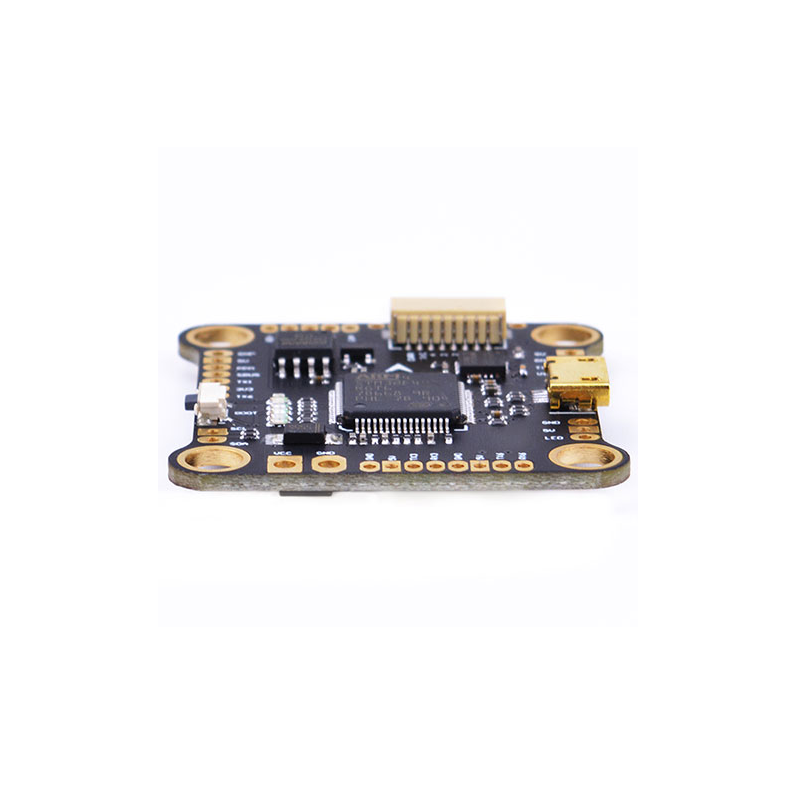

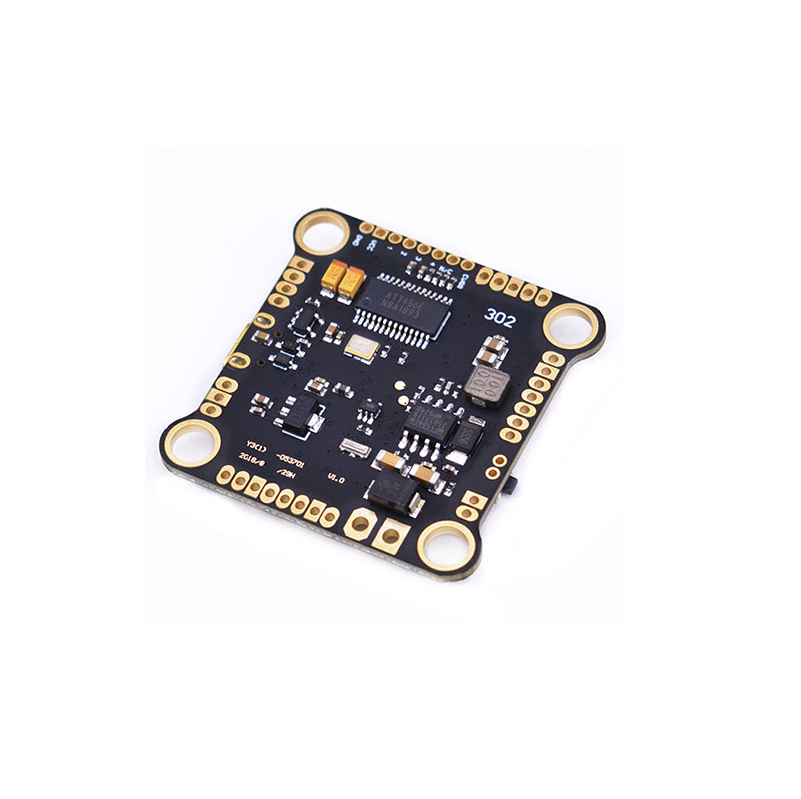

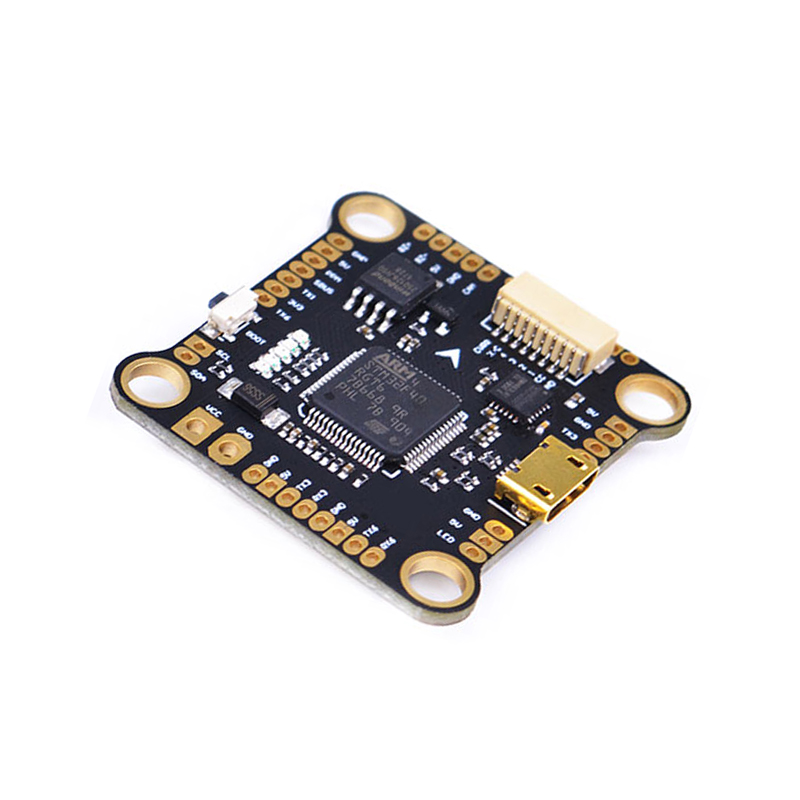

Mamba F405 Flight Controller Betaflight STM32
The Mamba F405 Flight Controller is a Betaflight-configurable STM32F405-based board designed for high-performance FPV drones. It integrates an SPI MPU6000 gyro, a 5V/1.5A BEC, an AT7456 OSD, and a current sensor for streamlined 3-6S LiPo builds.
Features
- STM32F405 MCU delivers high-speed processing for Betaflight with fast loop times.
- SPI-connected MPU6000 IMU provides low-noise gyro and accelerometer data.
- Integrated 5V/1.5A BEC powers the FC and peripherals directly from 2-6S LiPo input.
- Built-in AT7456 OSD overlays flight data directly onto your FPV video feed.
- On-board current and voltage sensor for real-time battery monitoring via OSD.
Out of stock
The Mamba F405 Flight Controller leverages the robust STM32F405 microcontroller, offering ample processing power and memory for complex Betaflight firmware features and high PID loop rates. Its design prioritizes signal integrity with a dedicated SPI bus for the MPU6000 inertial measurement unit, ensuring precise and responsive flight control for acrobatic FPV flying and racing.
Electrical integration is simplified with an onboard switching BEC rated for 5V at 1.5A, capable of powering the flight controller, receiver, and a 5V FPV camera or video transmitter. The integrated AT7456 OSD chip allows pilots to configure and display critical telemetry—such as battery voltage, current draw, RSSI, and flight mode—without requiring an external OSD module.
Additional Information
| Weight | 0.008 kg |
|---|---|
| Dimensions | 3.8 × 3.8 cm |
