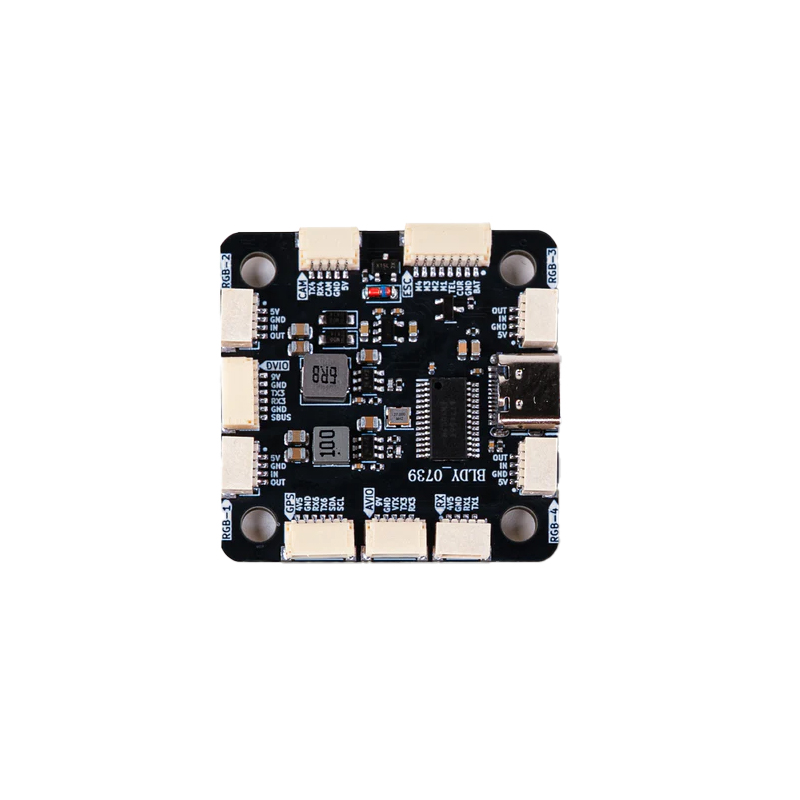

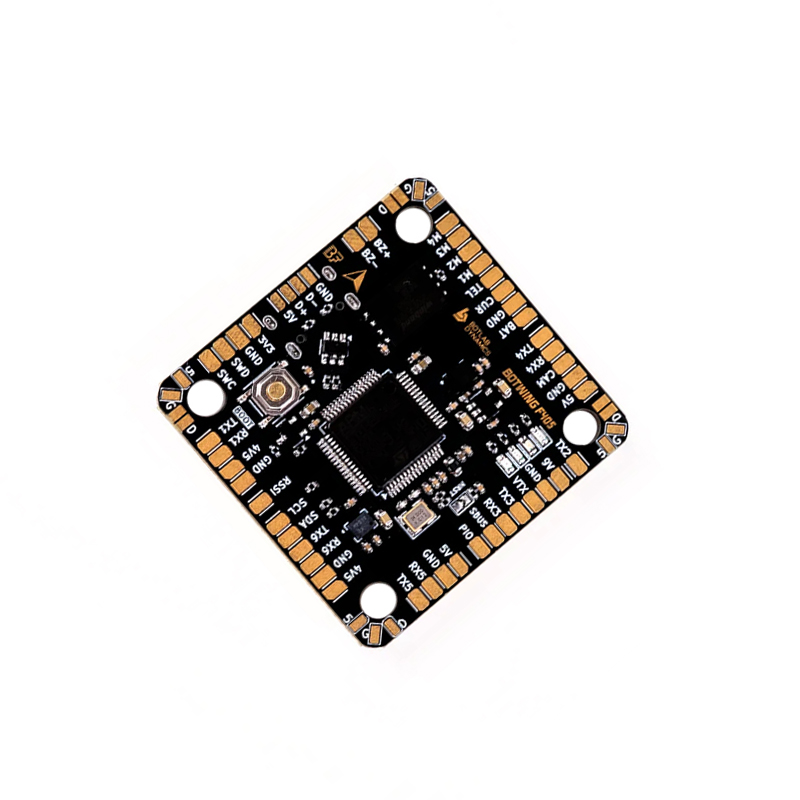

BotWing F405 Flight Controller (Fully Solderless Design)
The BotWing F405 Flight Controller is a fully solderless flight controller built around the STM32F405 MCU and ICM42688P IMU, designed for Betaflight, iNav, and Mission Planner firmware on 3-6S LiPo FPV and freestyle drone builds.
Features
- Fully solderless plug-and-play design with pre-terminated connector cables.
- Powered by STM32F405 MCU and ICM42688P IMU for stable, high-performance flight control.
- Direct 6-pin plug support for DJI Digital FPV Air Unit integration.
- Features AT7456E OSD chip and 32MB Winbond Blackbox for telemetry and logging.
- 40x40mm board with 30.5×30.5mm mounting pattern for standard FPV frame compatibility.
Out of stock
The BotWing F405 Flight Controller leverages a solderless architecture to simplify advanced drone assembly. Its core processing is handled by the STM32F405 microcontroller, paired with the ICM42688P inertial measurement unit, delivering precise gyroscopic and accelerometer data for stable flight dynamics across Betaflight, iNav, and ArduPilot-based Mission Planner environments.
Electrical integration is streamlined with dedicated voltage pads (5V, 9V, 4.5V, 3.3V) and six UART ports for peripherals like GPS, VTX, camera control, and ESC telemetry. The integrated AT7456E OSD chip provides clear on-screen telemetry overlay, while the 32MB flash memory supports extensive blackbox logging for detailed flight analysis and tuning.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 4 × 4 cm |
