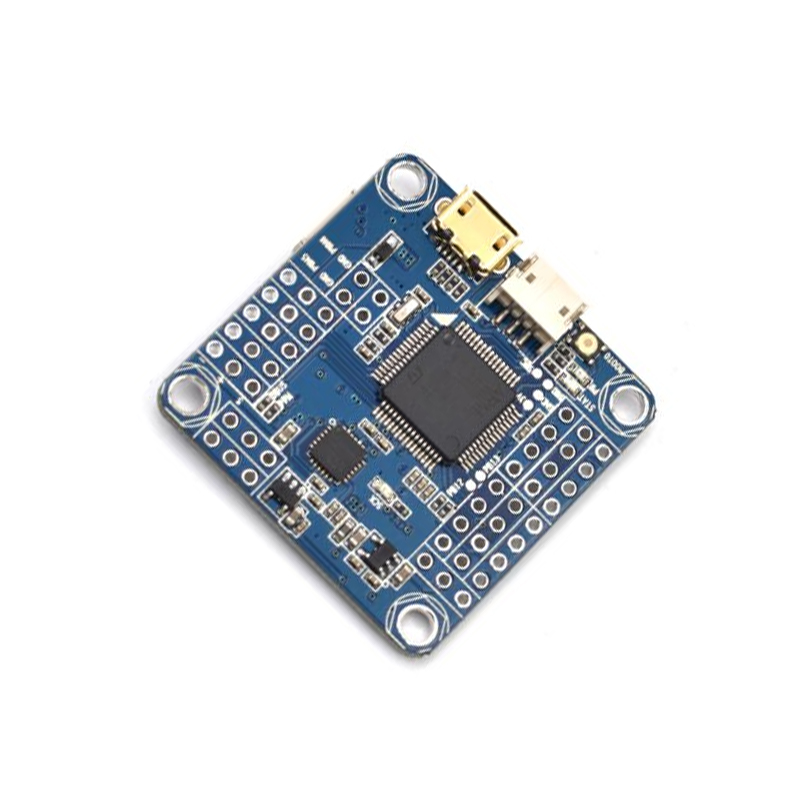

Flip32 OMNIBUS F4 Flight Controller
The Flip32 OMNIBUS F4 Flight Controller is an integrated F4 hardware platform featuring an onboard MAX7456-compatible OSD chip, designed for FPV racing and freestyle drones. It runs Betaflight or Raceflight firmware and accepts direct LiPo input up to 5S via its integrated 5V/1.5A BEC.
Features
- STM32F405 MCU with MPU6000 gyro over SPI for high-performance, low-noise flight control.
- Integrated AB7456 OSD chip configurable directly within Betaflight, eliminating external OSD modules.
- Direct 2-5S LiPo input with onboard 5V/1.5A BEC, removing the need for a separate PDB or BEC.
- Compact 36x36mm footprint with 30.5×30.5mm mounting pattern for standard FPV frame compatibility.
- Supports Betaflight 3.0+, Raceflight, DShot ESC protocols, SBUS/PPM, and DSM2/DSMX satellite receivers.
Out of stock

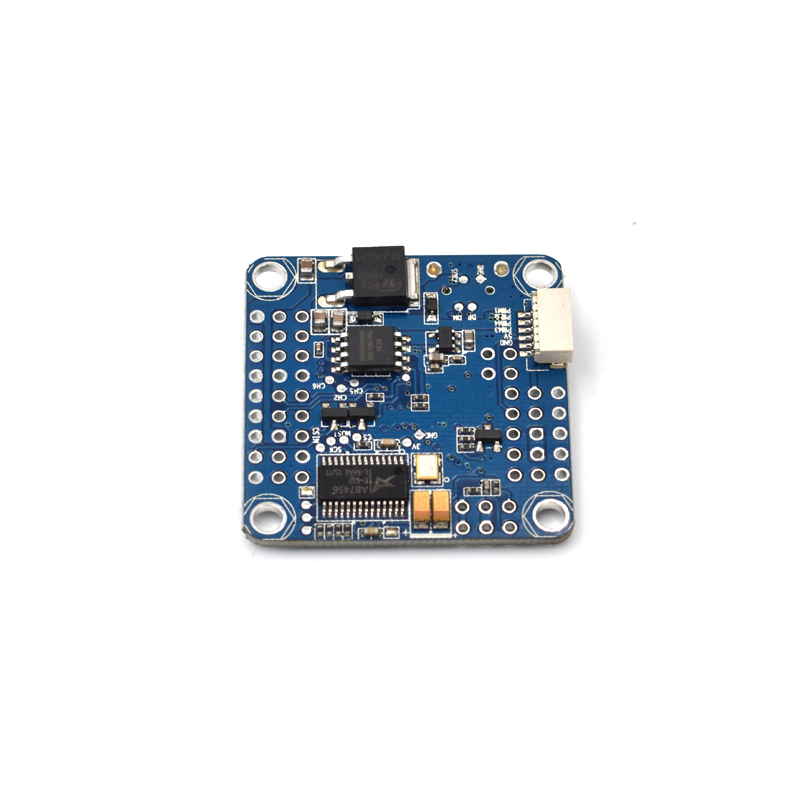

The Flip32 OMNIBUS F4 Flight Controller consolidates flight control, OSD, and power regulation into a single, robust 36x36mm board. Its STM32F405 MCU, paired with an SPI-connected MPU6000 inertial sensor, delivers precise, low-latency gyro data essential for aggressive acro and racing maneuvers. The integrated AB7456 OSD chip (an enhanced MAX7456) is directly managed by the flight controller firmware, allowing for real-time telemetry overlay configuration without external tools.

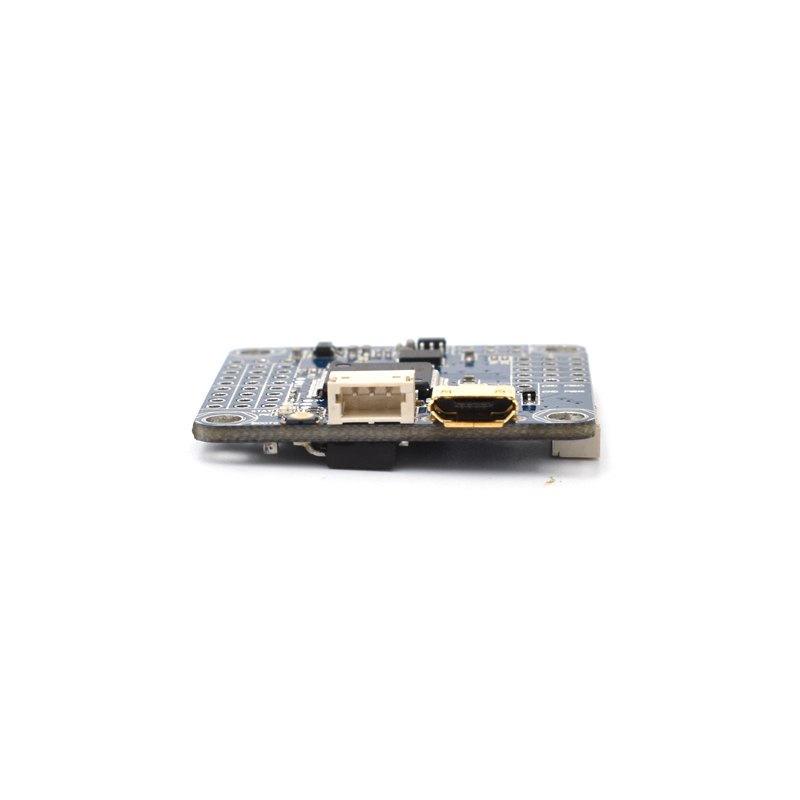

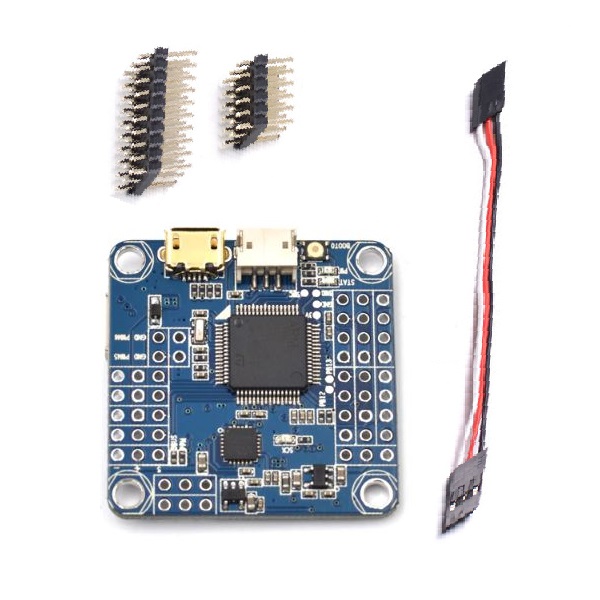

Engineered for simplified builds, the board features a high-current L78 voltage regulator that accepts 2-5S LiPo battery input directly, outputting a stable 5V/1.5A for the FC and peripherals. This design eliminates the need for a separate Power Distribution Board (PDB) in many setups. The through-hole pin header design ensures reliable solder connections for receivers, ESCs, LED strips, and buzzers, contributing to a clean and durable installation.
Additional Information
| Weight | 0.005 kg |
|---|---|
| Dimensions | 3.6 × 3.6 × 0.7 cm |
