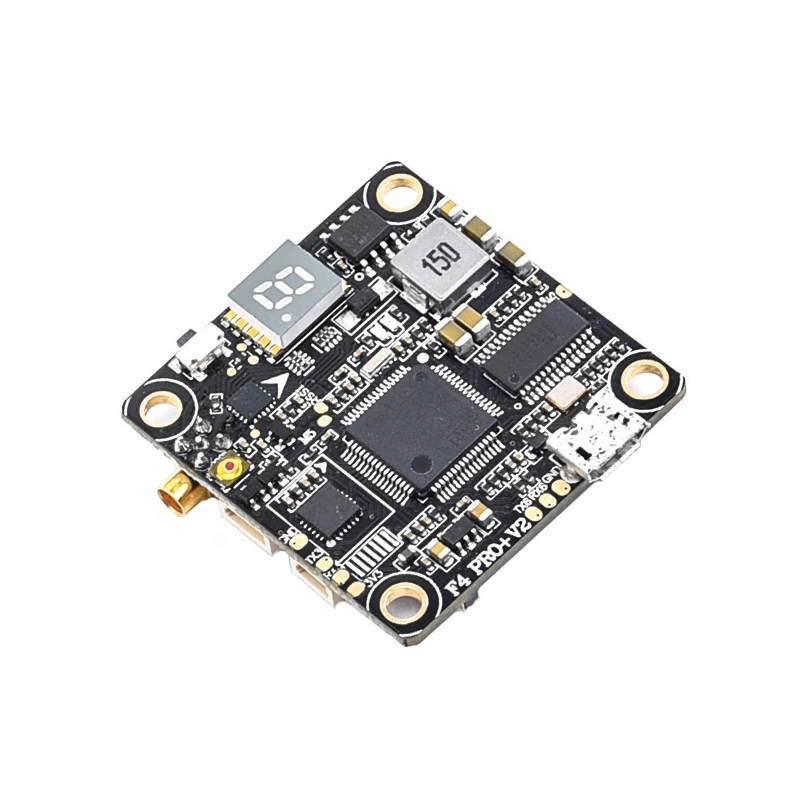

Mamba F4 Pro V2 Flight Controller

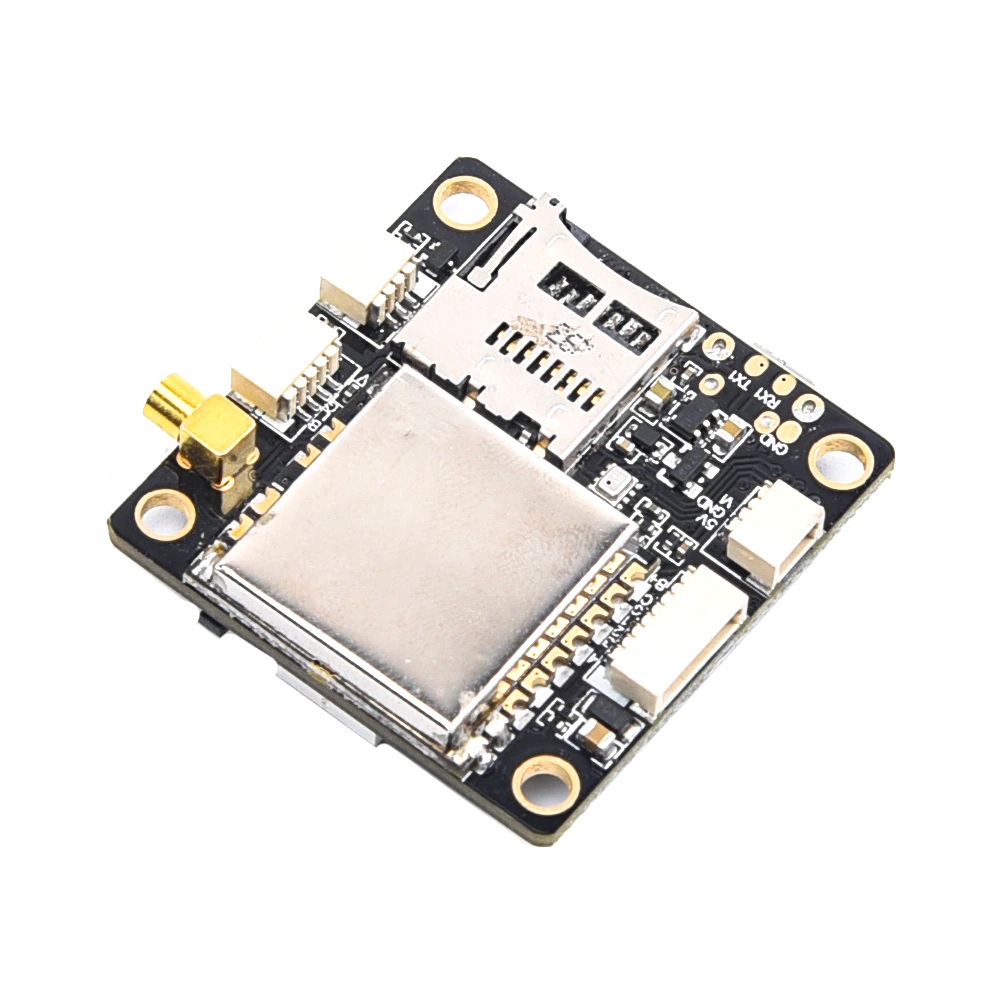

Mamba F4 Pro V2 Flight Controller - Image 2
Mamba F4 Pro V2 Flight Controller - Image 3
SKU: DRFC-2033
📋 GST Invoice Available

Mamba F4 Pro V2 Flight Controller

₹2,950.00 (Inclusive of all taxes)
Out of Stock

The Mamba F4 Pro V2 is a 30.5×30.5mm flight controller featuring an STM32F405 processor and MPU6000 gyro, compatible with 2-6S LiPo batteries and Betaflight firmware for FPV racing and freestyle drones.

Features

  • STM32F405 MCU with Betaflight OMNIBUSF4SD firmware pre-loaded.
  • MPU6000 gyroscope with dedicated external gyro interface for advanced setups.
  • Wide 2-6S LiPo input voltage range with integrated 5V/3A BEC.
  • Integrated OSD for Betaflight configuration via transmitter stick commands.
  • Supports Dshot, SmartAudio, and multiple receiver protocols (SBUS, IBUS, PPM, DSM).

Out of stock

Description

The Mamba F4 Pro V2 flight controller is built around the powerful STM32F405 microcontroller, providing ample processing headroom for complex Betaflight filtering and tuning. Its 30.5×30.5mm mounting pattern ensures compatibility with a wide range of FPV drone frames and ESC stacks.

Designed for reliability, the board includes a robust 5V/3A BEC to power peripherals and features a comprehensive set of connectivity options, including dedicated UARTs for SmartAudio VTX control and a microSD slot for high-speed Blackbox logging. The integrated OSD allows for real-time telemetry overlay and in-flight PID adjustments without needing a computer.

Key Features

  • High-performance STM32F405 processor for responsive flight control.
  • MPU6000 gyroscope delivers stable and accurate flight data.
  • Integrated OSD with Betaflight configurator support for on-screen adjustments.
  • 5V/3A BEC provides clean, stable power for receivers, VTXs, and cameras.
  • MicroSD card slot for detailed Blackbox flight data logging.
  • Supports Dshot, Multishot, and Oneshot ESC protocols for precise motor control.
  • SmartAudio and Tramp support for VTX control via Betaflight OSD.
  • Compact 30.5x30.5mm footprint with 36x36mm board size for versatile mounting.

Applications

  • 5-inch FPV racing drones requiring high-performance flight control and Blackbox analysis.
  • Freestyle quadcopters where integrated OSD and SmartAudio simplify in-flight adjustments.
  • Mid-range 3-6 inch FPV builds needing a reliable 30.5x30.5mm FC with wide voltage input.
  • Betaflight-based projects requiring extensive telemetry and configurable UART peripherals.

Technical Specifications

ModelMamba F4 Pro V2
ProcessorSTM32F405
GyroscopeMPU6000
FirmwareBetaflight OMNIBUSF4SD
Input Voltage2-6S LiPo (7-24V DC)
BEC Output5V @ 3A
Mounting Pattern30.5x30.5mm
Board Dimensions36 x 36mm
Weight13g (Net)
OSDIntegrated Betaflight OSD
Receiver ProtocolsSBUS, IBUS, PPM, DSM2/DSMX (UART1)
VTX ControlSmartAudio/Tramp (UART3)
BlackboxMicroSD Card Slot
ESC ProtocolsDshot, Multishot, Oneshot

Frequently Asked Questions

What is the input voltage range for the Mamba F4 Pro V2?

The Mamba F4 Pro V2 supports a wide input voltage range from 2S to 6S LiPo batteries, which corresponds to 7V to 24V DC. Its integrated 5V/3A BEC provides clean power for your receiver, VTX, and camera.

Which receiver protocols does this flight controller support?

It supports popular serial protocols via UART1, including SBUS and IBUS, as well as PPM and DSM2/DSMX satellite receivers. This makes it compatible with most modern radio systems from FrSky, FlySky, Spektrum, and others.

Can I control my video transmitter through the Betaflight OSD with this board?

Yes, the board supports SmartAudio and Tramp VTX control protocols via UART3. You can change channels, power levels, and other VTX settings directly from the Betaflight OSD menu using your transmitter sticks.

Does the Mamba F4 Pro V2 have Blackbox logging capability?

Yes, it features a dedicated microSD card slot for Blackbox flight data logging. This allows you to record detailed gyro, motor, and PID data for advanced tuning and analysis in Betaflight.

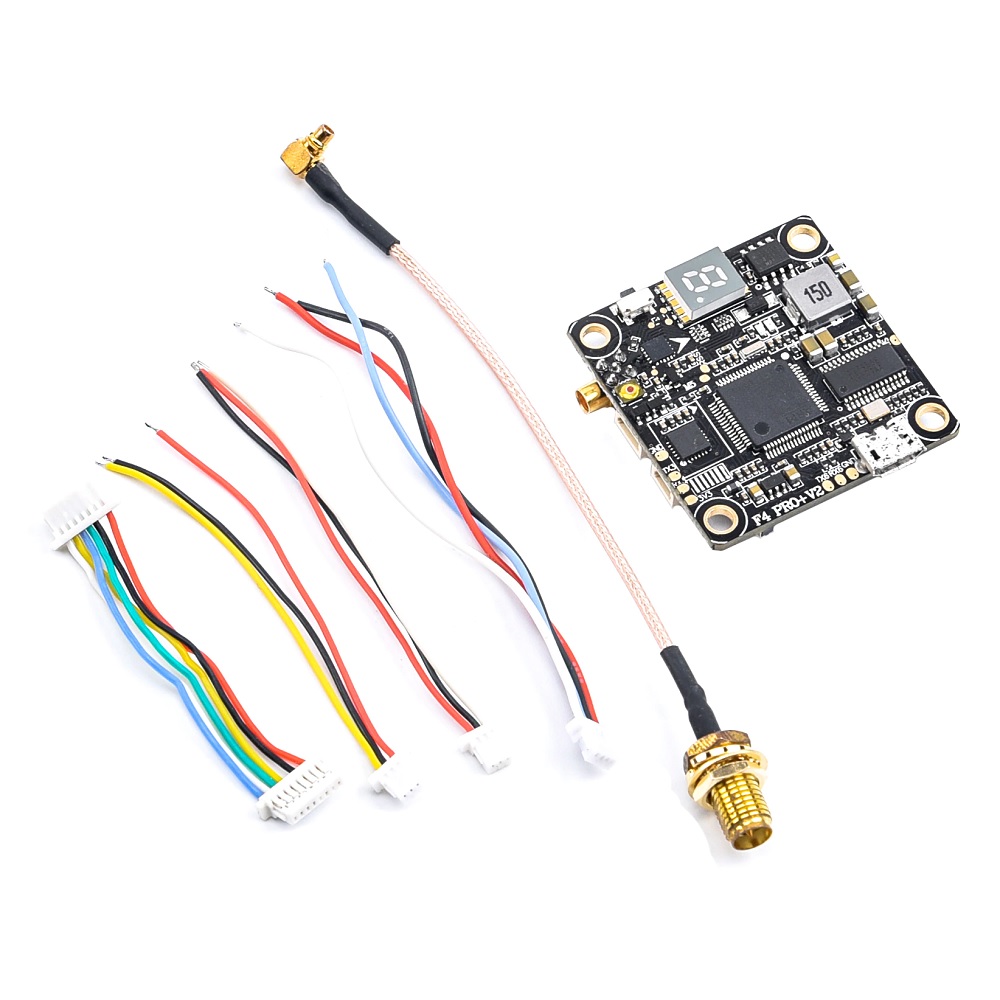

Package Includes

  • 1 x Mamba F4 Pro V2 Flight Controller
  • 1 x Set of Connecting Wires

Additional Information

Weight 0.013 kg
Dimensions 3.6 × 3.6 × 0.9 cm
