BotLab Dynamics BotStack BotWing F405 FC Solderless Design and BotDrive AM32 4-in-1 ESC 55 Amps Combo Kit
The BotStack combo integrates the BotWing F405 solderless flight controller with the BotDrive AM32 55A 4-in-1 ESC, engineered for high-performance FPV racing and freestyle drones. This stack supports 3S-6S LiPo batteries and is fully compatible with Betaflight, iNav, and Mission Planner firmware for versatile flight control.
Features
- STM32F405 MCU with ICM42688P gyro for high-speed, stable flight processing.
- 55A continuous per-motor AM32 ESC with AT32F421 controller for smooth, efficient power delivery.
- Solderless plug-and-play design simplifies wiring and speeds up build time.
- Supports DJI Air Unit, GPS, and multiple receivers (SBUS, CRSF, ELRS, DSMX) via six UARTs.
- Comprehensive protection suite including over-current, over-temperature, and short-circuit safeguards.
Out of stock

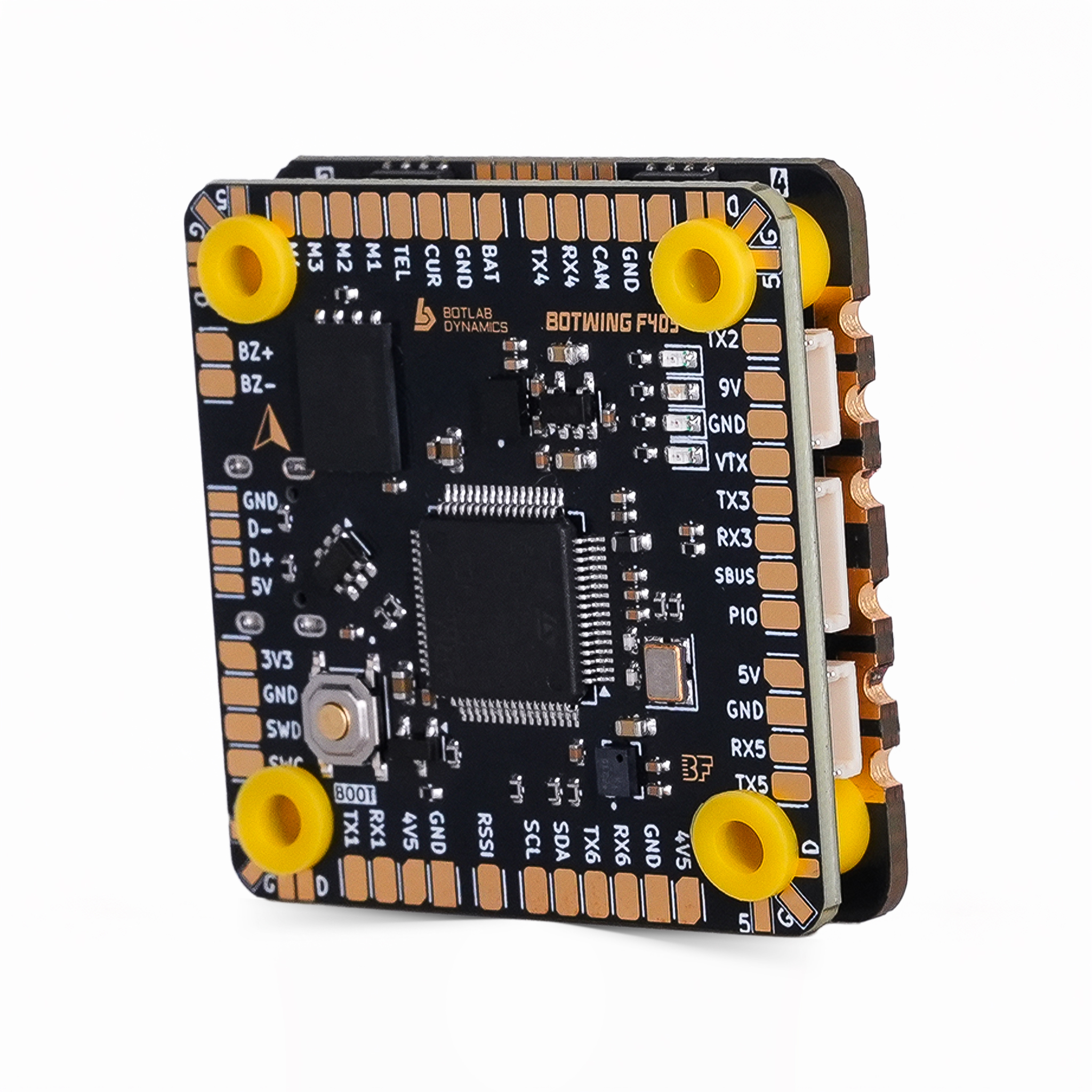

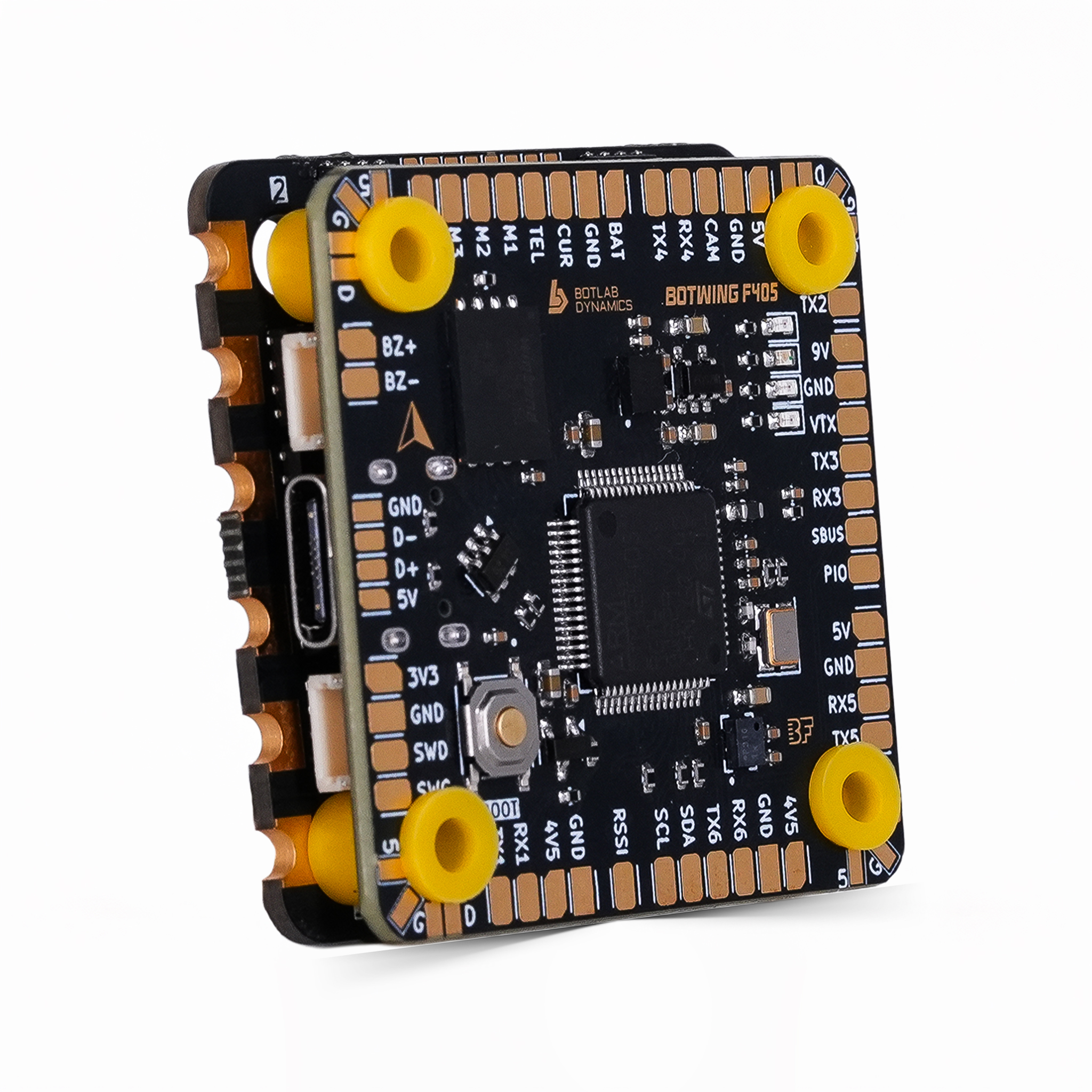

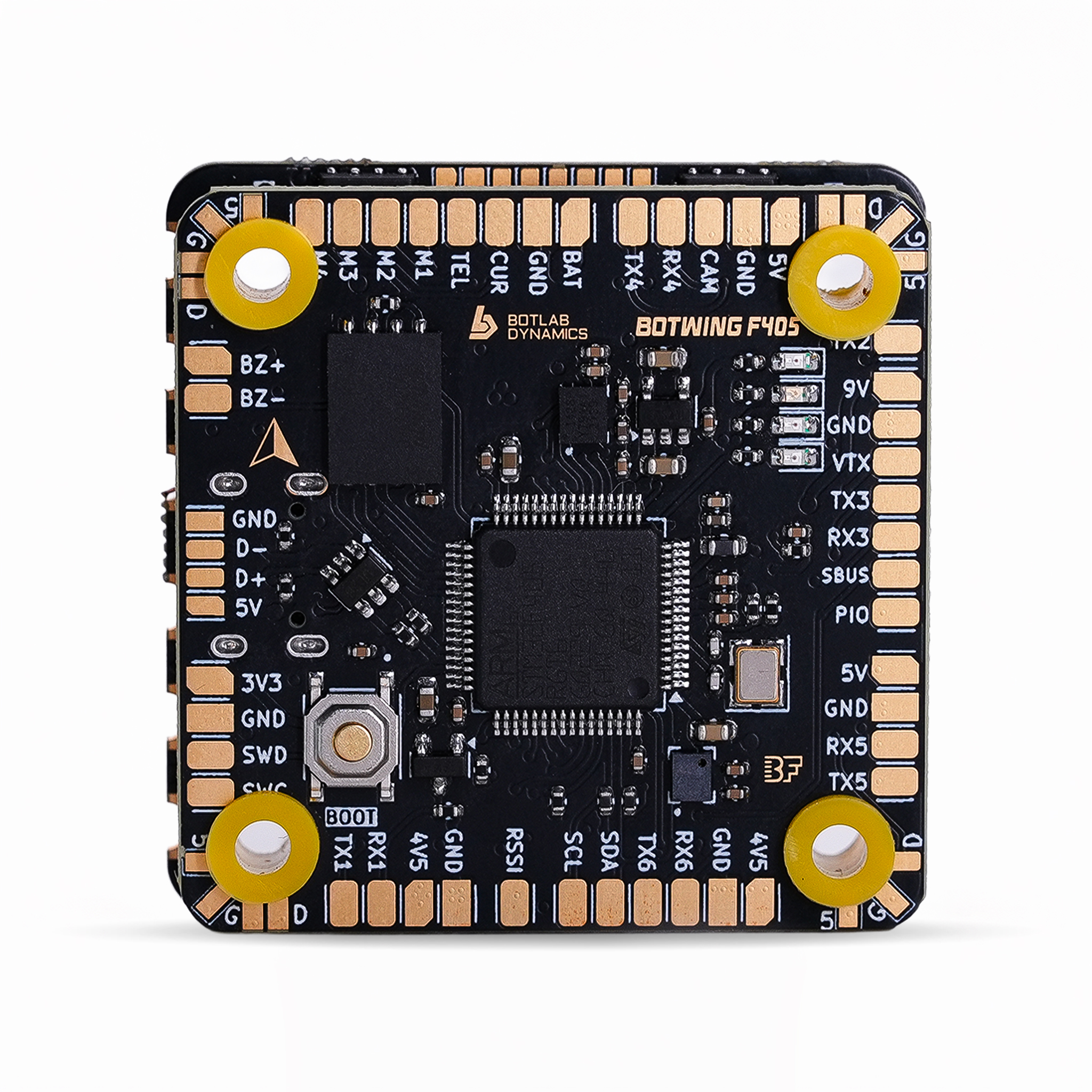

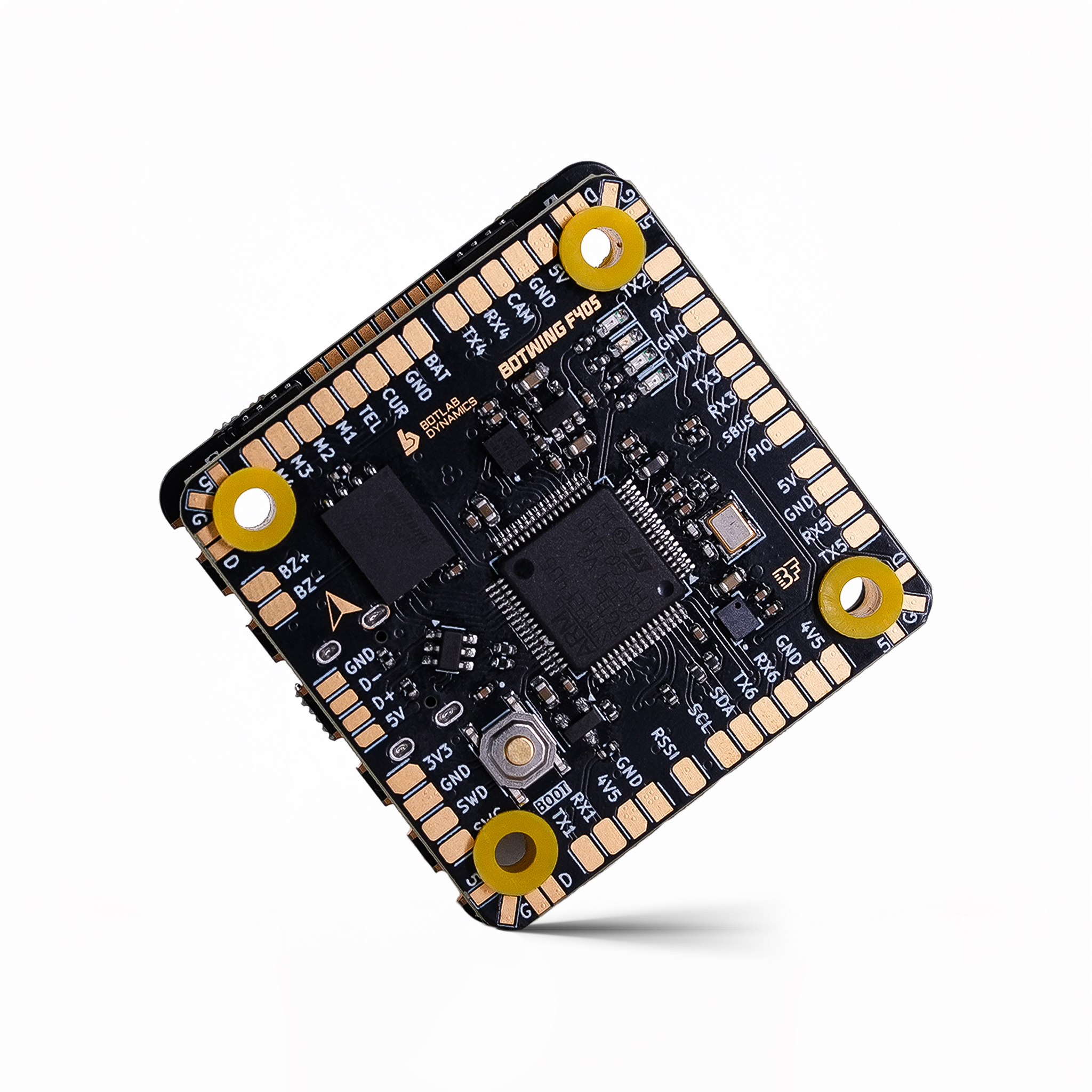

The BotStack F405 FC and AM32 ESC combo provides a robust foundation for modern FPV drones. The flight controller features a 32-bit STM32F405 processor paired with a high-precision ICM42688P gyro, delivering responsive handling and stable flight characteristics. Its solderless architecture utilizes plug-in connectors for motors, power, and peripherals, significantly reducing build complexity and potential wiring faults.

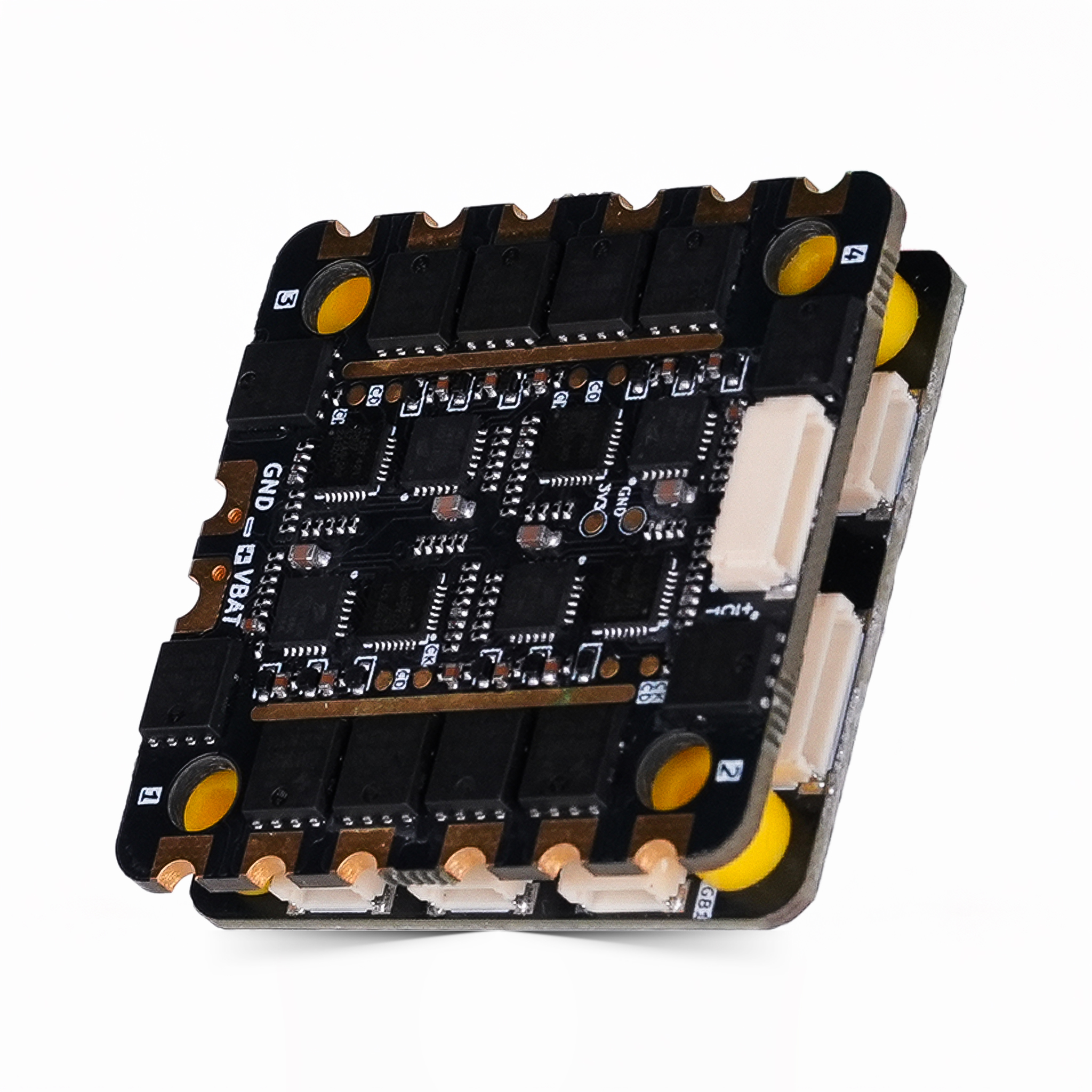

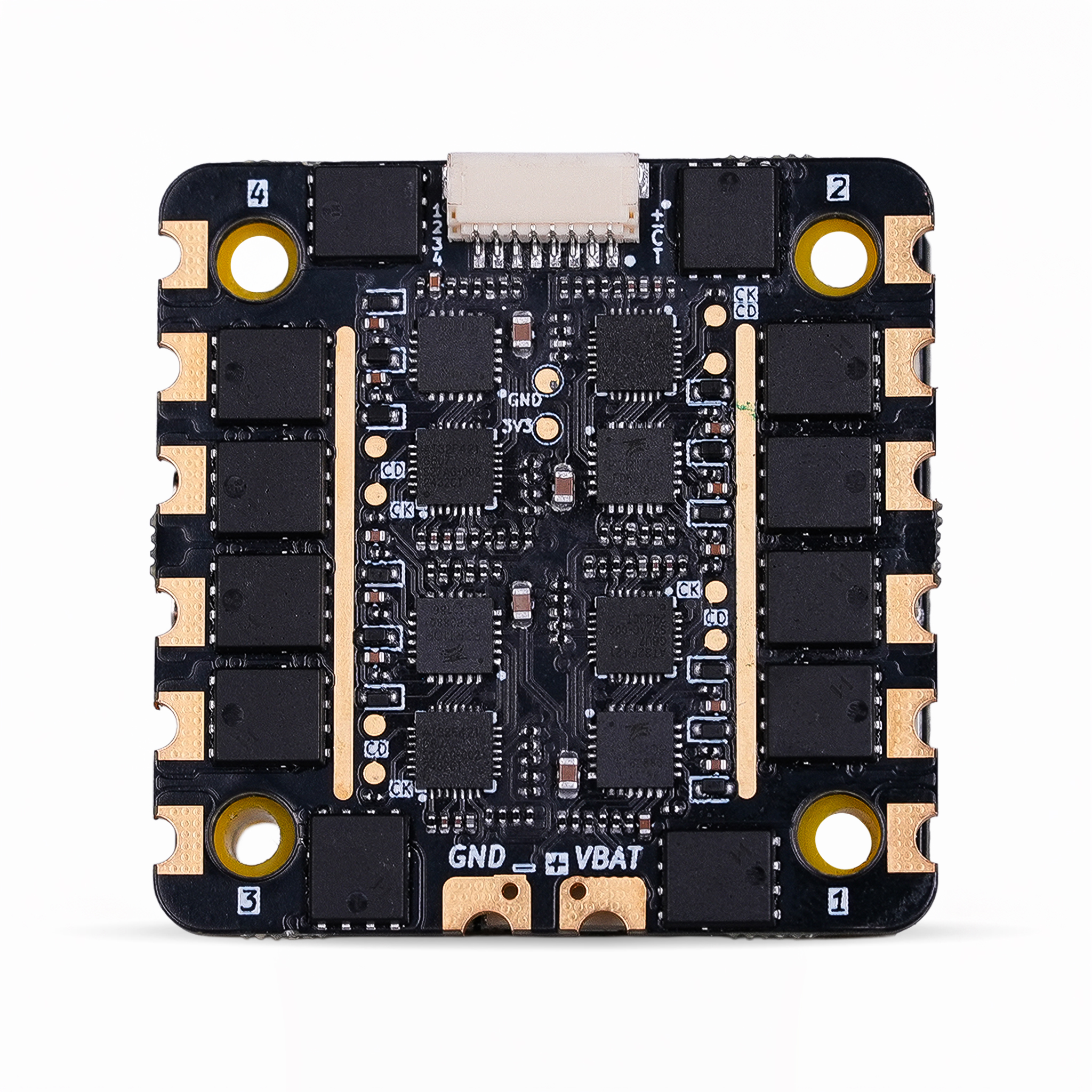

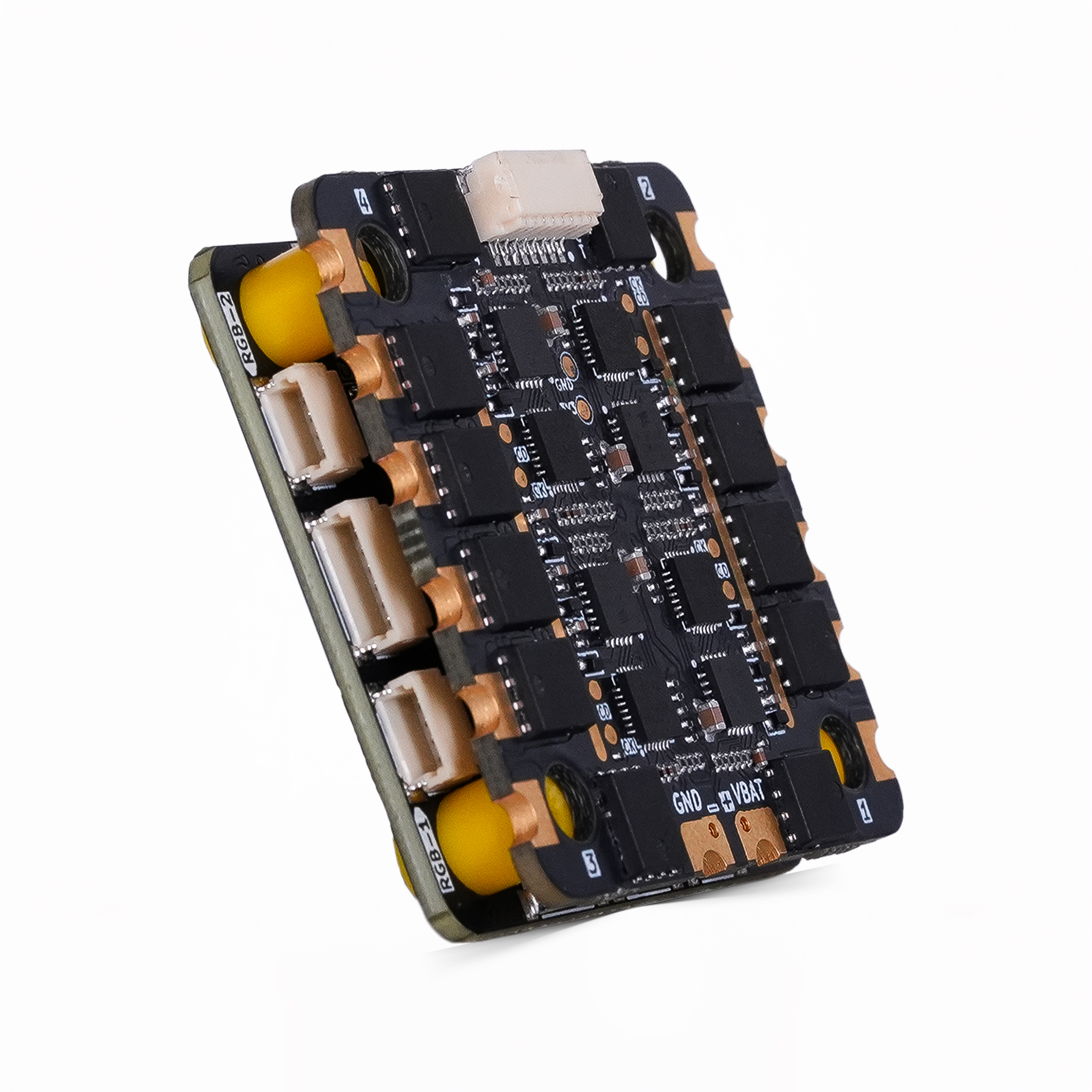

The paired BotDrive 4-in-1 ESC leverages open-source AM32 firmware on an AT32F421 MCU, offering 55A continuous current per motor with support for DShot600 telemetry. This electrical design ensures minimal latency and precise throttle response across a 2S-6S LiPo input range. The stack’s 30.5×30.5mm mounting pattern and integrated power distribution make it ideal for compact, high-performance quadcopter builds requiring reliable power management and thermal capability.
Additional Information
| Weight | 0.278 kg |
|---|---|
| Dimensions | 24 × 11 × 9 cm |
