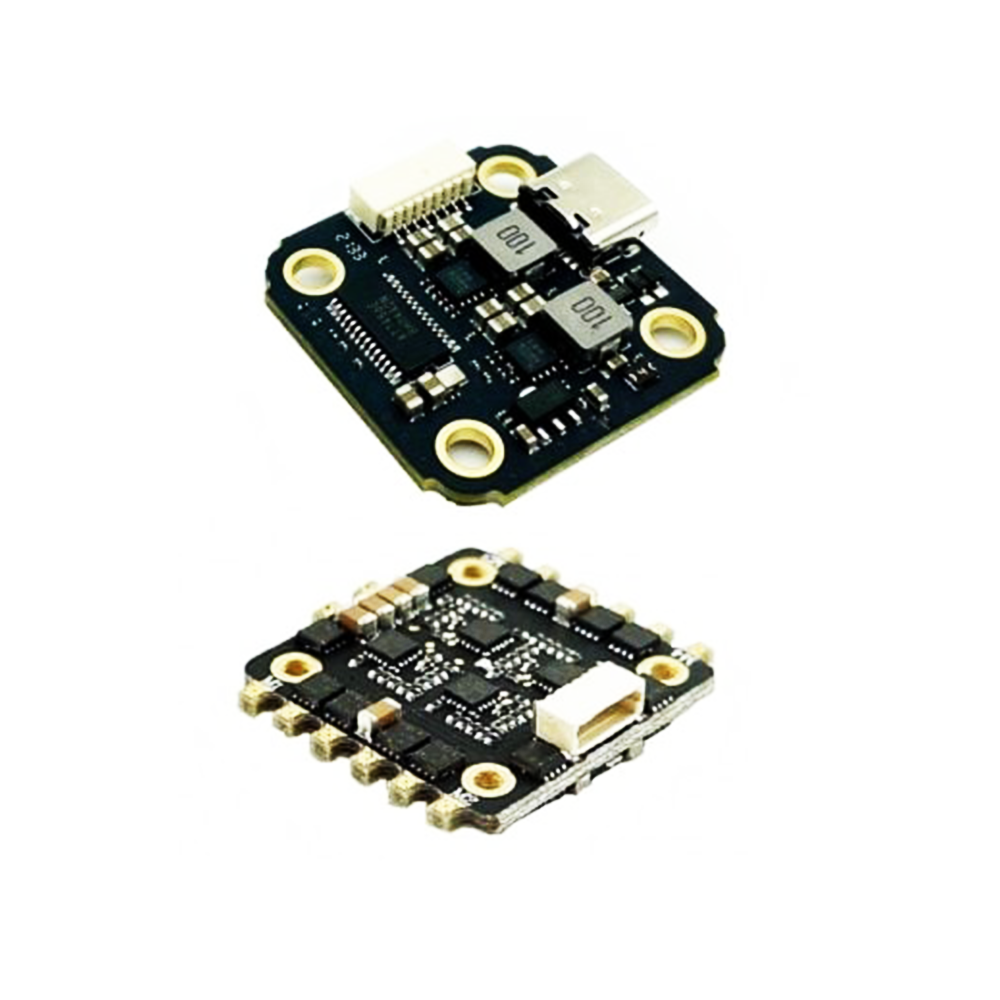

F7 MINI V2.0 Flight Controller + 35A 2-5S BLHeli_S 4-in-1 ESC Flytower
The F7 MINI V2.0 Flight Controller paired with a 35A BLHeli_S 4-in-1 ESC is a compact flytower stack designed for 3-6S FPV drone builds, featuring an STM32F405 processor, MPU6500 gyro, and BMP280 barometer for stable Betaflight or ArduPilot operation.
Features

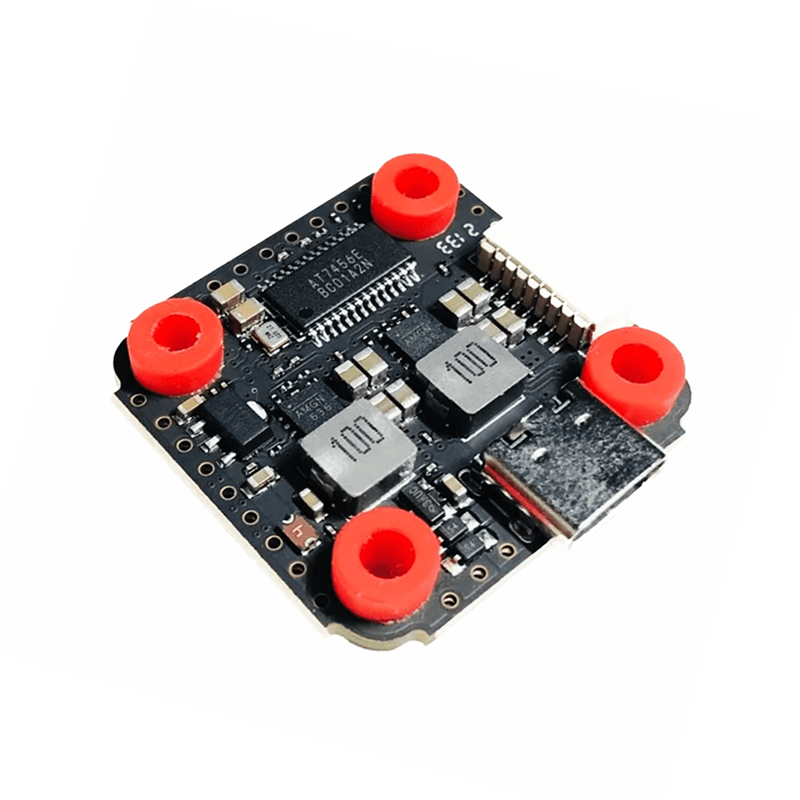

- Integrated F7 MINI V2.0 FC with STM32F405RGT6 ARM processor for high-speed flight control.

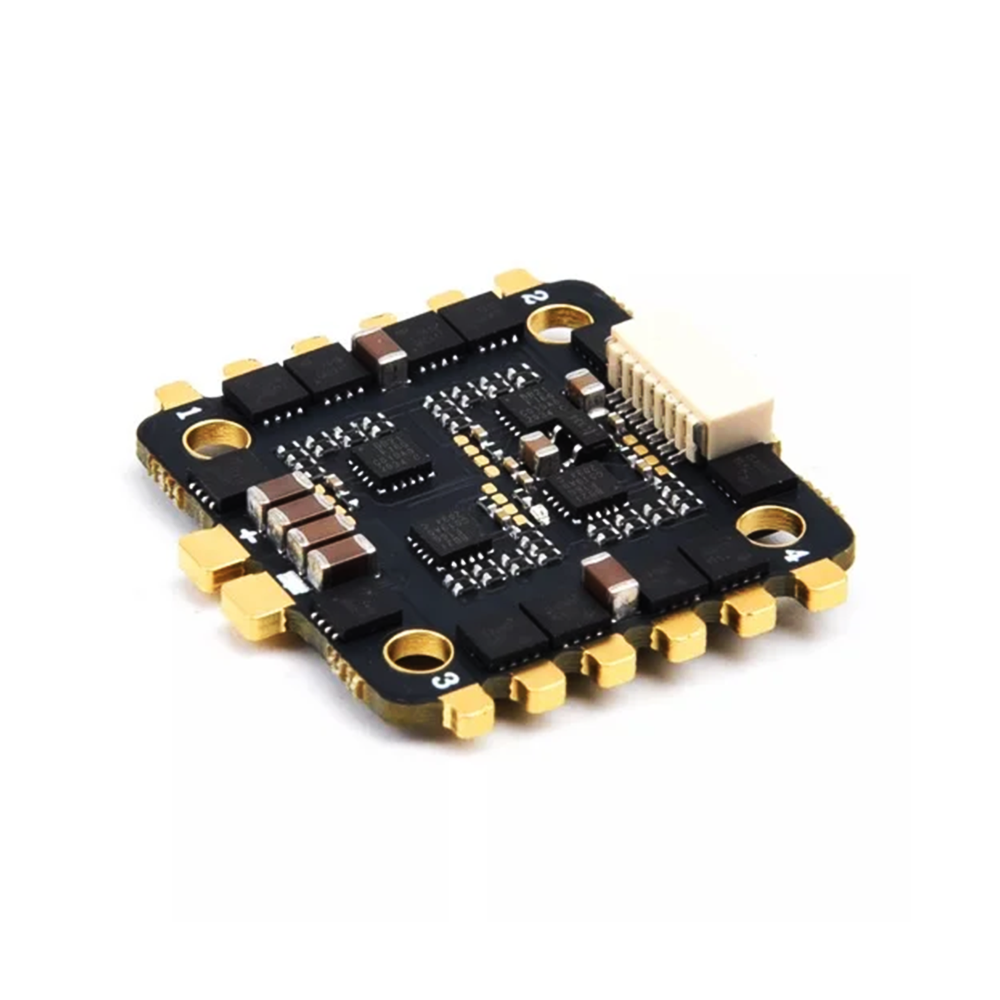

- 35A BLHeli_S 4-in-1 ESC supports 2-5S LiPo input and DSHOT protocol.
- MPU6500 SPI gyro with 8kHz sampling for vibration-resistant, precise flight stabilization.
- BMP280 barometer provides accurate altitude hold and climb rate data.
- Compact, lightweight stack design simplifies wiring and installation in mini quad frames.
Out of stock
This F7 MINI V2.0 and 35A 4-in-1 ESC flytower combines a high-performance flight controller with a robust electronic speed controller in a single, streamlined package. The STM32F405-based FC delivers the processing headroom needed for advanced filtering and features like dynamic notch filtering in Betaflight, while the integrated MPU6500 IMU ensures reliable sensor data even in high-vibration environments.
The accompanying 35A BLHeli_S ESC is engineered for smooth, responsive motor control across a 2-5S voltage range, making it suitable for both lightweight 3-inch and powerful 5-inch FPV builds. The stack’s compact footprint and direct solder pad layout minimize wiring complexity, promoting a clean build with reduced electromagnetic interference.
Additional Information
| Weight | 0.03 kg |
|---|---|
| Dimensions | 7 × 7 × 3 cm |
