BotLab Dynamics BotWing F405 Flight Controller & BotDrive 4-in-1 50A ESC Combo
BotLab Dynamics BotWing F405 Flight Controller & BotDrive 4-in-1 50A ESC Combo - Image 2
BotLab Dynamics BotWing F405 Flight Controller & BotDrive 4-in-1 50A ESC Combo - Image 3
BotLab Dynamics BotWing F405 Flight Controller & BotDrive 4-in-1 50A ESC Combo - Image 4
SKU: DRFC-1848
📋 GST Invoice Available

BotLab Dynamics BotWing F405 Flight Controller & BotDrive 4-in-1 50A ESC Combo

₹7,199.00 (Inclusive of all taxes)
Out of Stock

The BotLab Dynamics BotStack F405 FC and BotDrive 50A ESC combo integrates a high-performance STM32F405 flight controller with a 4-in-1 50A BLHeli_S ESC. Designed for solderless, plug-and-play installation on 30.5×30.5mm mounts, it supports 3S–6S LiPo batteries and is compatible with Betaflight, iNav, and Mission Planner firmware for FPV racing, freestyle, and cinematic drone builds.

Features

  • High-performance STM32F405 MCU paired with an ICM42688P gyro for precise, responsive flight control.
  • 4-in-1 BotDrive ESC delivers 50A continuous (60A burst) per motor, supporting 2S–6S LiPo batteries.
  • Solderless, plug-and-play design with extensive cabling for rapid, clean integration on 30.5×30.5mm mounts.
  • Full firmware compatibility with Betaflight, iNav, and Mission Planner, featuring built-in OSD, 32MB Blackbox, and DJI Air Unit support.
  • Comprehensive connectivity with six UARTs, dedicated pads for GPS, VTX, camera, LED strips, and ESC telemetry.

Out of stock

Description

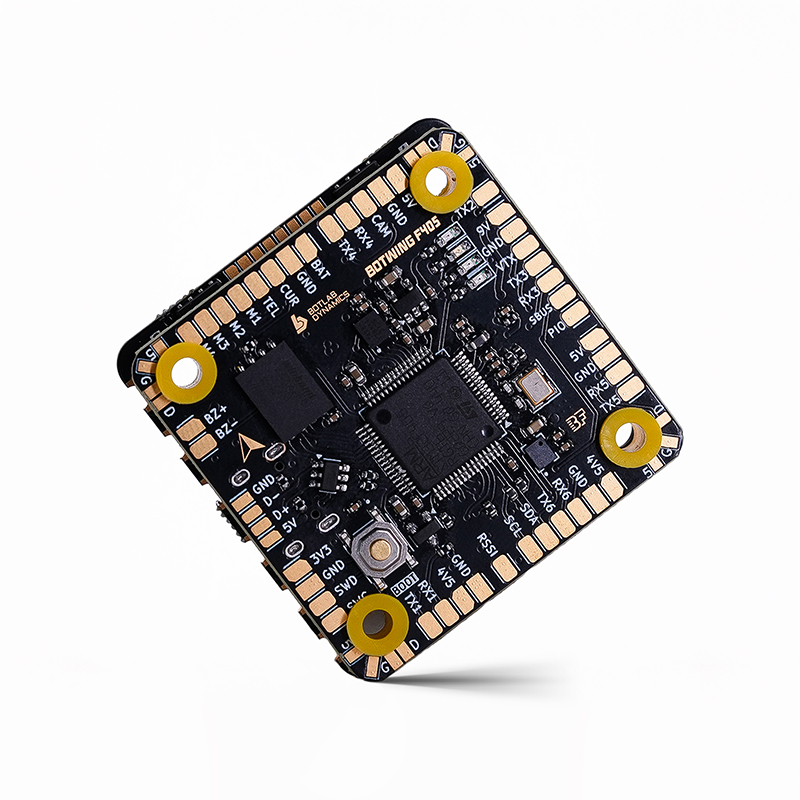

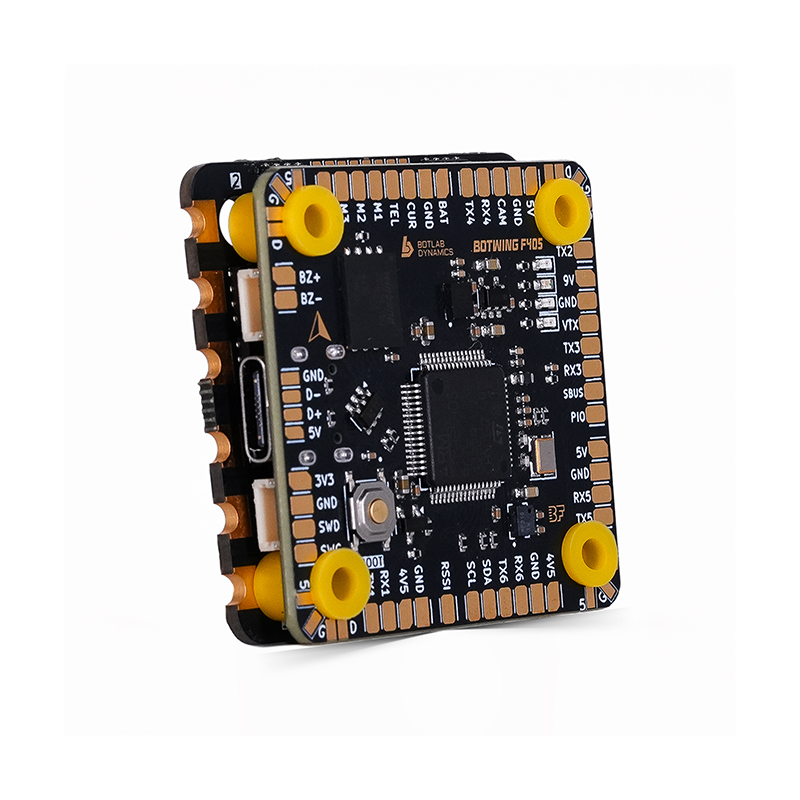

The BotStack F405 and BotDrive 50A ESC combo is engineered for pilots seeking a robust, high-performance control stack with minimal assembly time. The flight controller leverages the powerful STM32F405 processor and a low-noise ICM42688P IMU to deliver stable, low-latency control suitable for aggressive FPV maneuvers and smooth cinematic flight. Its architecture is optimized for modern digital FPV systems, featuring a dedicated 6-pin plug-and-play port for DJI Air Units.

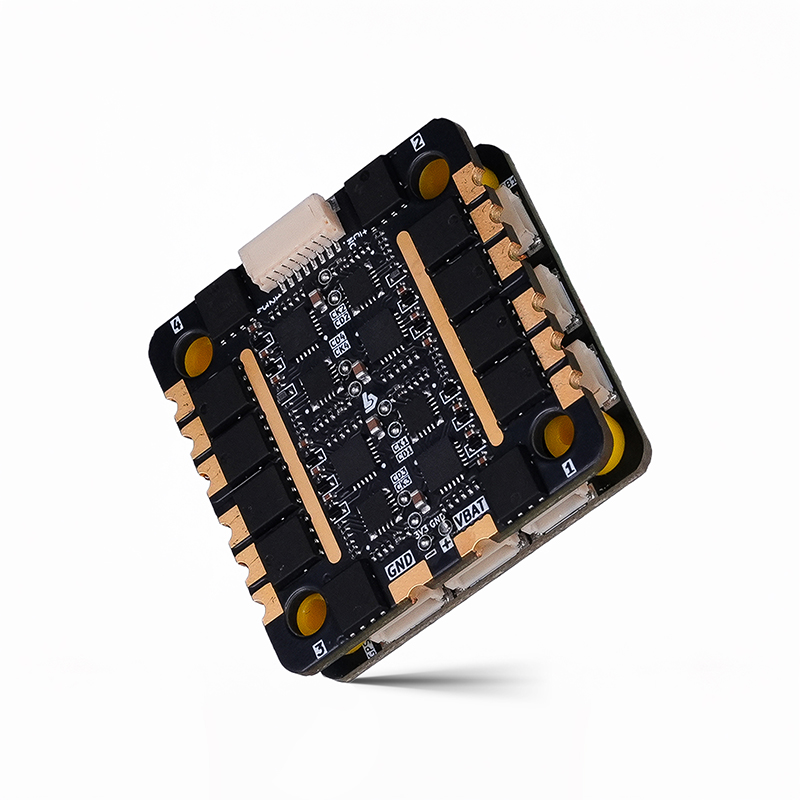

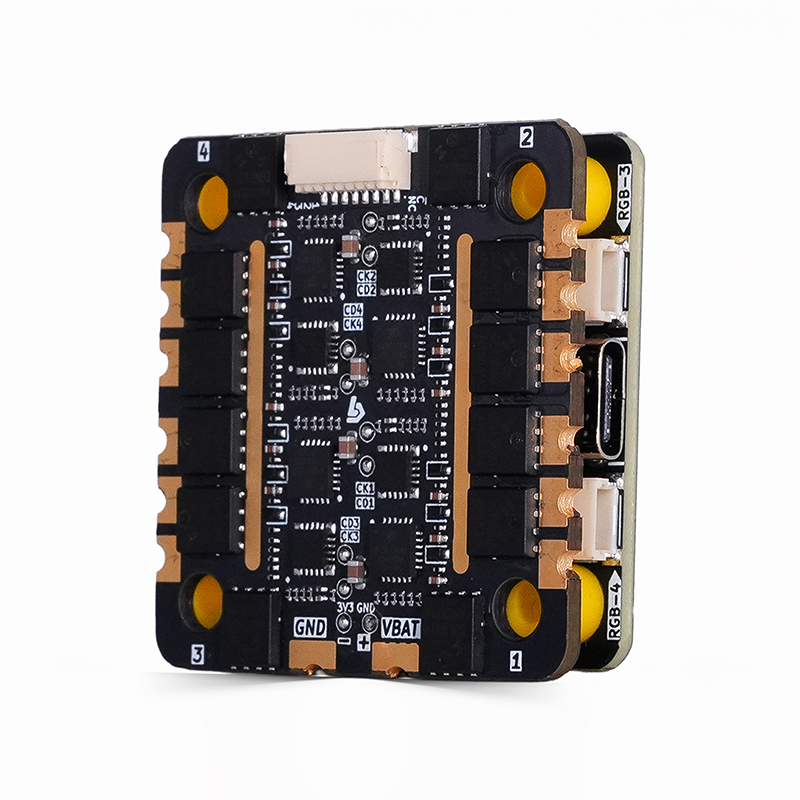

The integrated BotDrive 4-in-1 ESC utilizes high-quality FD6288Q MOSFET drivers and an EFM8BB21F16G MCU running BLHeli_S firmware, ensuring reliable, high-current delivery and smooth throttle response across the full 2S–6S voltage range. The stack’s unified 40x40mm/40x41mm footprint and included anti-vibration grommets simplify mounting and dampen high-frequency noise, contributing to cleaner flight performance and reduced gyro interference.

Key Features

  • Professional-Grade Flight Controller: STM32F405 MCU with ICM42688P gyro provides high-speed processing and precise inertial measurement for responsive, stable flight.
  • High-Current ESC Power: 4-in-1 BotDrive ESC handles 50A continuous (60A burst) per motor, engineered for demanding 6S freestyle and racing setups.
  • Solderless Integration: Comprehensive cable set enables plug-and-play connections for the FC, ESC, DJI Air Unit, GPS, VTX, camera, and receiver, drastically reducing build time.
  • Extensive Firmware & Protocol Support: Compatible with Betaflight, iNav, and Mission Planner; supports DSHOT300/600, PWM, and features built-in OSD (AT7456E) and 32MB Blackbox logging.
  • Robust Power Management: Supports 2S–6S LiPo input, with dedicated 5V, 4.5V, 9V, and 3.3V regulated pads for peripherals, plus an included 1000uF capacitor for clean power delivery.
  • Advanced Connectivity: Six configurable UARTs, dedicated i2C pads, RSSI input, LED strip support, and ESC telemetry facilitate complex builds and expansion.
  • Optimized Physical Design: 30.5x30.5mm mounting pattern with anti-vibration silicone grommets isolates the stack from frame resonance, improving flight characteristics.

Applications

  • 5-inch and 6-inch FPV racing drones requiring high-current 4-in-1 ESCs and low-latency flight control for competitive gate racing.
  • Freestyle FPV quads built for aggressive acrobatics and high-power 6S setups, benefiting from the stable gyro and robust 50A ESCs.
  • Cinematic and long-range drones utilizing iNav or Mission Planner for autonomous flight, leveraging the GPS UART and extensive telemetry capabilities.
  • DIY drone projects and experimental builds where solderless, plug-and-play connectivity simplifies prototyping and component integration.
  • Digital HD FPV builds integrating DJI Air Units or similar digital VTX systems via the dedicated plug-and-play port and regulated power pads.

Technical Specifications

Item TypeFlight Controller & ESC Stack
Flight Controller MCUSTM32F405
Flight Controller IMUICM42688P
ESC MCUEFM8BB21F16G (BLHeli_S)
ESC MOSFET DriverFD6288Q
Continuous Current per ESC50A
Burst Current per ESC60A
Input Voltage (ESC)2S–6S LiPo
Input Voltage (FC)3S–6S LiPo
ESC ProtocolsDSHOT300, DSHOT600, PWM
Built-in OSDAT7456E
Blackbox Storage32MB Winbond
UART Ports6
DJI Air Unit Port6-pin Plug-and-Play
Mounting Pattern30.5 x 30.5 mm
FC Dimensions40 x 40 mm
ESC Dimensions40 x 41 mm
FC Weight9 g
Total Package Weight0.349 kg
Firmware SupportBetaflight, iNav, Mission Planner
USB InterfaceType-C

Frequently Asked Questions

What firmware is this flight controller and ESC combo compatible with?

The BotWing F405 flight controller is compatible with Betaflight, iNav, and Mission Planner firmware, with the target name BOTWINGF405. The BotDrive 4-in-1 ESC runs BLHeli_S firmware and is configurable via the BLHeli Suite or BLHeli Configurator tools, supporting DSHOT300, DSHOT600, and PWM protocols.

What is the maximum input voltage and current rating for this stack?

The BotDrive 4-in-1 ESC supports 2S to 6S LiPo input voltage (approximately 8.4V to 25.2V) and is rated for 50 amps continuous current per motor, with a 60-amp burst capability. The flight controller itself is rated for 3S to 6S LiPo input via its power connection from the ESC.

Does this stack support a DJI Digital FPV Air Unit?

Yes, the BotWing F405 flight controller includes a dedicated 6-pin plug-and-play port designed for direct connection to a DJI Air Unit, providing both power and data connectivity without requiring separate wiring or voltage regulation.

What mounting pattern and installation method does this combo use?

Both the flight controller and ESC share a standard 30.5x30.5mm mounting pattern with M3 screw holes. The stack is designed for solderless, plug-and-play installation using the extensive set of included connector cables, and it comes with anti-vibration silicone grommets to isolate the components from frame resonance.

What telemetry and logging features are available?

The flight controller provides ESC telemetry via UART2 and features a built-in 32MB Winbond chip for Blackbox data logging. It also includes a comprehensive onboard OSD (AT7456E) for real-time flight data overlay and supports current sensing from the ESC for battery consumption monitoring.

Package Includes

  • 1 x BotWing F405 Flight Controller
  • 1 x BotDrive 50A 4-in-1 ESC
  • 1 x USB Protector
  • 9 x M3 Anti-Vibration Silicone Grommet Inserts (5 for FC, 4 for ESC)
  • Assorted Connector Cables: 5 x 4-pin (150 & 180 mm), 2 x 8-pin (50 & 30 mm), 2 x 6-pin (60 & 80 mm), 1 x 5-pin (60 mm)
  • 1 x 35V 1000uF Low ESR Capacitor
  • 1 x XT60 Power Cable (70mm)
  • 1 x JST-SH 1.0mm 8-pin Cable (30mm, for FC-ESC connection)

Additional Information

Weight 0.349 kg
Dimensions 11 × 24 × 8 cm
