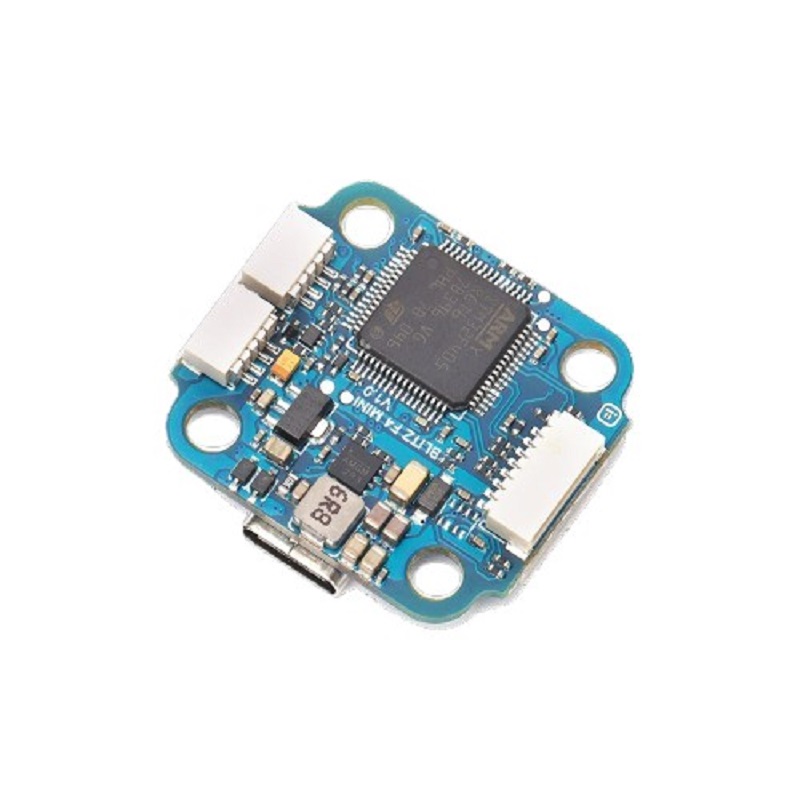

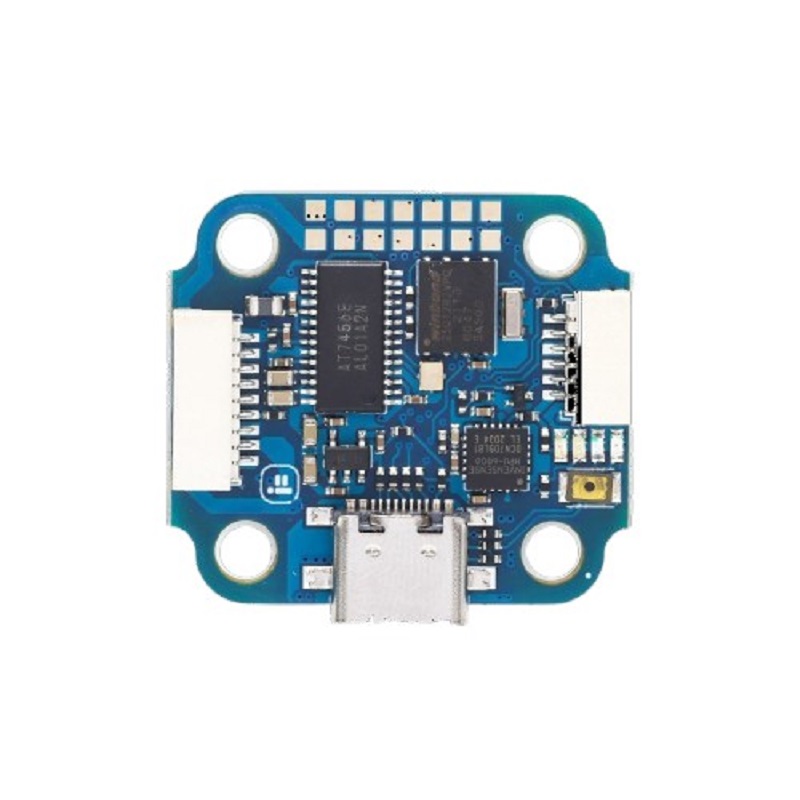

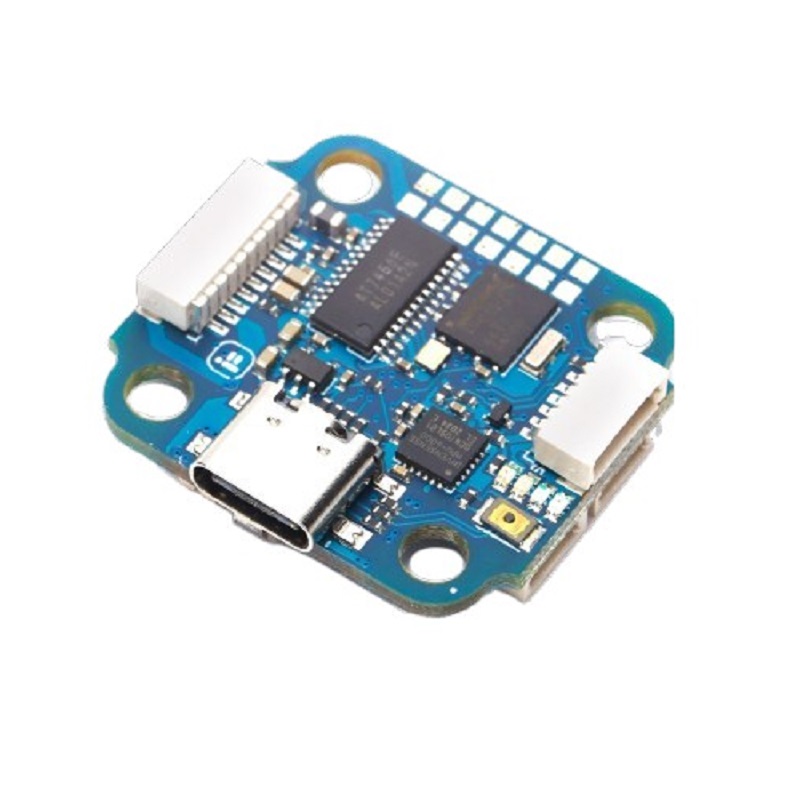

iFlight BLITZ Mini F4 Flight Controller - 20x20mm, 2S-6S
The iFlight BLITZ Mini F4 Flight Controller is a compact 20x20mm board built around an STM32F405 MCU and MPU6000 gyro, designed for lightweight FPV drones. It supports 2S-6S LiPo input, features a 5V/2A BEC, and includes Betaflight OSD for on-screen telemetry and configuration.
Features
- STM32F405 MCU with 16MB flash for robust Betaflight processing.
- MPU6000 gyroscope ensures precise and stable flight control.
- Compact 20x20mm mounting pattern (30.5x27mm board) for micro and racing drone builds.
- Wide 2S-6S LiPo input voltage range with integrated 5V/2A BEC.
- Built-in Betaflight OSD for real-time telemetry overlay and configuration.
Out of stock
The BLITZ Mini F4 Flight Controller from iFlight delivers a high-performance, space-efficient solution for FPV drone builds. Its STM32F405 processor provides ample computational power for advanced flight algorithms, while the MPU6000 gyro offers reliable, low-noise attitude sensing critical for acrobatic maneuvers and stable flight.
Engineered for durability, the board features an optimized pad layout and improved circuitry to minimize electrical noise and enhance signal integrity. Multiple UART ports allow for flexible integration of peripherals such as ExpressLRS receivers, GPS modules, and telemetry systems, making it suitable for both racing and long-range applications.
Additional Information
| Weight | 0.005 kg |
|---|---|
| Dimensions | 3.05 × 2.7 cm |
