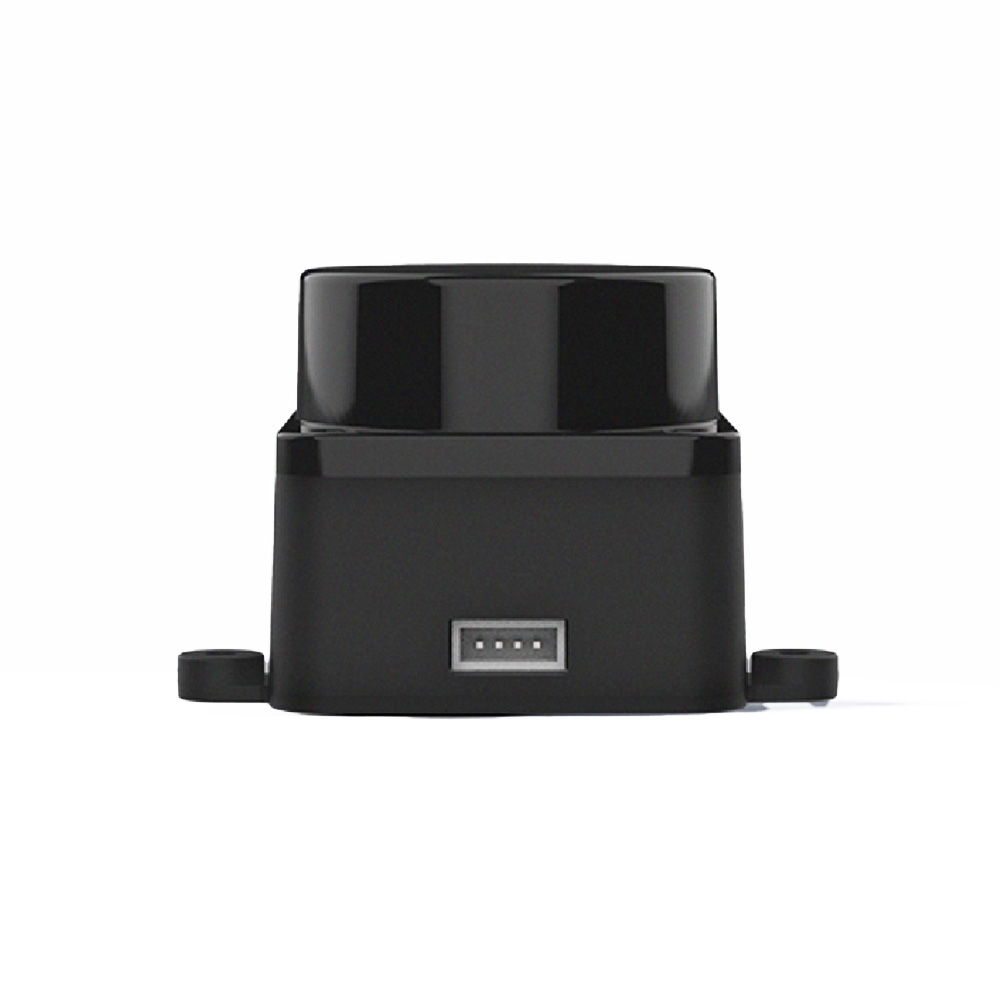

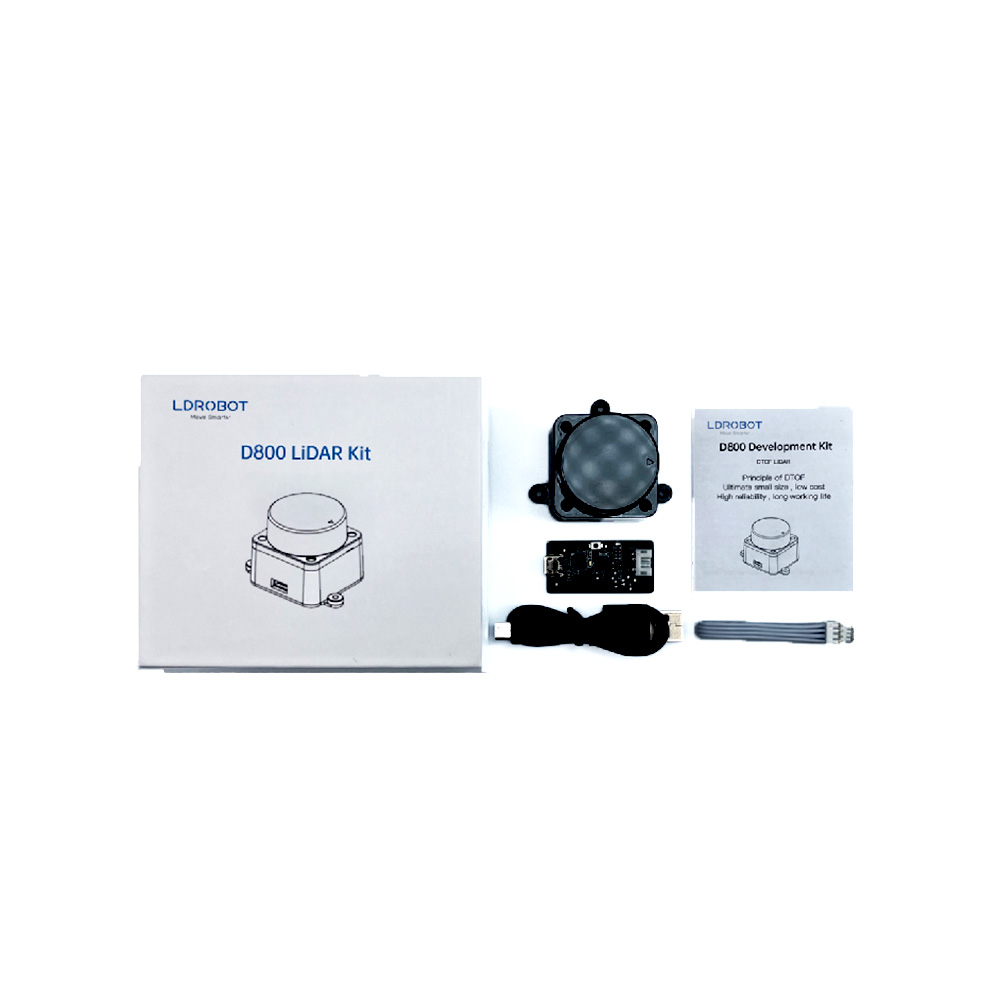

LDRobot D800 LiDAR Kit - 0.03-25m Range, 360° FOV, 10Hz Scan
The LDRobot D800 is a 360° scanning LiDAR sensor kit offering high-precision distance measurement from 0.03 to 25 meters, designed for integration into robotics, drones, and automated navigation systems. It features a 10Hz scanning frequency, ±15mm accuracy within 2 meters, and robust anti-glare performance for reliable operation in diverse lighting conditions.
Features
- High-Precision 360° Scanning LiDAR with 0.03-25m measurement range.
- ±15mm ranging accuracy within 0.03-2 meters for precise obstacle detection.
- 10Hz scanning frequency and 21,600Hz ranging frequency for dynamic environment mapping.
- High ambient light immunity up to 60,000 Lux for reliable indoor/outdoor use.
- Compact, durable design with a 10,000-hour lifespan coaxial brushless motor.
Out of stock
The LDRobot D800 LiDAR Kit utilizes time-of-flight (ToF) laser ranging technology to generate a real-time 2D point cloud map of its surroundings. Its 360° field of view provides comprehensive environmental perception, critical for simultaneous localization and mapping (SLAM) algorithms in autonomous systems. The sensor’s high-frequency ranging and robust signal processing ensure stable data output even in challenging lighting conditions.
Engineered for continuous operation, the D800 features a reliable coaxial brushless motor drive mechanism, contributing to its extended operational lifespan. The unit complies with FDA Class I laser safety standards, making it suitable for use in environments shared with humans and pets. Its compact form factor facilitates seamless integration into mobile robotic platforms, AGVs, and service robots.
Additional Information
| Weight | 0.11 kg |
|---|---|
| Dimensions | 10 × 12 × 6 cm |
