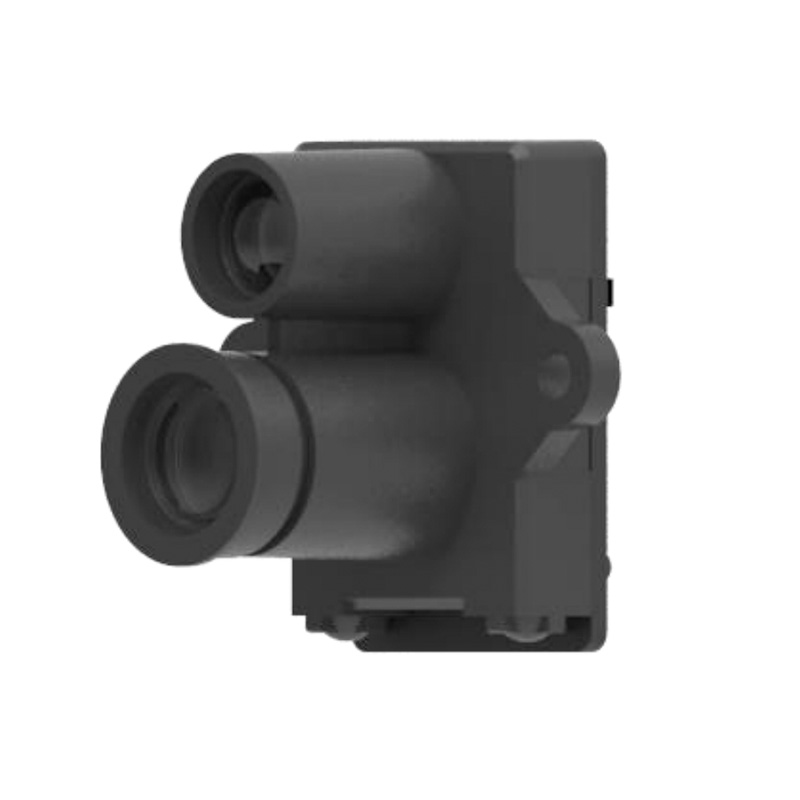

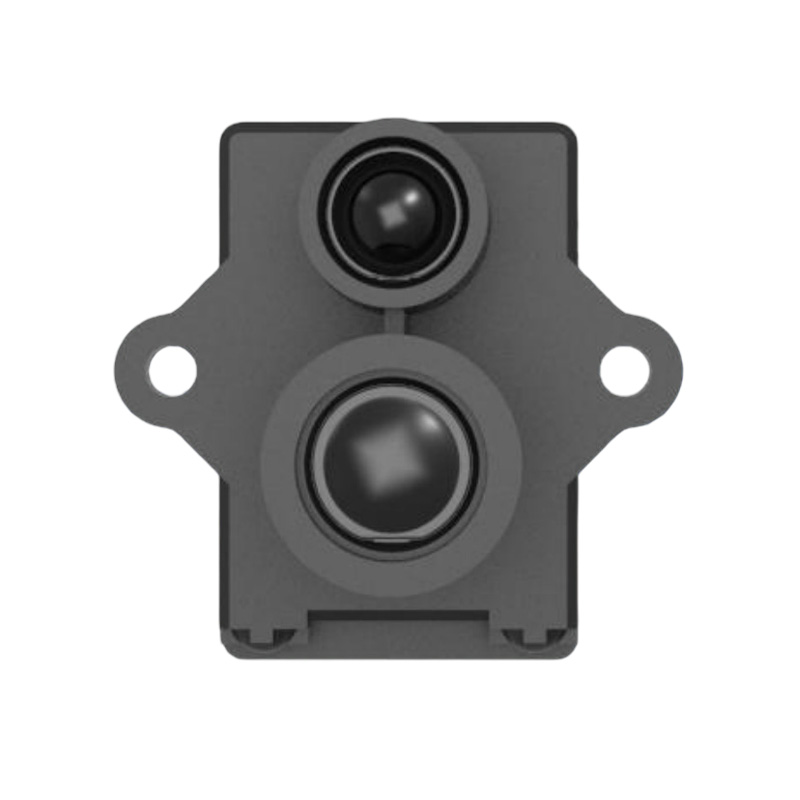

Benewake TF-UW500 Underwater Single Point LiDAR Sensor - <0.5° FOV, 20Hz, 5V I2C
The Benewake TF-UW500 is a high-precision, single-point underwater LiDAR sensor utilizing Time-of-Flight (ToF) technology for accurate distance measurement up to 5 meters. It operates on a 5V DC supply and communicates via I2C, making it compatible with microcontrollers like Arduino, Raspberry Pi, and ESP32 for submersible robotics and depth-sensing applications.
Features
- Underwater Time-of-Flight (ToF) LiDAR with a measurement range up to 5 meters.
- High precision with accuracy better than 3cm (0.1-2m range) and 1mm resolution.
- Narrow field of view (<0.5°) for precise single-point targeting in turbid water.
- Robust 100kLux ambient light immunity for stable performance in bright conditions.
- 5V DC power with I2C digital interface for easy integration with common development boards.
Out of stock
The Benewake TF-UW500 is engineered for demanding underwater environments, employing a Class 1 laser-safe ToF principle to deliver reliable distance data. Its compact, sealed design is built to withstand submersible applications, providing stable readings unaffected by high ambient light up to 100,000 lux, which is critical for near-surface operations.
With a fast 20Hz frame rate and low power consumption (<5V × 100mA), this sensor is ideal for dynamic, battery-powered underwater systems. The integrated I2C communication protocol simplifies data retrieval, allowing for seamless integration into autonomous underwater vehicles (AUVs), remotely operated vehicles (ROVs), and industrial water level monitoring systems.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 2.4 × 1.6 cm |
