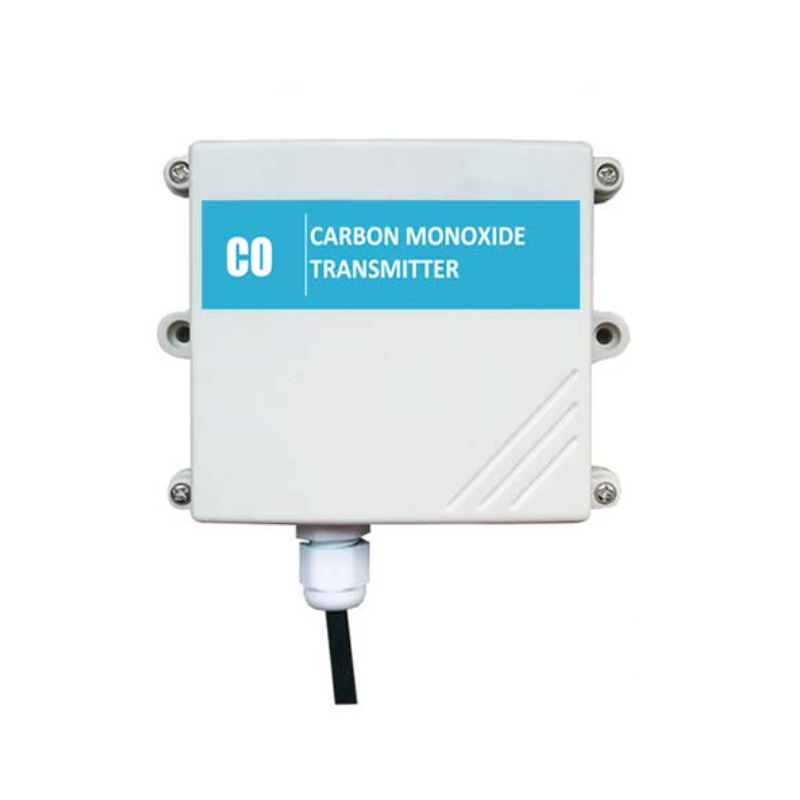

JXBS-3001-CO-RS-4-JC CO Gas Sensor 1-1000 ppm - RS485 Modbus Wall Mount
The JXBS-3001-CO-RS-4-JC is a wall-mounted carbon monoxide (CO) gas sensor module featuring an RS485 Modbus interface for industrial and environmental monitoring. It provides precise 0-1000 ppm detection and is designed for integration with PLCs, SCADA systems, and IoT gateways using a standard 12-24V DC supply.
Features
- High-precision CO detection from 0 to 1000 ppm with ≤15-second response time.
- RS485 Modbus communication interface for stable, long-distance data transmission.
- Wide operating voltage range of 12-24V DC with low power consumption (≤0.15W).
- Rugged design for harsh environments (-30°C to 50°C, 0-100% RH).
- Compact, wall-mountable enclosure for easy installation in industrial and agricultural settings.
Out of stock
The JXBS-3001-CO-RS-4-JC utilizes an electrochemical sensing element to deliver accurate and stable carbon monoxide concentration readings. Its signal conditioning circuitry ensures reliable performance with minimal drift, making it suitable for long-term monitoring applications. The sensor’s output is transmitted via a robust RS485 bus, supporting the Modbus RTU protocol for seamless integration into industrial automation networks.
Engineered for durability, the sensor housing protects the internal components from dust and moisture, supporting operation across a wide temperature and humidity range. This design ensures consistent functionality in challenging environments such as agricultural storage facilities, livestock barns, manufacturing plants, and utility rooms, providing critical safety monitoring.
Additional Information
| Weight | 0.35 kg |
|---|---|
| Dimensions | 25 × 20 cm |
