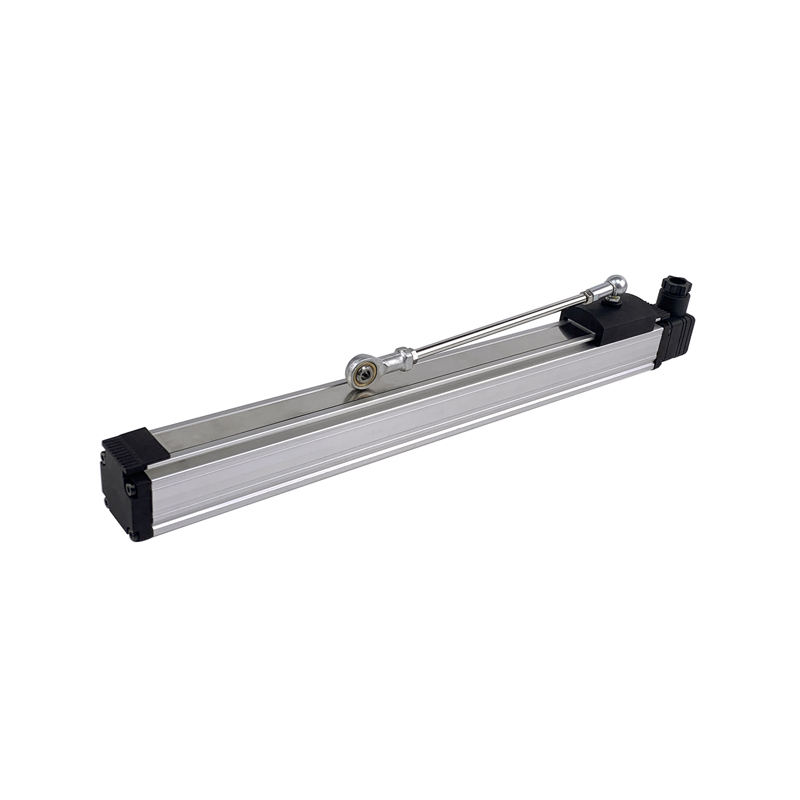

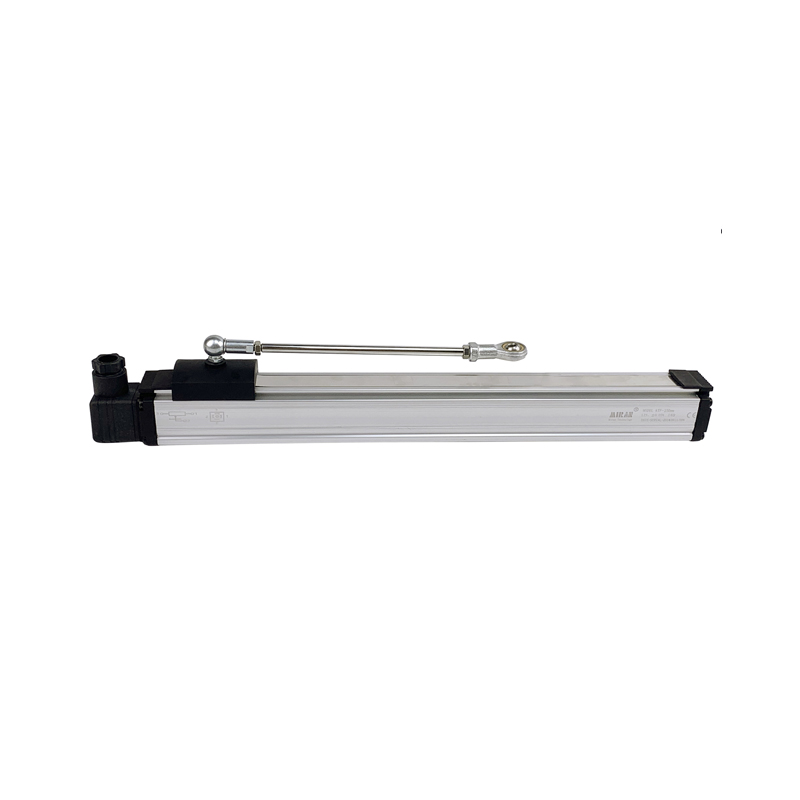

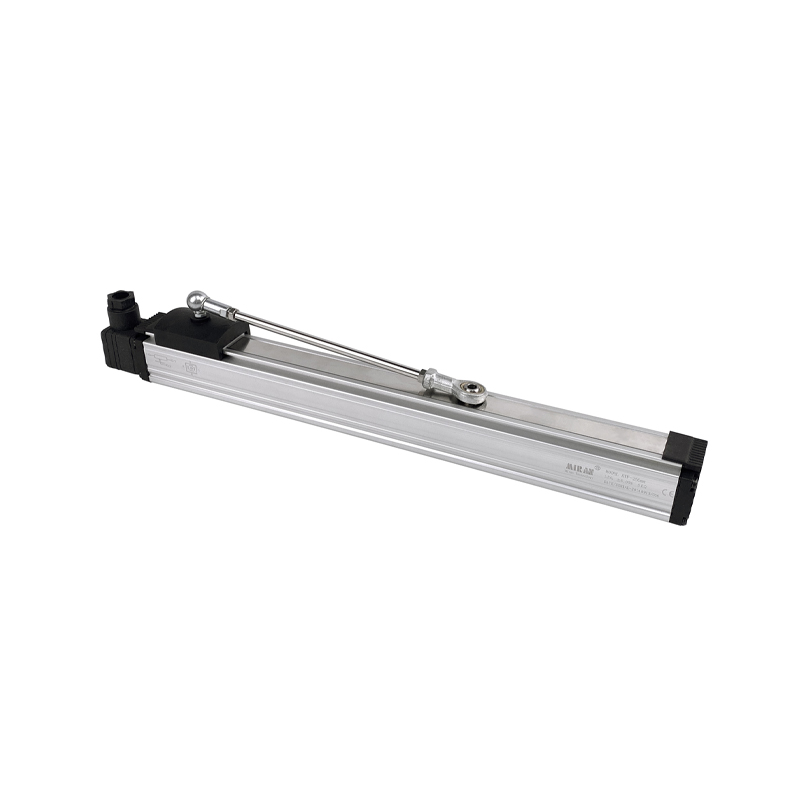

MIRAN KTF1-550MM Slider Type Linear Displacement Sensor - Resistance Output, 550mm Stroke
The MIRAN KTF1-550MM is a slider-type linear displacement sensor providing a direct resistance output for precise position feedback in industrial automation, machinery, and control systems. It is compatible with optional signal converters for 0-5V, 0-10V, or 4-20mA industrial interface standards.
Features
- 550mm stroke length conductive plastic potentiometer for linear position sensing
- Default analog resistance output (0–100% of supply voltage)
- Supports optional conversion to 0-5V, 0-10V, or 4-20mA industrial signals
- Slider-type mechanical structure with linear-guide and bracket mount
- 28 VDC maximum supply voltage for robust industrial operation
Out of stock
The MIRAN KTF1-550MM Slider Type Linear Displacement Sensor operates on the conductive plastic resistive potentiometer principle, translating linear mechanical movement into a precise, proportional electrical resistance. This robust design ensures smooth, low-friction slider action and delivers a stable DC output signal directly correlated to position.
Engineered for integration into industrial control and measurement systems, the sensor provides reliable position feedback for automated machinery. Its output can be directly interfaced with PLC analog inputs or, using optional signal conditioning modules, converted to standard industrial voltage or current loop signals for seamless integration into broader automation networks.
Additional Information
| Weight | 0.888 kg |
|---|---|
| Dimensions | 68 × 5.1 cm |
