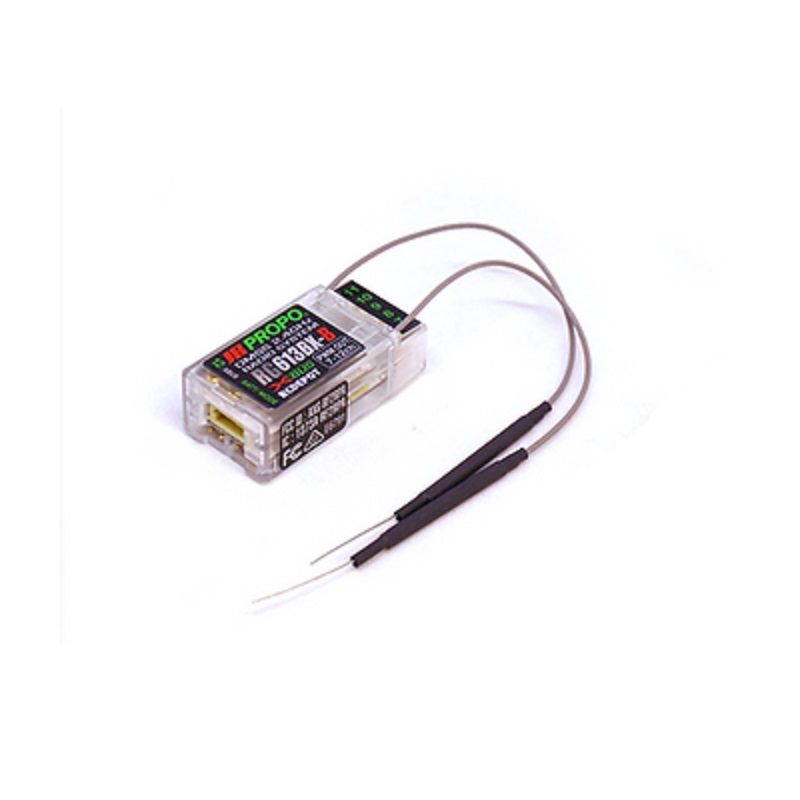

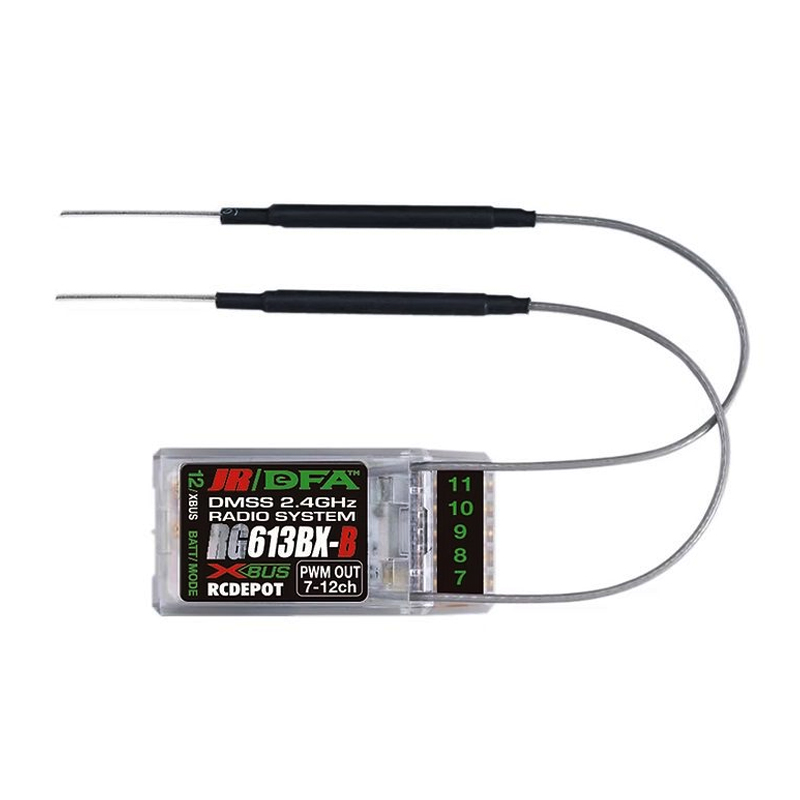

JR Propo RG613BX-B(7ch-12ch) 2K Receiver - Glassy White
The JR Propo RG613BX-B is a 2.4GHz DMSS receiver module that expands the RG613BX (R6A) base receiver from 6 to 12 channels via XBus, providing extended control for complex multirotor and fixed-wing aircraft. It operates on 4.5-8.5V and features antenna diversity for robust signal reception.
Features
- Channel Expansion Module: Converts the 6-channel RG613BX (R6A) receiver into a full 12-channel system via XBus protocol.
- DMSS 2.4GHz System: Provides reliable, low-latency communication with JR Propo DMSS transmitters.
- Wide Voltage Range: Operates from 4.5V to 8.5V, compatible with 1S to 2S LiPo direct power or regulated BEC outputs.
- Antenna Diversity: Features a dual-antenna design (coaxial 105mm + 25mm) for improved signal reception and reduced dropouts.
- Compact & Lightweight: Measures 20.5mm x 14.5mm and weighs only 12g for easy integration into tight airframes.
Out of stock
The JR Propo RG613BX-B is engineered as a dedicated channel expansion module, leveraging the XBus serial protocol to unlock the full 12-channel capability of compatible JR Propo DMSS systems. When paired with the base RG613BX (R6A) receiver, it provides pilots with the extended servo and switch assignments required for advanced aircraft with complex gimbal, landing gear, or payload control needs.
Built with a durable hard case, the module ensures physical protection in demanding flight environments. Its antenna diversity system, combining a 105mm coaxial portion with a 25mm active element, is optimized for spatial signal reception, maintaining a stable link even during aggressive maneuvers. The unit’s compact footprint and minimal weight ensure it adds negligible mass to the overall build.
Additional Information
| Weight | 0.012 kg |
|---|---|
| Dimensions | 1.45 × 2.05 cm |
