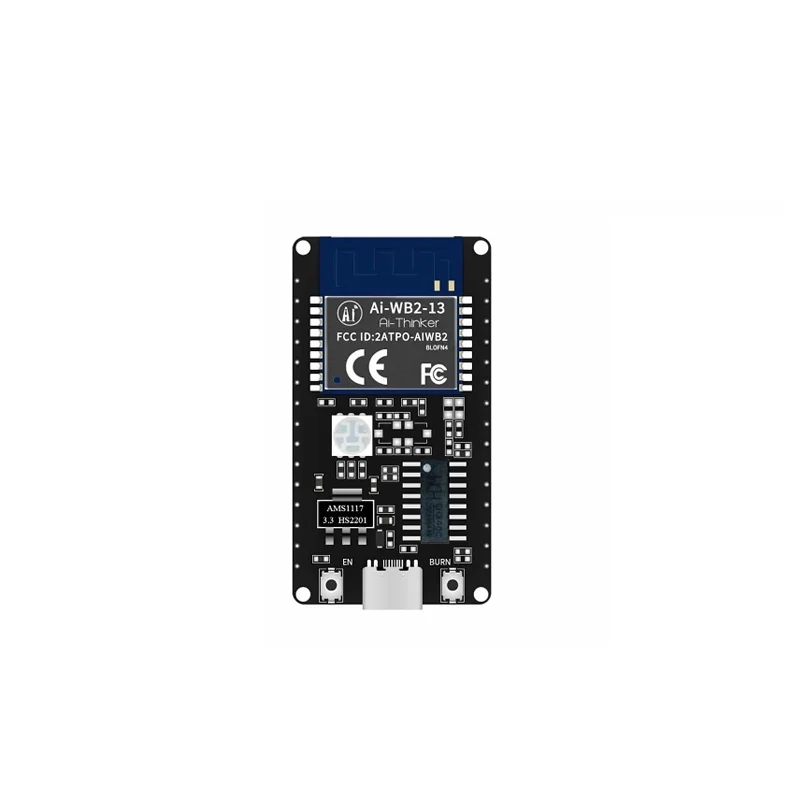

AI-Thinker Ai-WB2-13 Wi-Fi & BLE Development Kit
The AI-Thinker Ai-WB2-13 Kit is a compact development board featuring the BL602 chip, supporting Wi-Fi 802.11b/g/n and BLE 5.0 protocols. It offers a 32-bit RISC CPU, 276KB RAM, and diverse peripheral interfaces for robust IoT applications.
Features
- Integrated BL602 chip with 32-bit RISC CPU and 276KB RAM for efficient processing.
- Dual-mode wireless connectivity supporting Wi-Fi 802.11b/g/n and BLE 5.0 protocols with Bluetooth Mesh.
- Comprehensive peripheral support including SDIO, SPI, UART, ADC, DAC, PWM, and GPIO for versatile interfacing.
- Optimized for low power applications, featuring multiple sleep modes with a deep sleep current of 12μA.
- Secure boot and encryption engines (AES 128/192/256, SHA) for enhanced data integrity and device security.
Out of stock
The AI-Thinker Ai-WB2-13 Kit serves as a robust development platform built around the Ai-WB2-13 module, which integrates the advanced BL602 chip. This core processor features a 32-bit RISC CPU, complemented by 276KB of RAM, providing ample resources for complex embedded applications. It offers seamless dual-band wireless communication, supporting the IEEE 802.11b/g/n Wi-Fi standard and Bluetooth Low Energy 5.0, including Bluetooth Mesh capabilities. The module’s integrated Wi-Fi MAC/BB/RF/PA/LNA design ensures stable and efficient wireless performance across the 2.4GHz frequency band.
Designed for versatile IoT deployments, the Ai-WB2-13 Kit provides an extensive array of peripheral interfaces such as SDIO, SPI, UART, VDC, IR remote, PWM, ADC, DAC, PIR, and GPIO, enabling broad sensor and actuator integration. Its security features are comprehensive, including secure startup with ECC 256 signatures, real-time AES decryption, and support for AES 128, 192, and 256-bit encryption engines, along with SHA hashing and a true random number generator. The kit is optimized for low-power operation, with various sleep modes achieving a deep sleep current of just 12μA, making it suitable for battery-powered applications. Furthermore, it supports universal AT commands for quick configuration and provides Windows and Linux development environments for secondary development.
Additional Information
| Weight | 0.02 kg |
|---|---|

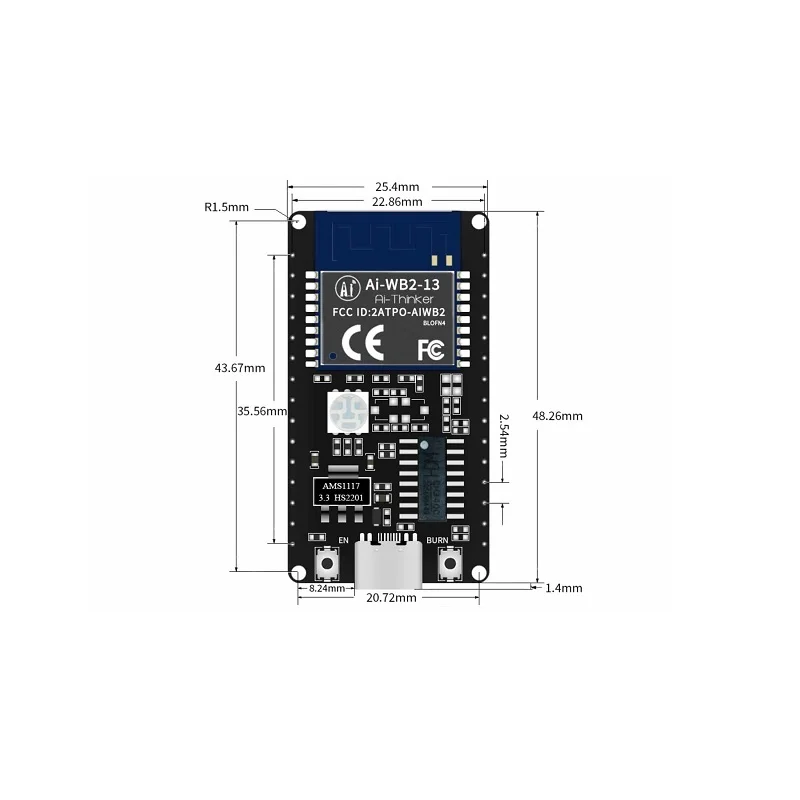

| Dimensions | 7 × 5 × 2 cm |
