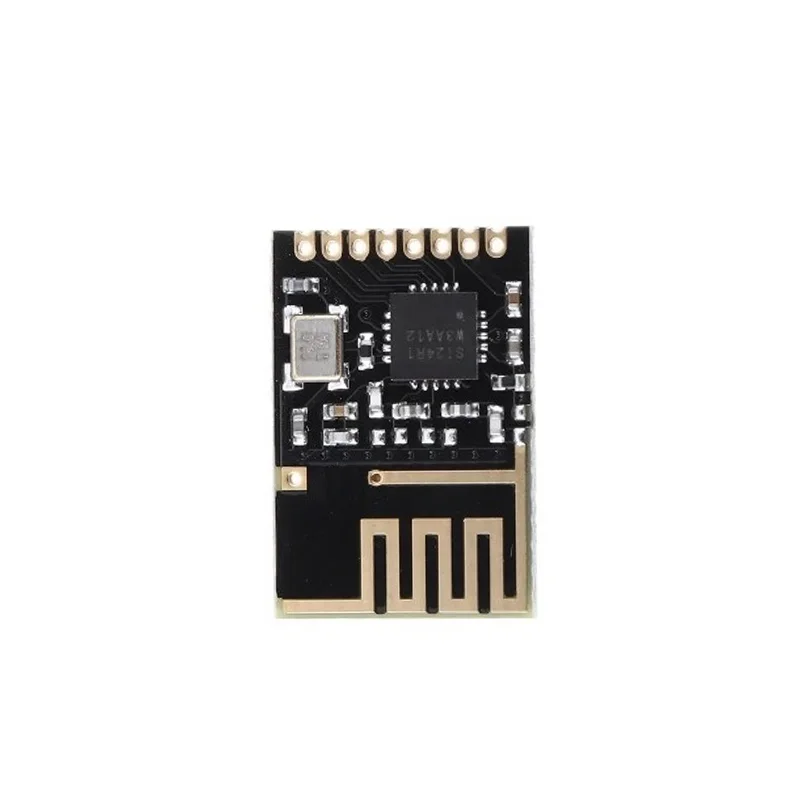

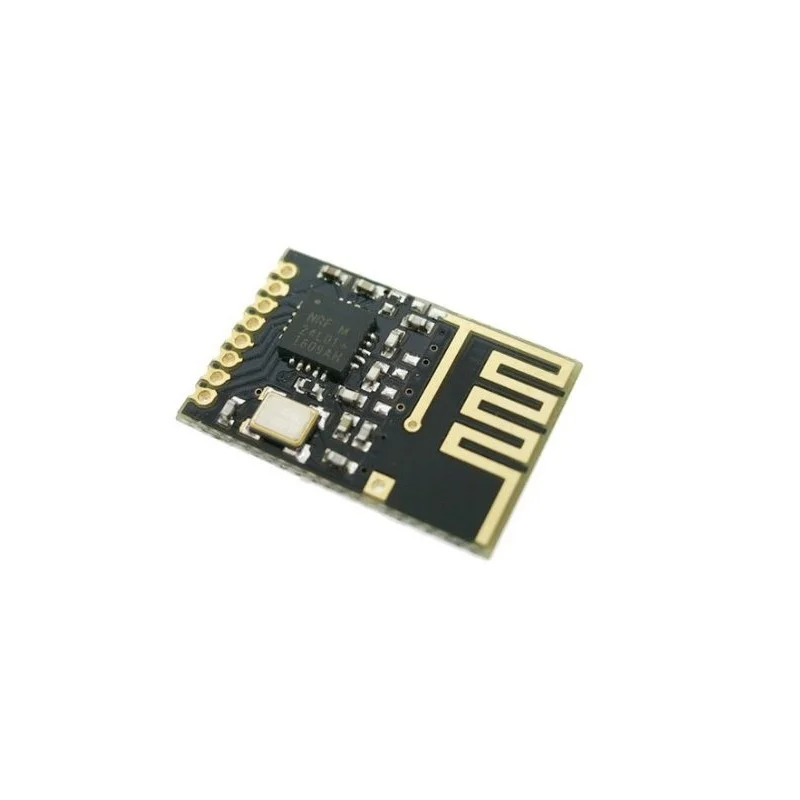

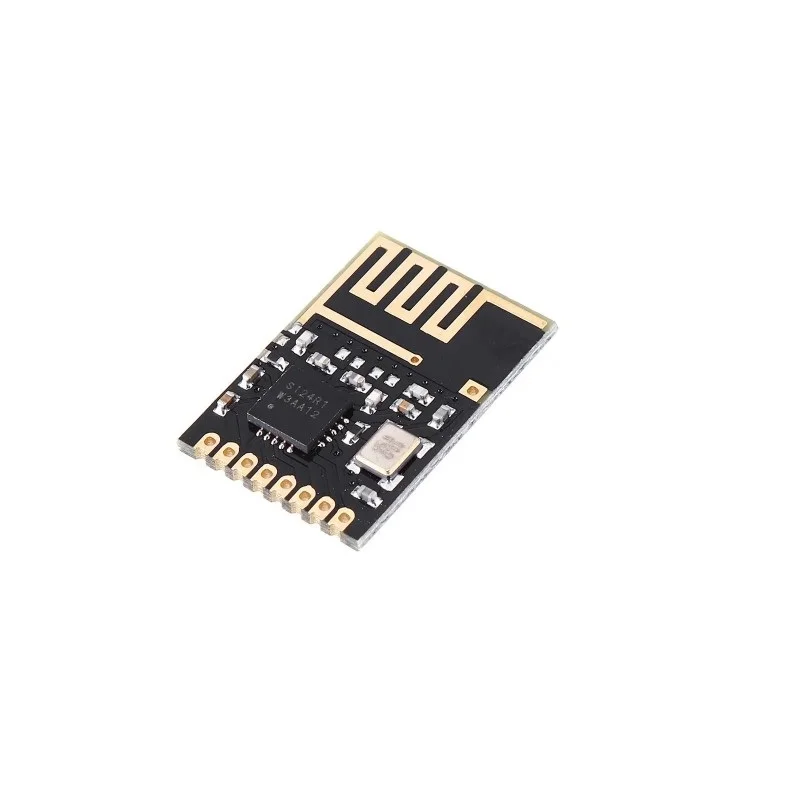

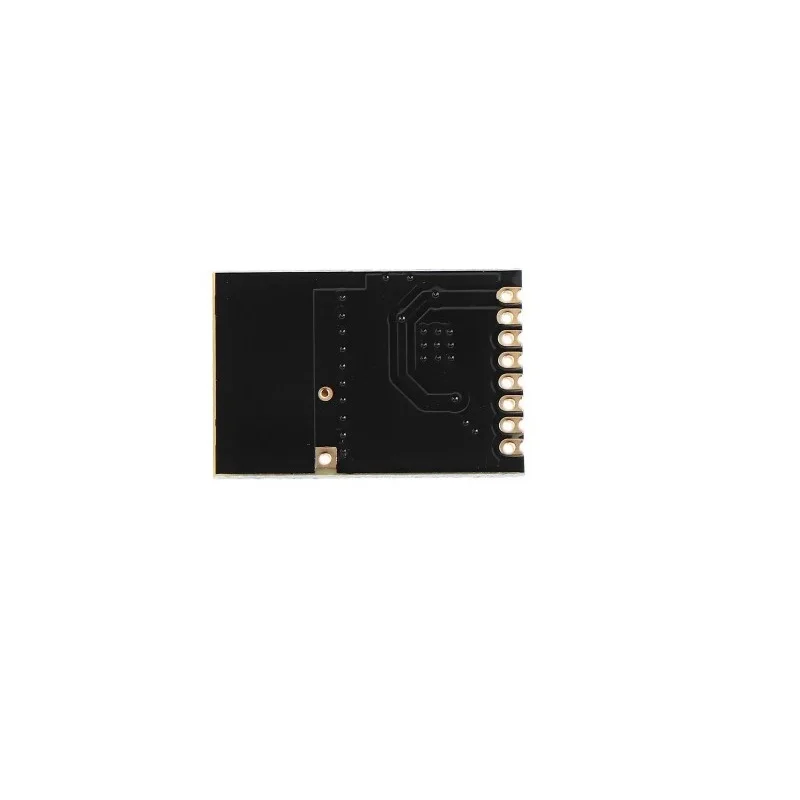

AI-Thinker NF-03 2.4GHz Wireless Transceiver Module w/ Onboard Antenna

The NF-03 module communicates via a standard 4-wire SPI interface (MOSI, MISO, SCLK, CS). You must connect these pins to your host microcontroller's SPI peripheral, ensuring the logic levels match the module's 1.9-3.6V supply. Configuration involves sending register writes over SPI to set parameters like data rate, channel frequency, and transmit power before initiating data transmission or reception sequences.

The data rate is configured by writing specific values to the module's internal configuration registers via the SPI interface. Lower data rates like 250Kbps provide longer range and better sensitivity, while 2Mbps offers higher throughput for speed-critical applications. You must ensure both transmitting and receiving modules are set to the identical data rate and channel frequency for successful communication, typically done during the initialization routine in your firmware.

The NF-03 consumes approximately 25mA during transmission at +7dBm and 15mA while receiving. To minimize power, you can place the module into a low-power sleep or standby mode via SPI commands when not actively communicating, drastically reducing the average current draw. For battery operation, implement a duty-cycling routine where the module wakes up, transmits data quickly, and returns to sleep, leveraging the wide 1.9-3.6V supply range for direct Li-ion cell connection.
