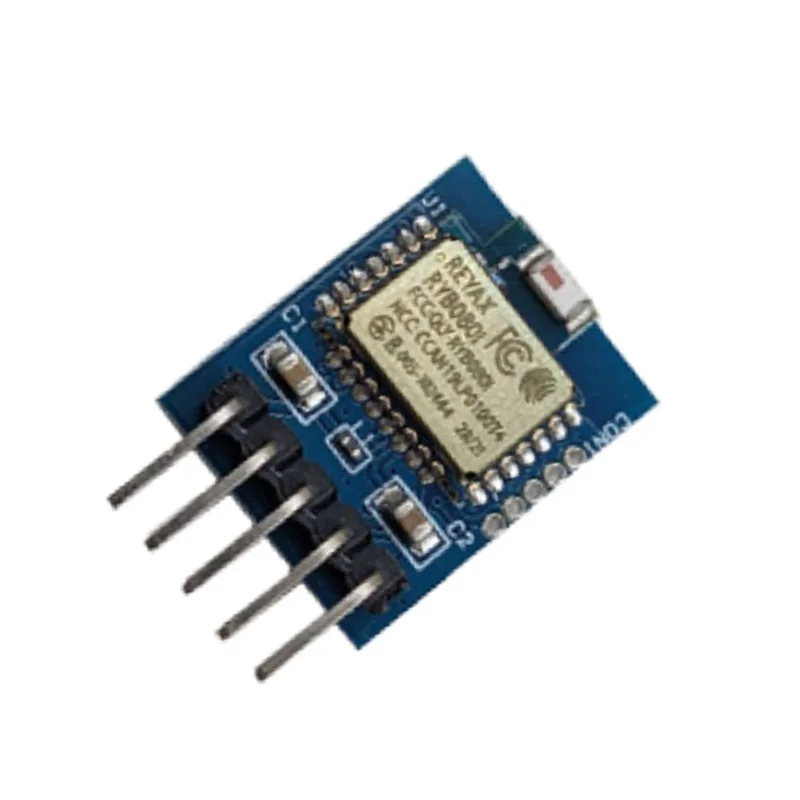

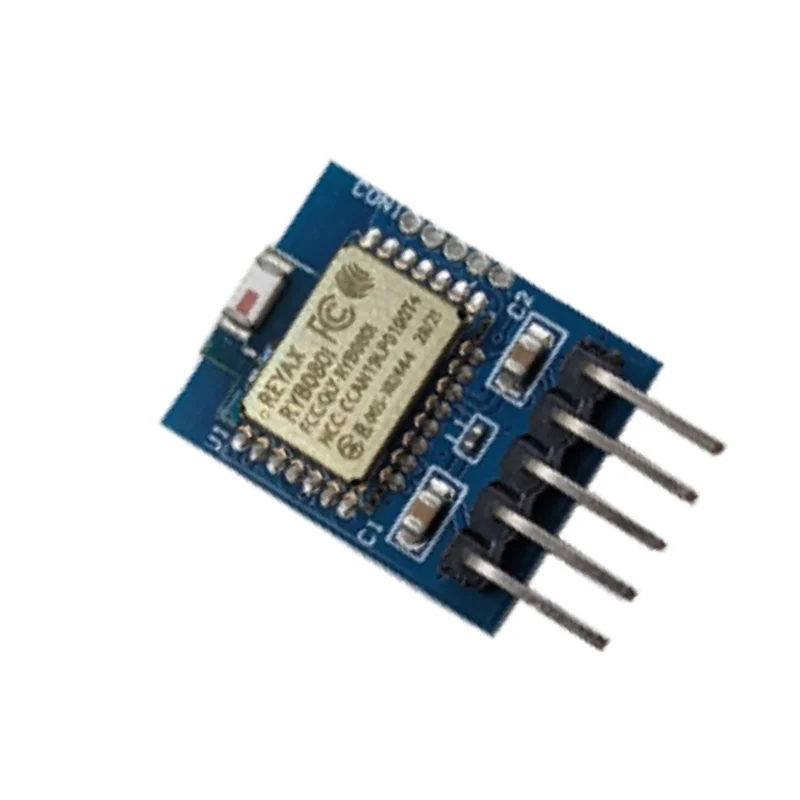

Reyax RYB080I_LITE 2.4GHz Bluetooth 4.2 & 5.0 BLE Module DIP
The Reyax RYB080I_LITE is a compact, certified Bluetooth Low Energy (BLE) module supporting versions 4.2 and 5.0, designed for easy integration via AT commands into IoT devices and smartphone connectivity projects.
Features
- Dual-mode Bluetooth 4.2 & 5.0 Low Energy (BLE) for efficient, modern wireless connectivity.
- Integrated antenna and DIP form factor simplifies PCB design and prototyping.
- Wide operating voltage range from 1.8V to 3.8V, compatible with various battery-powered applications.
- Certified by NCC, FCC, and MIC for compliance in key global markets.
- Simple AT command interface for easy UART-based control from any microcontroller.
Out of stock
The RYB080I_LITE module from Reyax provides a robust foundation for Bluetooth Low Energy applications. Based on the RYB080I chipset, this ‘Lite’ variant integrates power management and pin headers into a ready-to-use DIP breakout board, significantly reducing development time.
It operates across the full 2.4GHz ISM band, supporting both Bluetooth 4.2 and the enhanced features of Bluetooth 5.0, including improved data rates and range. The module is controlled via a straightforward UART AT command set, allowing developers to pair it with a simple host MCU to bridge sensors, actuators, or other peripherals to smartphones or gateways. Its industrial-grade temperature tolerance ensures reliability in diverse environments.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 5 × 3 × 3 cm |
