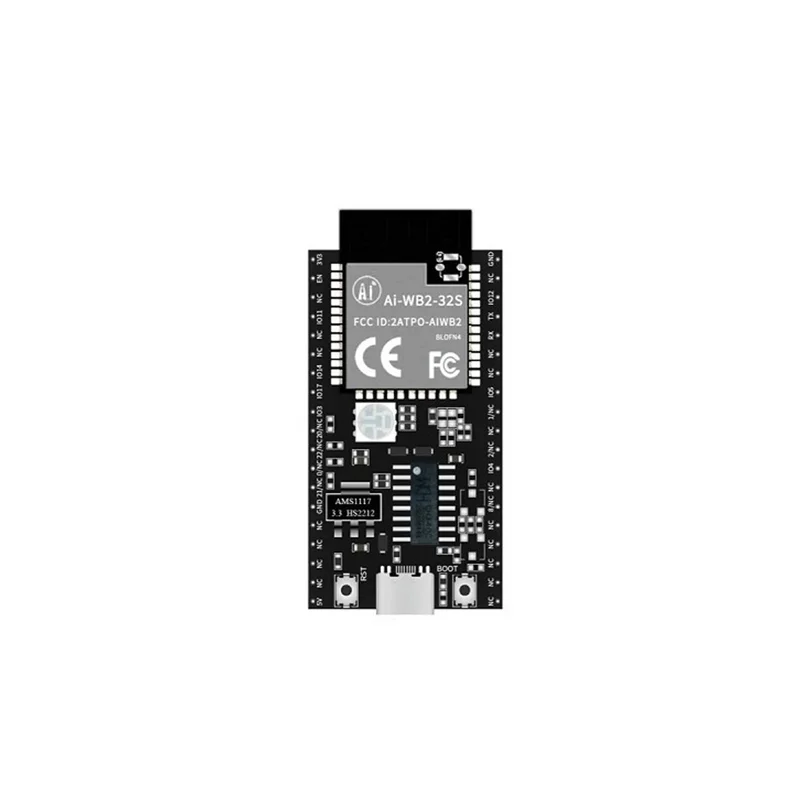

AI-Thinker Ai-WB2-32S Wi-Fi & BLE 5.0 Dev Kit

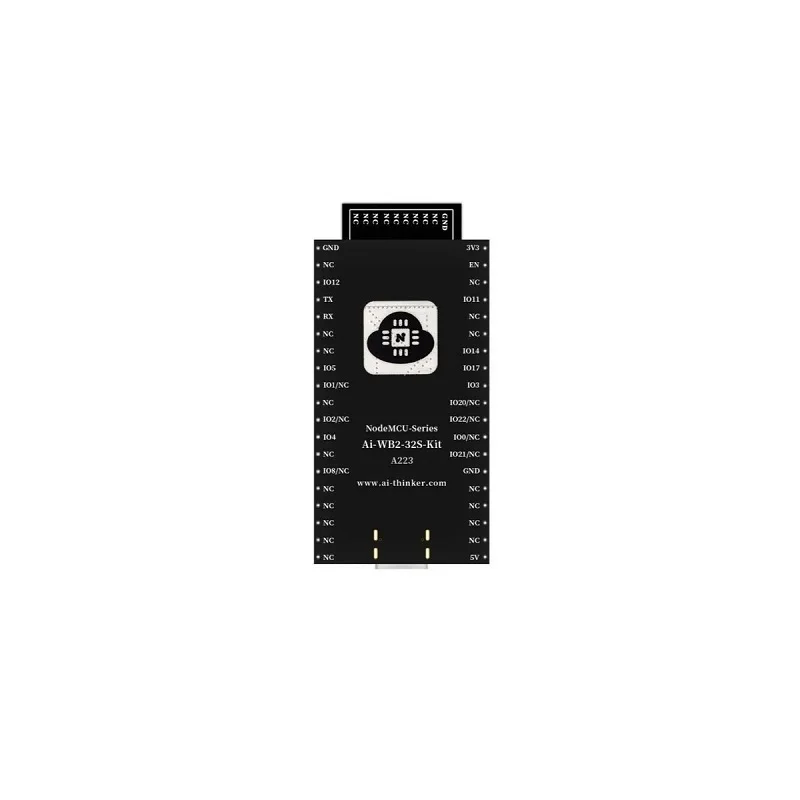

AI-Thinker Ai-WB2-32S Wi-Fi & BLE 5.0 Dev Kit - Image 2
AI-Thinker Ai-WB2-32S Wi-Fi & BLE 5.0 Dev Kit - Image 3
SKU: IOWC-0027
📋 GST Invoice Available

AI-Thinker Ai-WB2-32S Wi-Fi & BLE 5.0 Dev Kit

₹409.00 (Inclusive of all taxes)
Out of Stock

The AI-Thinker Ai-WB2-32S Kit is a development board integrating the Ai-WB2-32S Wi-Fi & BLE 5.0 module, powered by the BL602 chip. It supports 802.11b/g/n and Bluetooth 5.0 protocols, offering robust connectivity for diverse IoT and smart home applications.

Features

  • Integrated BL602 RISC CPU for efficient Wi-Fi 802.11b/g/n and BLE 5.0 connectivity.
  • Compact DIP-38 package with an onboard PCB antenna for streamlined integration.
  • Features comprehensive security (WPS/WPA3) and multiple sleep modes for power-sensitive IoT designs.
  • Wide range of peripherals including SDIO, SPI, UART, ADC, DAC, and GPIO for versatile interfacing.

Out of stock

Description

The AI-Thinker Ai-WB2-32S Kit serves as a robust development platform for the Ai-WB2-32S Wi-Fi and Bluetooth module. At its core lies the BL602 chip, a powerful 32-bit RISC CPU with 276KB RAM, designed to provide comprehensive support for Wi-Fi 802.11b/g/n and BLE 5.0 protocols. This integration enables seamless wireless communication, making it an ideal choice for a multitude of IoT, mobile, and smart home applications.

Equipped with a wide array of peripheral interfaces, including SDIO, SPI, UART, VDC, IR remote, PWM, ADC, DAC, PIR, and GPIO, the Ai-WB2-32S Kit offers extensive expandability for sensor integration and control systems. Its advanced security features, such as WPS/WEP/WPA/WPA2/WPA3, AES encryption, SHA, and a real random number generator, ensure data integrity and secure communication. The module also boasts excellent power management with multiple sleep modes, achieving a deep sleep current of just 12μA, crucial for battery-operated devices.

This development board simplifies the prototyping and deployment of embedded solutions, providing a flexible and secure foundation for innovators and system integrators. Its DIP-38 package and onboard PCB antenna streamline hardware integration, while support for universal AT commands and Windows/Linux development environments accelerates firmware development, making it highly adaptable for complex IoT ecosystems.

Key Features

  • Equipped with Bouffalo Lab BL602 chip, integrating 32-bit RISC CPU and 276KB RAM.
  • Supports IEEE 802.11b/g/n Wi-Fi protocol with 20MHz bandwidth and up to 72.2 Mbps speed.
  • Full Bluetooth BLE 5.0 and Bluetooth Mesh support for short-range wireless networking.
  • Comprehensive Wi-Fi security including WPS, WEP, WPA, WPA2 Personal/Enterprise, and WPA3.
  • Robust cryptographic hardware engines: AES 128/192/256-bit, SHA 1/224/256, and a True Random Number Generator (TRNG).
  • Secure Startup with ECC 256 signatures and real-time AES decryption (OTFAD) for enhanced firmware security.
  • Integrated Wi-Fi MAC/BB/RF/PA/LNA/BT for a compact and efficient wireless solution.
  • Multiple low-power sleep modes, achieving a deep sleep current of 12μA.
  • Supports secondary development with Windows and Linux environments, and universal AT commands.

Applications

  • Smart Home Automation & Control Systems
  • Industrial IoT (IIoT) & Sensor Networks
  • Wearable Electronic Devices & Health Monitors
  • Remote Environmental Monitoring & Data Logging
  • Asset Tracking & Location-Based Services
  • Edge Computing & TinyML Applications

Technical Specifications

Microcontroller/SoCBL602 (32-bit RISC CPU)
Wireless ProtocolsWi-Fi 802.11b/g/n, BLE 5.0, Bluetooth Mesh
Frequency Range2400 ~ 2483.5 MHz
Supply Voltage3.3V, 5V
Operating Current (Avg)500mA
Sleep Current (Deep Sleep)12μA
InterfacesUART, GPIO (15 pins), ADC, PWM, I2C, SPI, SDIO, VDC, IR Remote, PIR
Antenna ConnectorOn-board PCB Antenna
Operating Temperature-40 to 85°C
Dimensions55.05 x 25.4mm
Wi-Fi SecurityWPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WPA3

Frequently Asked Questions

How do I get started with firmware development on the Ai-WB2-32S Kit?

The Ai-WB2-32S Kit supports secondary development with Windows and Linux environments. You can leverage the provided SDK and comprehensive AT commands for quick integration. For custom applications, use the appropriate toolchains for the BL602 chip to program via UART, enabling deep customization for your IoT projects.

What are the power supply and power consumption characteristics of this module?

The Ai-WB2-32S Kit operates on a 3.3V or 5V power supply. It features multiple sleep modes, with a deep sleep current as low as 12μA, making it highly suitable for battery-powered IoT devices. The active current draw is specified at 500mA.

What wireless protocols and security features does the Ai-WB2-32S module support?

This module supports Wi-Fi 802.11b/g/n and Bluetooth BLE 5.0, including Bluetooth Mesh. For security, it incorporates WPS, WEP, WPA, WPA2 Personal/Enterprise, and WPA3. Advanced features like AES 128/192/256-bit encryption, SHA, and a real random number generator ensure robust data protection.

Can the Ai-WB2-32S Kit be integrated into existing systems via common interfaces?

Absolutely. The Ai-WB2-32S Kit offers a rich set of peripheral interfaces for seamless integration. These include UART, GPIO, ADC, PWM, I2C, SPI, SDIO, VDC, IR remote, and PIR. This extensive I/O flexibility makes it suitable for connecting various sensors and actuators in diverse embedded applications.

Package Includes

  • 1 x AI-Thinker Ai-WB2-32S Kit

Additional Information

Weight 0.02 kg
Dimensions 5.505 × 2.54 cm
