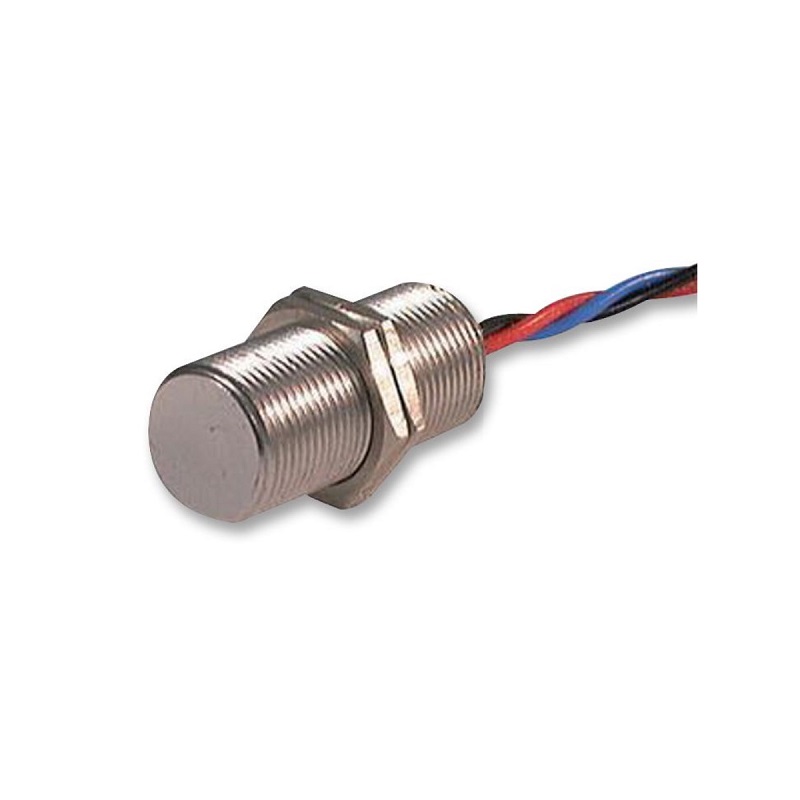

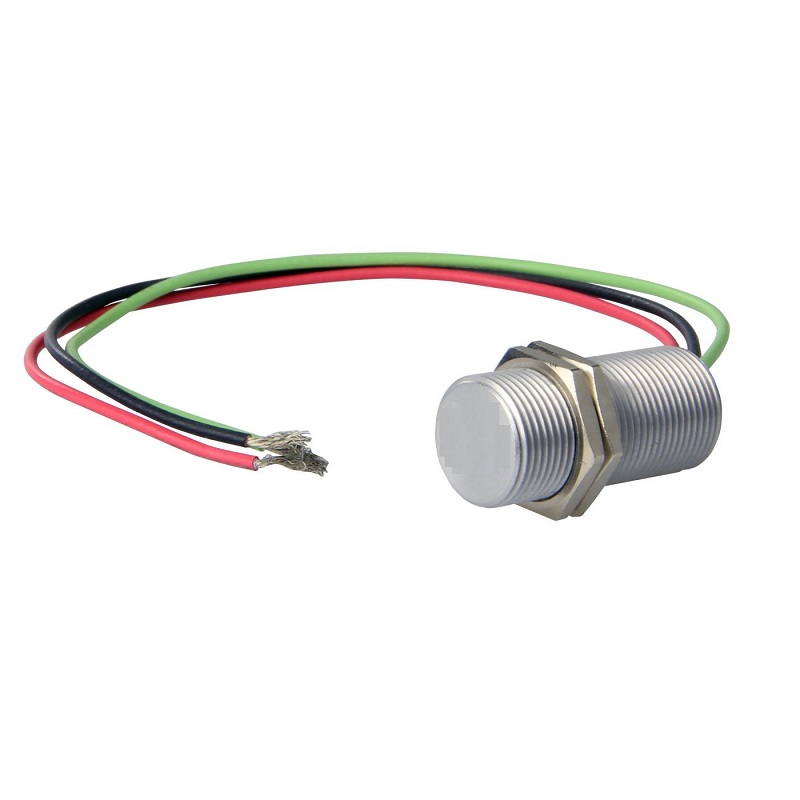

Honeywell 103SR13A-1 Hall Effect Position Sensor, Sink Output, Cylindrical Threaded Housing, 152mm Leads
The Honeywell 103SR13A-1 is a unipolar Hall-effect digital position sensor with a cylindrical threaded aluminum housing and 152mm lead wires. Featuring a sink output, it is designed for reliable, non-contact position sensing in industrial control systems, PLCs, and electronic circuits operating from 4.5 to 24 VDC.
Features
- Unipolar Hall-effect digital position sensor with solid-state reliability.
- Cylindrical 15/32-32 UNS-2A threaded aluminum housing for adjustable mounting.
- Open-collector sinking output compatible with microprocessors, logic ICs, and discrete transistors.
- Wide operating temperature range from -40°C to 100°C.
- Operates from a 4.5 to 24 VDC supply with a maximum output voltage of 0.4 VDC.
Out of stock
The 103SR13A-1 utilizes a Hall-effect integrated circuit (IC) that responds to the magnetic field from permanent magnets or electromagnets. This rugged, non-contact sensing solution is designed for latching or linear magnetic applications, providing a reliable digital signal based on the presence of a South magnetic pole.
Its standard open-collector sinking output can be easily interfaced with common electronic circuitry, including microprocessors, integrated logic, discrete transistors, and SCRs, provided voltage specifications are compatible. The sensor meets NEMA 3, 3R, 3S, 4, 4X (with stainless steel housing), 12, and 13 environmental requirements, ensuring durability in demanding industrial settings.
Additional Information
| Weight | 0.006 kg |
|---|---|
| Dimensions | 19 × 14 × 1 cm |
