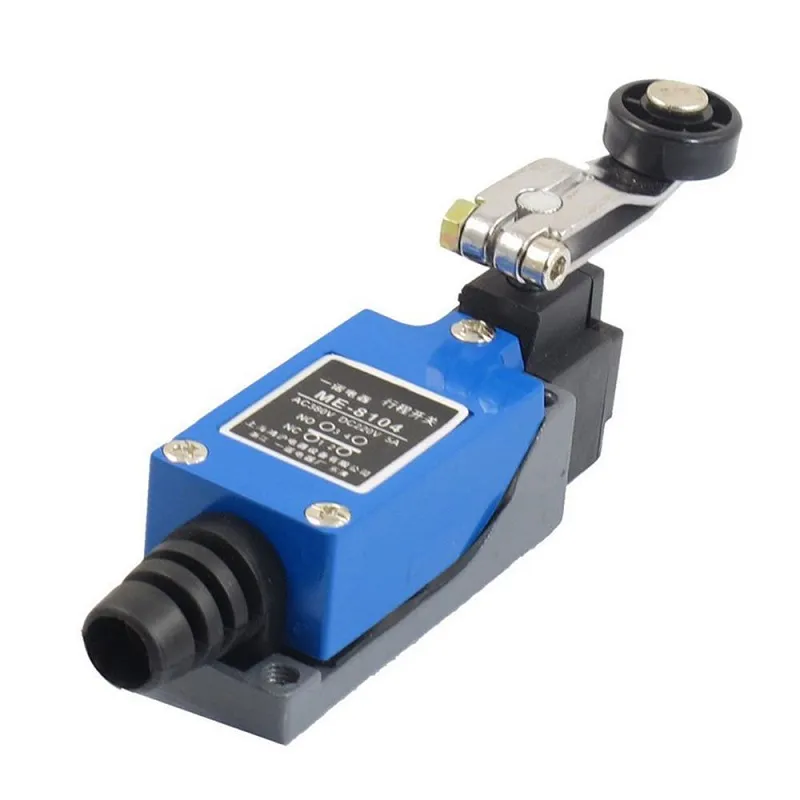

ME-8104 Rotary Roller Mini Limit Switch

The ME-8104 serves as a position sensor, primarily detecting the presence or absence of an object or the end of a mechanical movement. It uses a physical contact to activate its internal switch, sending a signal to a control circuit. This ensures precise operation in automated systems.

This limit switch is rated for DC 250V and can handle a current of up to 5A. It is crucial to ensure your application's voltage and current demands fall within these specifications to guarantee safe and reliable operation of the switch and associated control circuits.

Yes, the ME-8104 is well-suited for use as an end-stop or homing switch in 3D printers and CNC machinery. Its rotary adjustable roller arm provides flexible activation, making it effective for defining movement boundaries and ensuring accurate machine calibration.

Momentary action means the switch contacts only change state while the actuator is physically depressed. Once the pressure is released, the contacts return to their original position. This is ideal for applications requiring a brief signal upon impact, such as sensing an object passing or reaching a limit.

The ME-8104 limit switch is constructed from a combination of durable plastic, metal, and rubber components. This material selection ensures robust performance and longevity in various industrial and mechanical environments, protecting against wear and tear from repeated actuation cycles.
