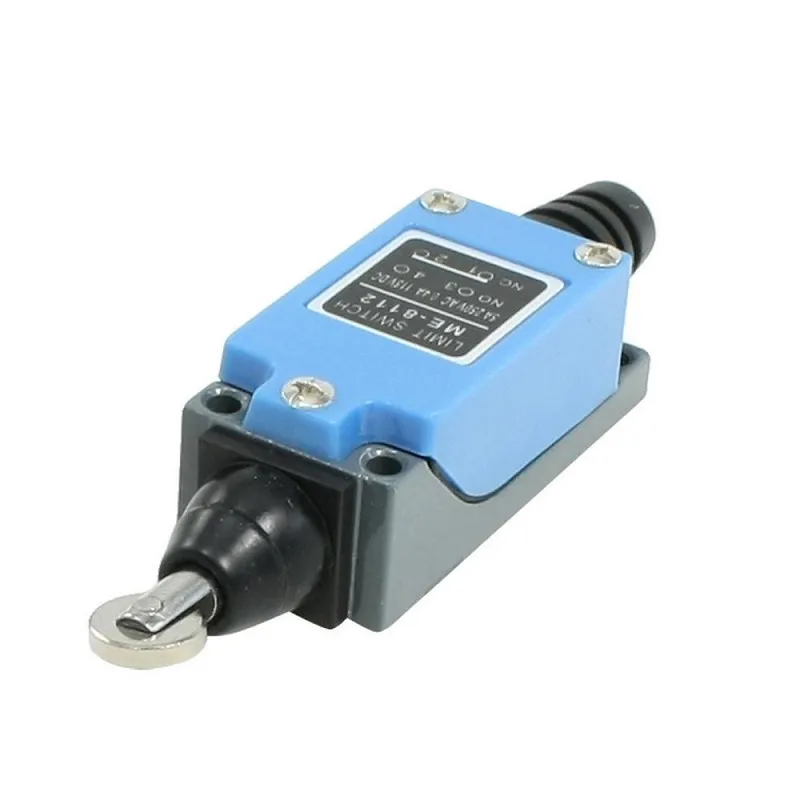

ME-8112 Rotary Adjustable Roller Mini Limit Switch

This limit switch is ideal for monitoring the position of moving parts in various machines, including 3D printers, CNC equipment, and industrial automation systems. It functions as an electrical control switch for detecting end-of-travel or specific positions, ensuring precise operational control and safety interlocks in mechanical setups.

Yes, the ME-8112 features a rotary adjustable lever arm with a roller actuator. This allows for flexible positioning and fine-tuning of the switch's activation point. Adjustments are typically made by loosening a screw on the lever arm, repositioning it, and then securing it again to suit specific mechanical contact requirements.

This configuration indicates the switch has two Normally Closed (NC) and two Normally Open (NO) contacts, functioning as a Single-Pole Double-Throw (SPDT) type. This versatility allows for greater control circuit flexibility, enabling the switch to both break one circuit and make another simultaneously, or to trigger two independent actions.

The ME-8112 limit switch is rated for a maximum voltage of 250V AC. It can handle a current rating of either 2A or 5A, depending on the specific load and application. Users should always verify their system's voltage and current requirements to ensure safe and proper operation of the switch.
