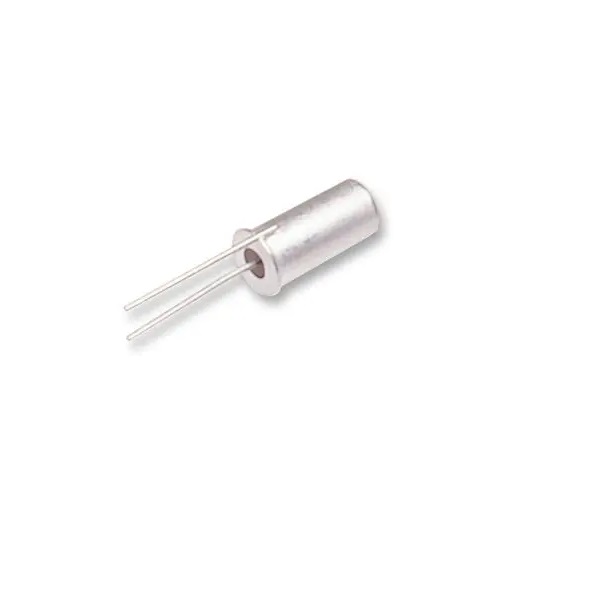

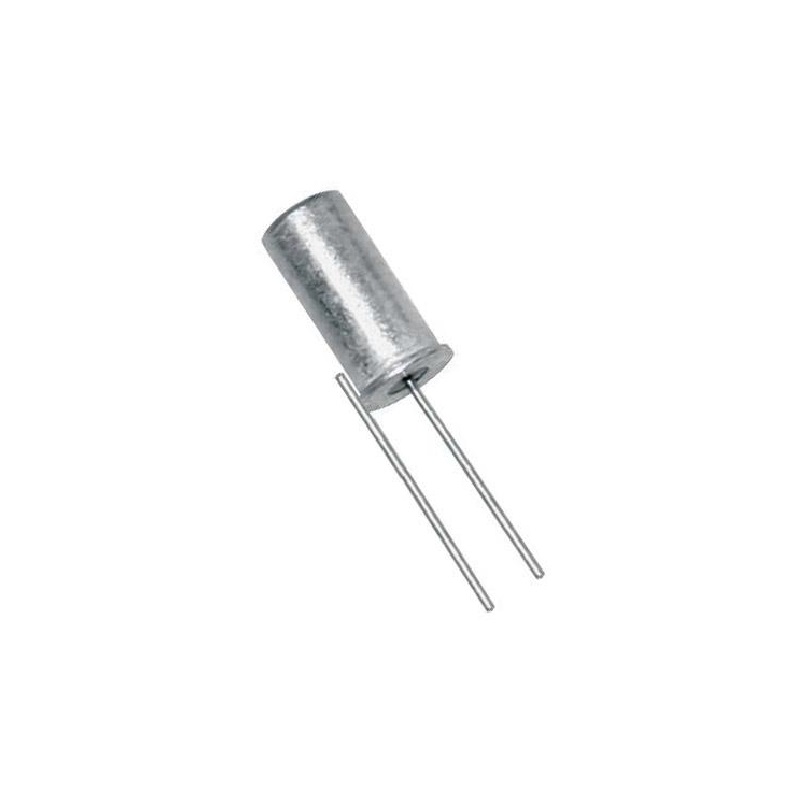

Comus International CW1300-1 Tilt Switch Sensor Module, 15° Differential Angle, Nickel Plated
The Comus International CW1300-1 is a hermetically sealed, non-mercury tilt switch sensor module designed for reliable orientation detection in industrial and electronic applications. It operates on a 15° maximum differential angle with a contact capacity of 60V AC / 0.25A, making it compatible with low-power control circuits, safety cut-offs, and position-sensing systems.
Features
- Non-mercury, inert gas-filled tilt switch for reliable, maintenance-free operation.
- Maximum differential angle of 15° with a make/break angle of 10° from horizontal.
- Rated for 60V AC / 0.25A maximum contact capacity (3 VA max).
- Hermetically sealed tin-plated case resistant to ambient environmental conditions.
- Wide operating temperature range from -37°C to +100°C.
Out of stock
The Comus International CW1300-1 tilt switch operates on a simple, robust mechanical principle where a conductive element moves to open or close an electrical circuit when the sensor is tilted beyond a specific angle from the horizontal plane. This design eliminates the need for mercury, enhancing safety and environmental compatibility.
Featuring a hermetically sealed, inert gas-filled housing with a tin-plated case, the sensor is protected against moisture, dust, and corrosive atmospheres, ensuring long-term stability and reliability. Its compact form factor and low-profile design facilitate integration into space-constrained assemblies for orientation detection, tilt alarms, and position-sensitive switching applications.
Additional Information
| Weight | 0.001 kg |
|---|---|
| Dimensions | 2.2 × 0.5 cm |
