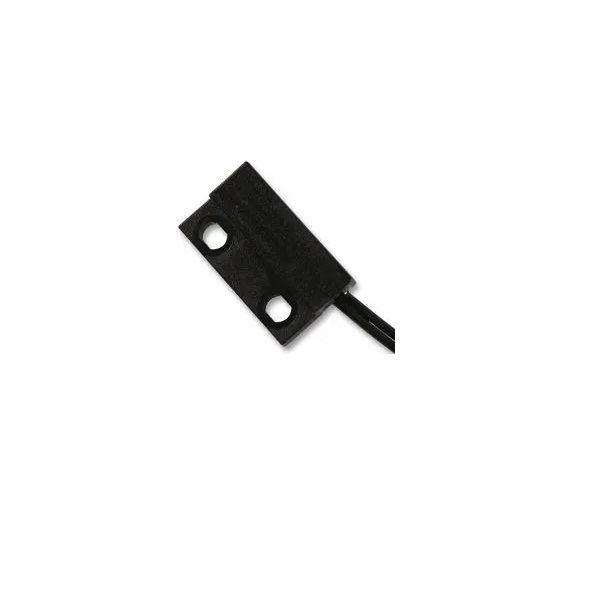

Littelfuse 59140-1-T-02-F Magnetic Sensor Flange Mount - 2 Pin, 30 G
The Littelfuse 59140-1-T-02-F is a miniature flange-mount magnetic reed sensor designed for precise position detection in industrial and electronic applications. It features a 2-pin, normally open (NO) contact configuration with a 30 G operate point, offering screw or adhesive mounting flexibility for integration into control systems and safety interlocks.
Features
- Miniature flange-mount reed sensor with a compact 3.22 cm² footprint.
- Magnetically operated with a 30 G operate point for precise position sensing.
- Capable of switching up to 265 Vac / 300 Vdc at 10VA maximum.
- Features screw or adhesive mounting options with top right-hand wire exit.
- RoHS compliant construction for use in regulated electronic assemblies.
Out of stock
The Littelfuse 59140 series is a magnetically operated position sensor utilizing a hermetically sealed reed switch. The 59140-1-T-02-F variant is a normally open (NO) contact type designed for flange mounting, enabling reliable detection of a magnetic field presence or proximity. Its compact case design minimizes board space while providing robust switching capabilities for low-power control circuits.
Engineered for durability, the sensor’s reed contacts are encapsulated within a protective housing, ensuring stable performance across industrial environments. It is optimized for use with the matching 57140-000 actuator and offers configurable sensitivity, cable length, and connector options per customer requirements, making it a versatile component for safety interlocks, door/window sensing, and equipment position feedback.
Additional Information
| Weight | 0.03 kg |
|---|---|
| Dimensions | 9 × 7 × 1 cm |
