Holybro Pixhawk 6C Flight Controller + PM02 Power Module + M9N GPS - Kit

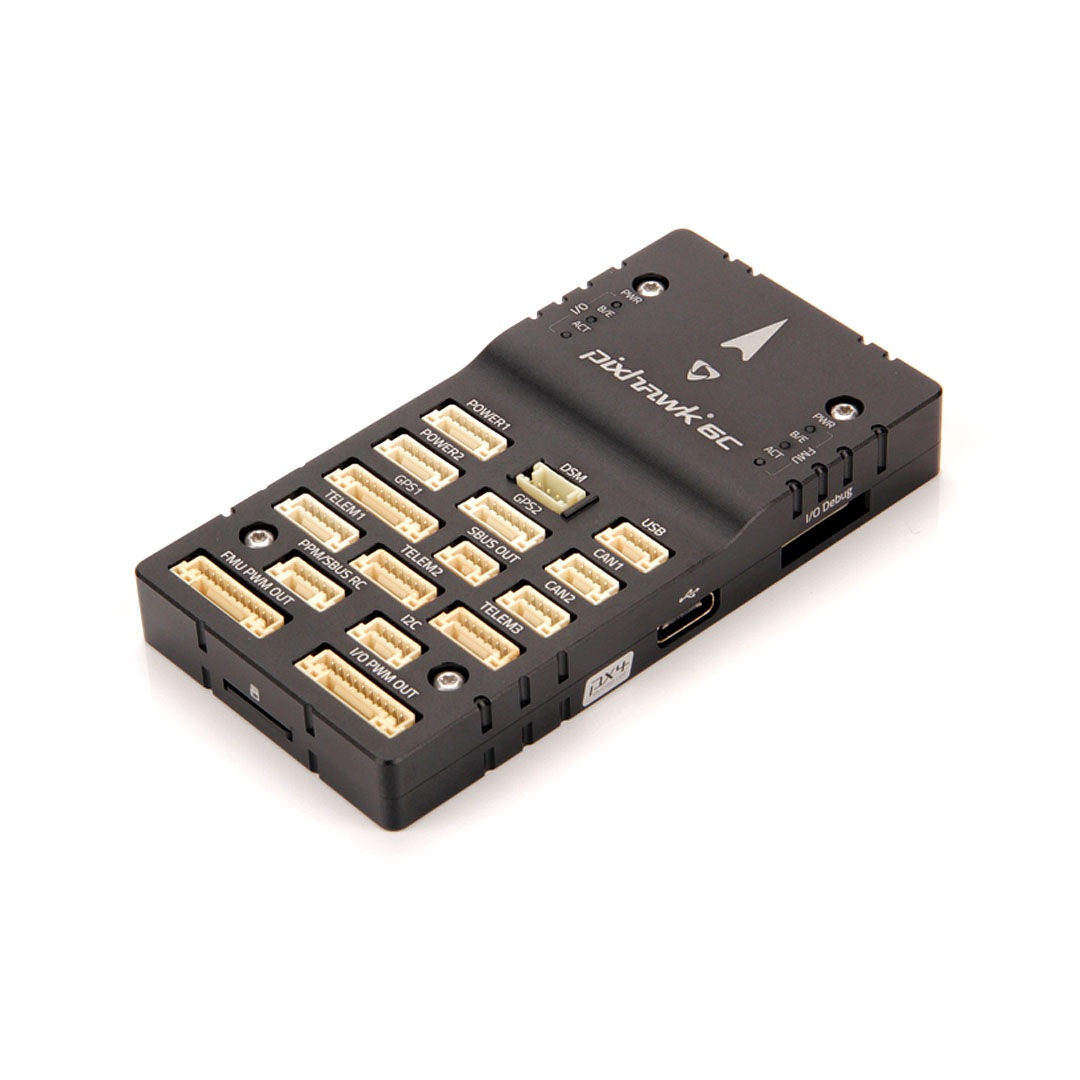

The Holybro Pixhawk 6C is a professional-grade autopilot flight controller based on the Pixhawk FMUv6C open standard, featuring an STM32H743 processor and redundant IMUs. It comes pre-installed with PX4 Autopilot firmware and is designed for advanced autonomous vehicle control in academic, research, and commercial applications.
Features
- STM32H743 (Arm Cortex-M7) processor running at 480 MHz with 2MB Flash and 1MB RAM.
- Redundant inertial measurement units (IMUs) from Bosch and InvenSense with temperature control.
- Integrated vibration isolation system for high-frequency noise filtering and accurate sensor readings.
- Based on the Pixhawk FMUv6C Open Standard and Connector Standard.

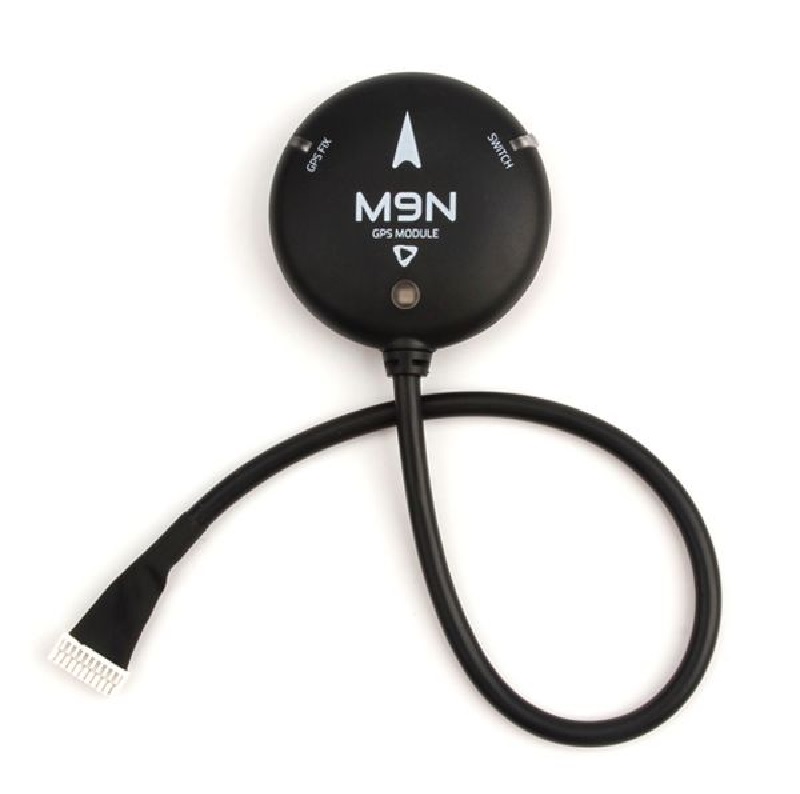

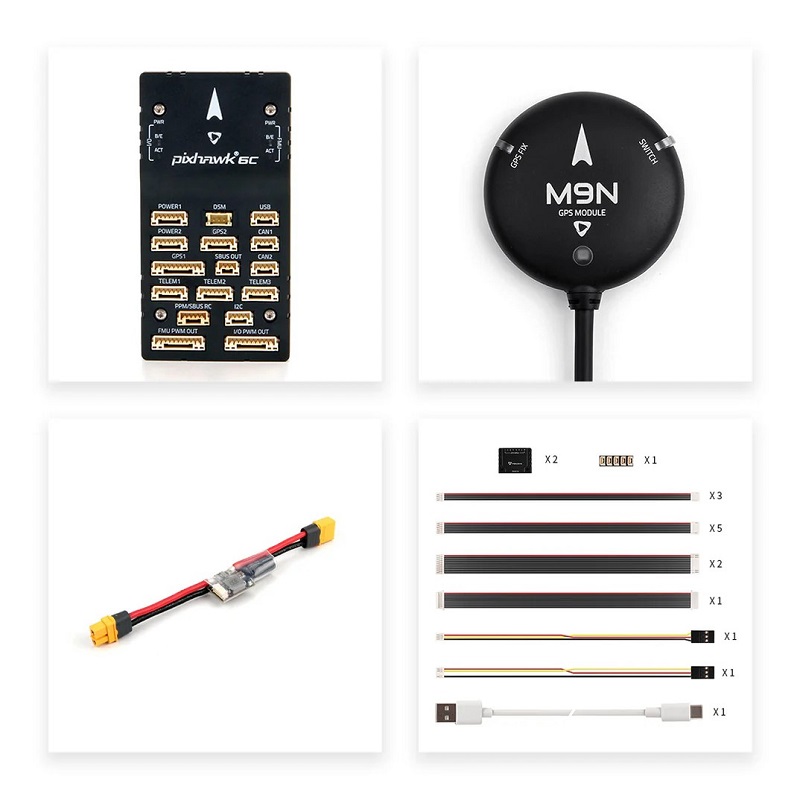

- Kit includes Pixhawk 6C Flight Controller, PM02 V3 12S Power Module, M9N GPS module, and cable set.
Out of stock
The Pixhawk 6C represents the latest evolution in the Pixhawk family, built on the established FMUv6C open hardware standard. Its core is the powerful STM32H743 microcontroller, which provides the computational headroom required for complex autonomous navigation algorithms and high-rate control loops. This processing power is paired with a sophisticated sensor suite designed for reliability.
The flight controller incorporates a redundant IMU setup, featuring sensors from Bosch and InvenSense, which are actively temperature-controlled by onboard heating resistors to maintain optimal performance. A newly designed, integrated vibration isolation system mechanically filters out high-frequency noise from motors and propellers, ensuring the IMUs deliver precise and stable data for superior flight performance.
Additional Information
| Weight | 0.295 kg |
|---|---|
| Dimensions | 15 × 13 × 5 cm |
