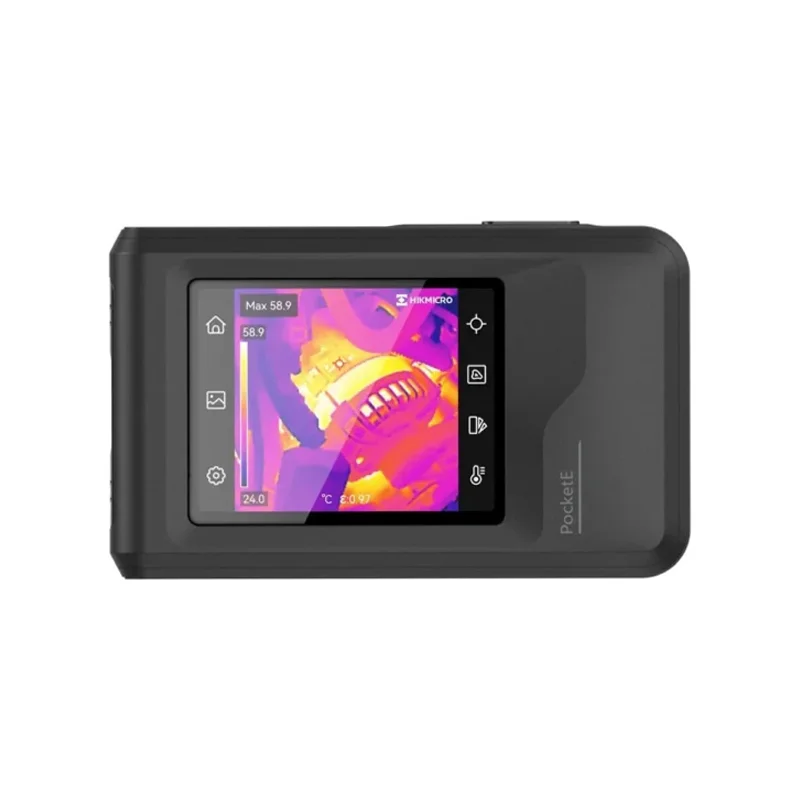

HIKMICRO Pocket-E Compact Thermal Imaging Camera w/ Visual Camera

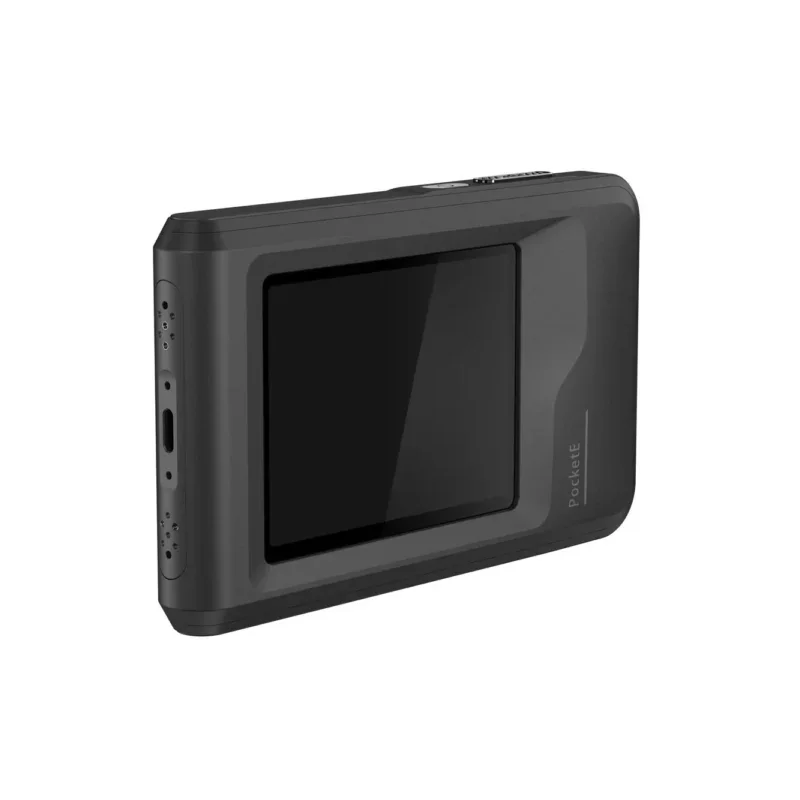

HIKMICRO Pocket-E Compact Thermal Imaging Camera w/ Visual Camera - Image 2

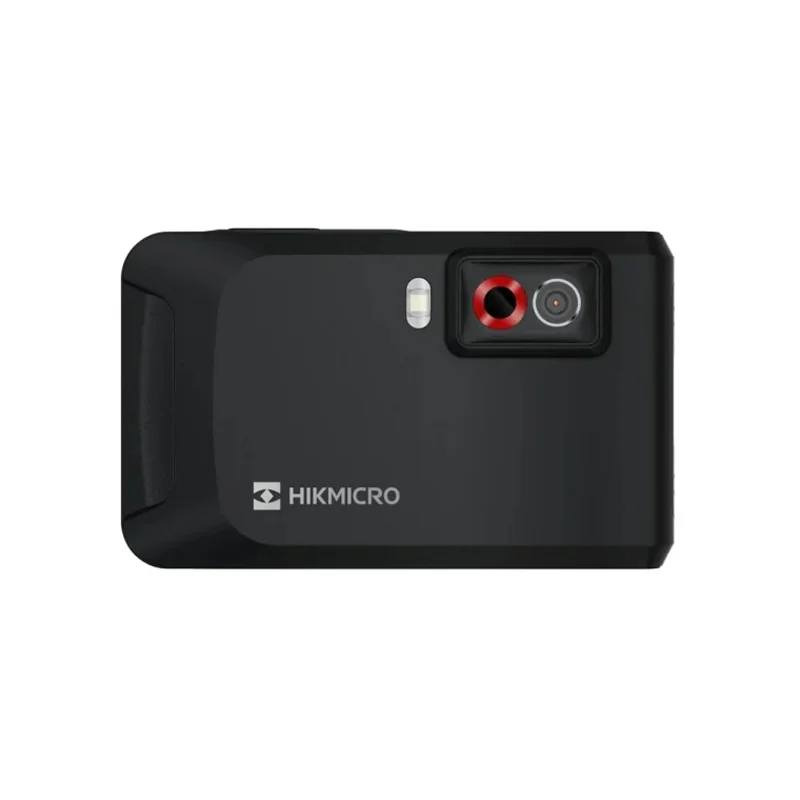

HIKMICRO Pocket-E Compact Thermal Imaging Camera w/ Visual Camera - Image 3
HIKMICRO Pocket-E Compact Thermal Imaging Camera w/ Visual Camera - Image 4
SKU: IOWC-0643
📋 GST Invoice Available

HIKMICRO Pocket-E Compact Thermal Imaging Camera w/ Visual Camera

₹27,029.00 (Inclusive of all taxes)
Out of Stock

The HIKMICRO Pocket-E is a compact, handheld thermal camera featuring a 96×96 IR sensor and a visual camera for blended imaging. Powered by SuperIR technology and a 3.5″ touchscreen, it offers Wi-Fi connectivity for remote viewing via the HIKMICRO Viewer App, making it ideal for on-site inspections.

Features

  • Dual-Sensor Imaging: Combines a 96×96 pixel thermal sensor with a visual camera for five display modes (Thermal, Visual, PIP, Fusion, Blending) to enhance fault detection and analysis.
  • SuperIR Enhanced Clarity: Utilizes SuperIR processing to upscale thermal imagery for improved detail and accurate temperature measurement from -20°C to 350°C.
  • Portable & Rugged Design: Pocket-sized form factor with IP54 rating and 2m drop resistance, powered by a USB-C rechargeable battery offering up to 4 hours of continuous operation.
  • Intuitive Touchscreen & Wi-Fi: Features a 3.5″ LCD touchscreen for on-device control and Wi-Fi connectivity for wireless image transfer and remote viewing via smartphone app.
  • Smart Inspection Tools: Includes one-tap level & span adjustment for instant contrast optimization and supports on-device recording for efficient workflow documentation.

Out of stock

Description

The HIKMICRO Pocket-E Handheld Thermal Camera integrates a 96×96 uncooled VOx microbolometer infrared sensor with a complementary visual camera, delivering a practical tool for non-destructive testing and thermal diagnostics. Its SuperIR image processing engine enhances raw thermal data, providing clearer thermal contours and reliable spot temperature readings accurate within ±2°C or ±2%. The device operates at a 25 Hz refresh rate, ensuring smooth real-time scanning for dynamic inspections.

Engineered for field use, the Pocket-E is housed in a lightweight, impact-resistant casing rated IP54 for dust and water splash protection. Power is supplied via a built-in Li-ion battery, rechargeable through the USB-C port, supporting extended 4-hour runtimes typical for professional surveys. The integrated Wi-Fi module enables seamless connection to the HIKMICRO Viewer App on iOS/Android devices, allowing for live stream viewing, image sharing, and report generation directly from a smartphone or tablet.

Key Features

  • SuperIR Image Enhancement: Advanced processing algorithm upscales and clarifies 96x96 IR imagery for detailed thermal analysis and accurate temperature measurement.
  • Five Display Modes: Switch between Thermal-only, Visual-only, Picture-in-Picture (PIP), Alpha-blended Fusion, and Blending modes for optimal scene interpretation.
  • Wide-Angle 50° Lens: Captures broad areas in a single scan, increasing inspection efficiency for electrical panels, building envelopes, and mechanical systems.
  • On-Device Recording & Storage: Supports internal storage for saving thermal images, videos, and reports directly on the camera for later analysis.
  • One-Tap Level & Span: Instant automatic adjustment of thermal contrast and brightness to highlight temperature differences and anomalies.
  • Full-Screen Temperature Measurement: Enables spot, area, and line temperature analysis across the entire display with a high-temperature alarm function.
  • App-Enabled Wireless Workflow: Connect via Wi-Fi to the HIKMICRO Viewer App for remote control, live viewing, and sharing of inspection data.
  • Durable Field-Ready Build: Compact dimensions (139 x 86 mm) and lightweight (118g) design with IP54 sealing and 2m drop resistance for harsh environments.

Applications

  • Electrical & Mechanical Inspection: Identify overheating components, loose connections, and faulty circuits in panels, motors, and switchgear.
  • Building Diagnostics: Detect insulation gaps, moisture intrusion, HVAC duct leaks, and window thermal bridging.
  • Preventive Maintenance: Monitor bearing temperatures, boiler systems, and process equipment for early failure signs.
  • Plumbing & Roofing Surveys: Locate pipe blockages, underfloor heating faults, and roof water damage through thermal anomalies.
  • Outdoor & Wildlife Monitoring: Use in low-light conditions for security patrols, search & rescue, or nocturnal animal observation.

Technical Specifications

Thermal Sensor Resolution96 x 96 pixels (9,216 pixels)
Visual CameraIntegrated for blended imaging
Temperature Range-20°C to 350°C
Measurement Accuracy±2°C or ±2% (whichever is greater)
Refresh Rate25 Hz
Display3.5" LCD Touchscreen
Wireless ConnectivityWi-Fi (for HIKMICRO Viewer App)
Power SupplyBuilt-in Li-ion battery, USB Type-C charging
Operating Voltage/Current5 VDC / ~2 A (during charging/operation)
Battery RuntimeUp to 4 hours (continuous use)
Ingress ProtectionIP54 (dust and water splash resistant)
Dimensions (L x W)139 mm x 86 mm
Weight118 g (device only)
Model NumberHM-TP40-1AQF/W

Frequently Asked Questions

How do I connect the Pocket-E thermal camera to my smartphone for remote viewing?

Enable the Wi-Fi function on the Pocket-E camera from its settings menu. On your smartphone, download the HIKMICRO Viewer App from the iOS App Store or Google Play Store. Open the app, scan for available devices, and connect to the camera's Wi-Fi network. Once paired, you can view a live thermal feed, control camera settings, and transfer saved images directly to your phone for reporting and analysis. The connection is typically stable within a 10-15 meter line-of-sight range.

What is the procedure for accurate temperature measurement and calibration on this device?

For accurate readings, ensure the camera lens is clean and the target fills a significant portion of the thermal image. Use the on-screen crosshair or area box tool to define the measurement spot. The camera is factory calibrated, but you can adjust emissivity settings (typically between 0.90-0.95 for most surfaces) in the measurement menu for reflective materials. Perform measurements in stable ambient conditions, avoiding direct sunlight or wind on the target, to maintain the stated ±2°C or ±2% accuracy. Regular operation does not require user calibration.

What are the supported file formats and how do I transfer data to a computer?

The HIKMICRO Pocket-E saves thermal inspection data as standard JPEG images with embedded temperature metadata, which can be analyzed in the HIKMICRO Viewer software. To transfer files, connect the camera to a Windows PC or Mac using the included USB-C cable. The device will appear as a removable storage drive. Simply drag and drop the image files from the camera's internal memory to your computer. For advanced analysis, install the HIKMICRO Viewer PC software to open the files and generate detailed inspection reports with temperature profiles.

What is the battery charging time and how can I maximize the 4-hour operational runtime?

The built-in lithium-ion battery charges fully in approximately 2.5 hours using a standard 5V/2A USB charger via the Type-C port. To maximize the 4-hour continuous use runtime, reduce screen brightness, disable Wi-Fi when not needed for transfer, and utilize the auto-sleep function. Avoid recording long video clips continuously. For field use, carrying a portable power bank allows for on-the-go recharging, ensuring uninterrupted operation during extended inspection sessions without access to mains power.

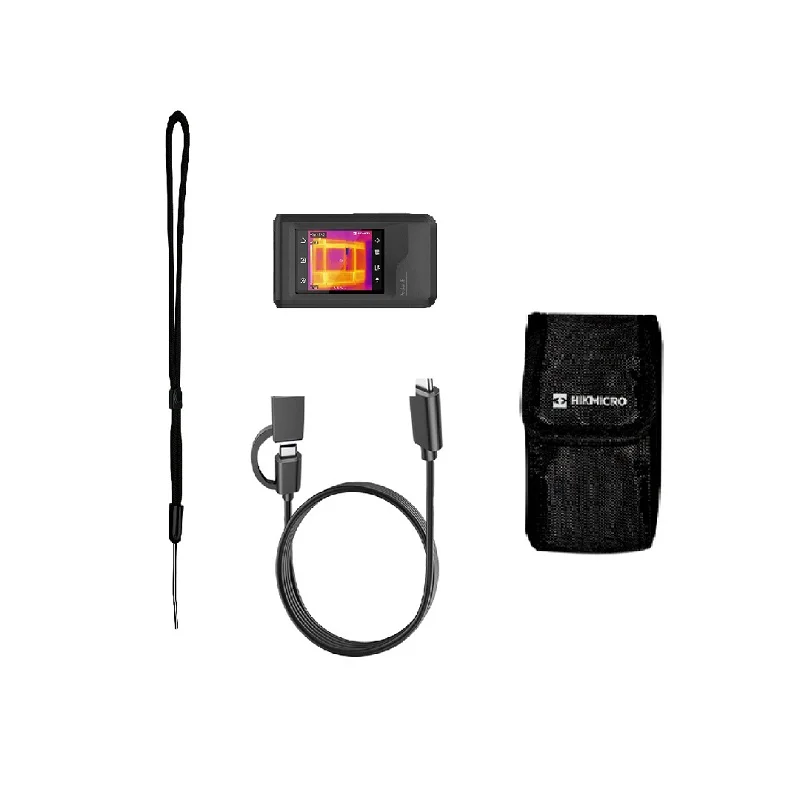

Package Includes

  • 1 x HIKMICRO Pocket-E Thermal Imaging Camera
  • 1 x Soft Carrying Pouch
  • 1 x 2-in-1 USB-A/C to USB-C Cable
  • 1 x Wrist Strap
  • 1 x Printed Quick Start Guide

Additional Information

Weight 0.118 kg
Dimensions 13.9 × 8.6 cm

Related Products

Out of Stock

Waveshare AR0144 2MP Stereo USB Camera Module w/ 52mm Baseline

7,729.00
Learn More
Out of Stock

Three-Way Soil Meter for Moisture, Light Intensity and pH Testing

209.00
Learn More
Out of Stock

ZG1683 Handheld Inkjet Coding Printer

111,324.00
Learn More
Out of Stock

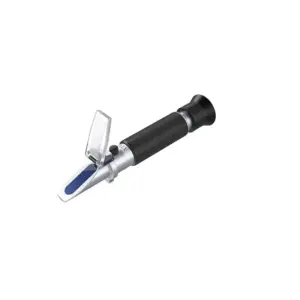

Generic Handheld Alcohol Refractometer 0-80% v/v ATC Spirits Tester - Single Scale

1,049.00
Learn More
Out of Stock

Goofoo LP06-GREEN Low-Temp PCL 3D Printing Pen

2,574.00
Learn More
Out of Stock

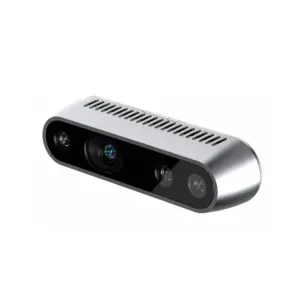

Intel Intel RealSense Depth Camera D436 w/ D430 Module

52,779.00
Learn More
Out of Stock

Generic 4-in-1 Automotive Refractometer - Antifreeze, Battery Fluid, Urea, Coolant Meter

1,099.00
Learn More
Out of Stock

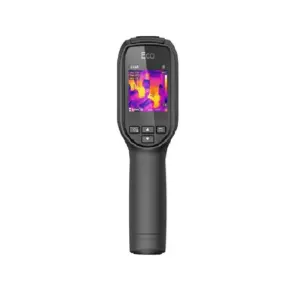

HIKMICRO HM-TP30-1AQF-Eco Handheld Thermal Imaging Camera

20,879.00
Learn More
Out of Stock

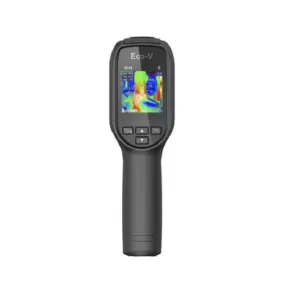

HIKMICRO Eco-V Thermal Camera 96x96 w/ Visual Camera & Laser Pointer

24,089.00
Learn More
Out of Stock

Handheld Refractometer 0-100% Salinity Meter - Aluminum Body w/ ATC

1,099.00
Learn More
Out of Stock

Generic Anemometer Digital Handheld Wind Speed Meter

884.00
Learn More
Out of Stock

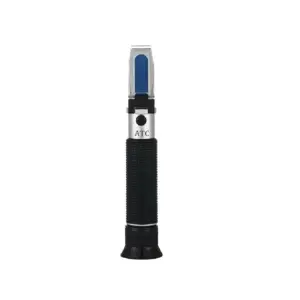

Generic Medical Refractometer ATC Protein Refractometer Concentration Meter - SP: 0-12g/dL, U.G: 1.000-1.050
