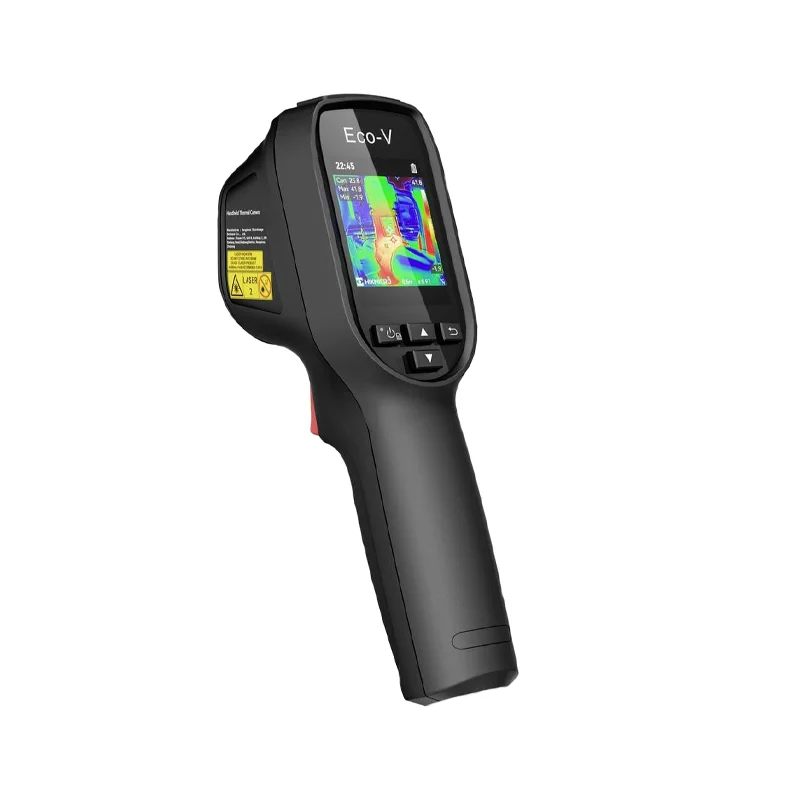

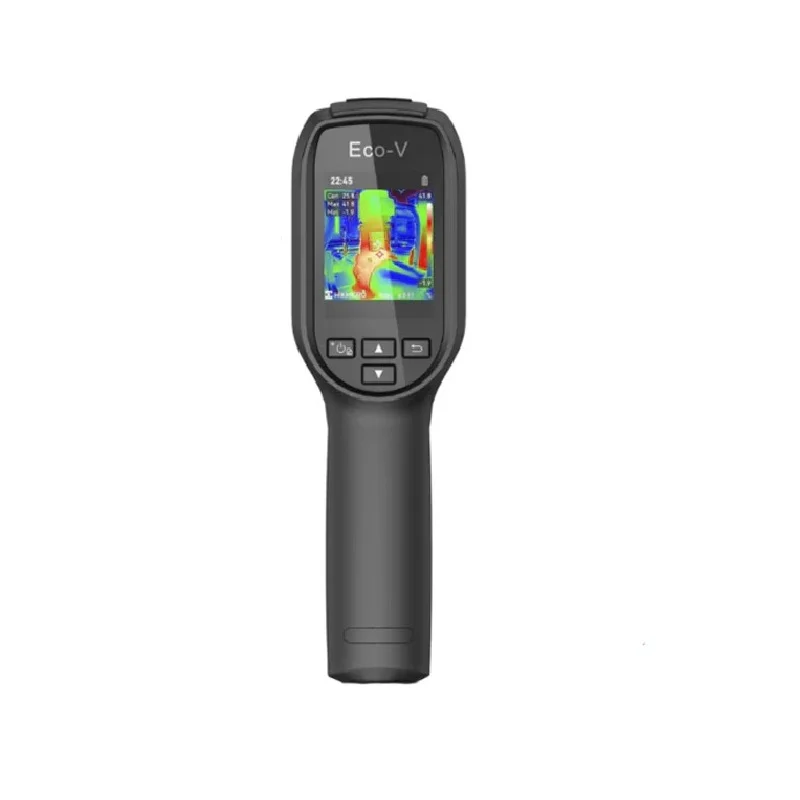

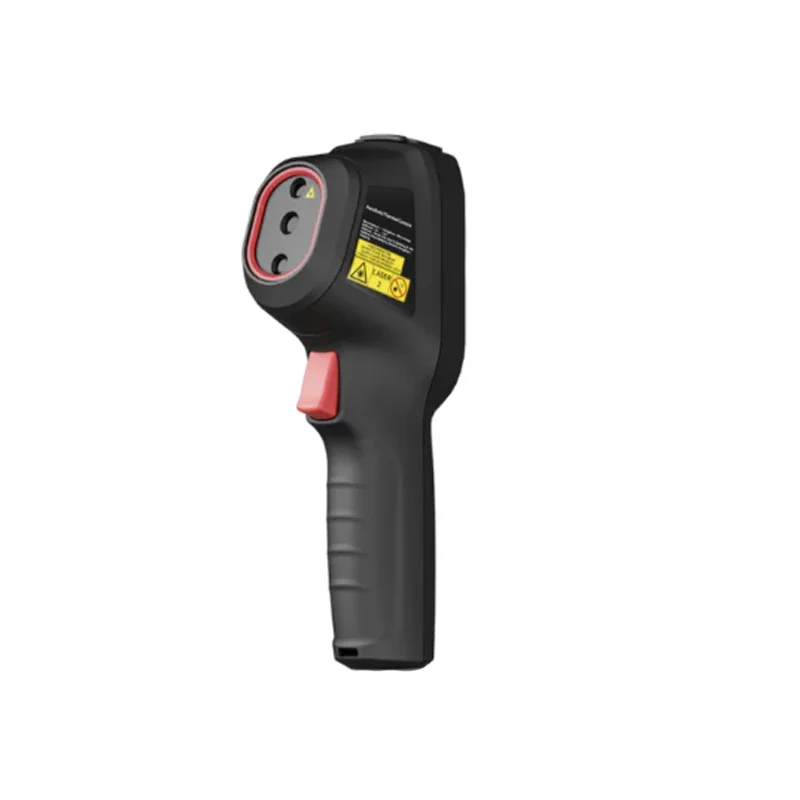

HIKMICRO Eco-V Thermal Camera 96x96 w/ Visual Camera & Laser Pointer

The HIKMICRO Eco-V uses a native 96 x 96 pixel uncooled VOx microbolometer thermal sensor. Its SuperIR image enhancement technology processes this data to output a sharper, more detailed image equivalent to 240 x 240 pixels, providing clearer visualization for fault detection and analysis during inspections.

The Eco-V features a co-aligned 0.3MP visual camera alongside the thermal sensor. You can toggle between pure thermal view, visual view, or a blended fusion mode via the device's menu. The fusion mode overlays thermal hotspots onto the visual image, allowing for precise location identification, which is essential for documenting electrical faults or building defects.

For accurate radiometric measurement, ensure the target fills the measurement spot or area box on screen. Set the correct emissivity value for the material being measured via the settings menu. The camera should be at a stable ambient temperature for several minutes before critical measurements. Regular calibration checks against known temperature references are recommended for professional use.

Charge the device using the provided USB-C cable connected to a standard 5V USB power source. A full charge takes approximately 3-4 hours. To maximize battery lifespan, avoid completely draining the battery; recharge when the indicator shows low power. For long-term storage, charge the battery to around 50% and store the device in a cool, dry place.

Yes, the Eco-V allows one-click capture of both thermal and visual images, which are saved internally on the device's storage. You can connect the camera to a computer via USB-C, where it will appear as a mass storage device. From there, you can copy the JPEG image files for inclusion in inspection reports, maintenance logs, or client documentation.
