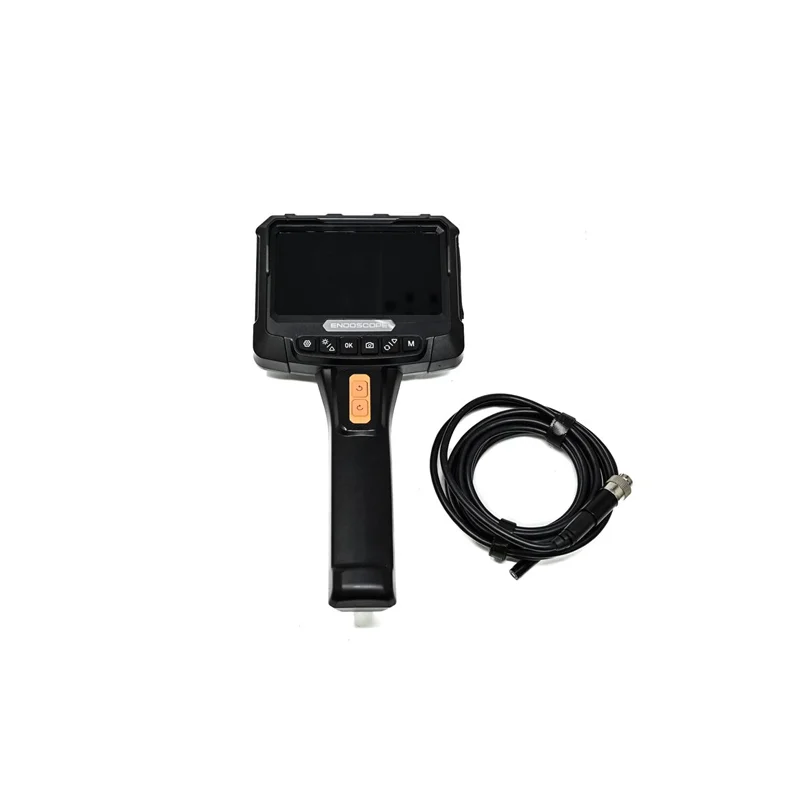

Inskam G10 Pro Visual Inspection Camera w/ 5-Inch LCD & Dual Lens

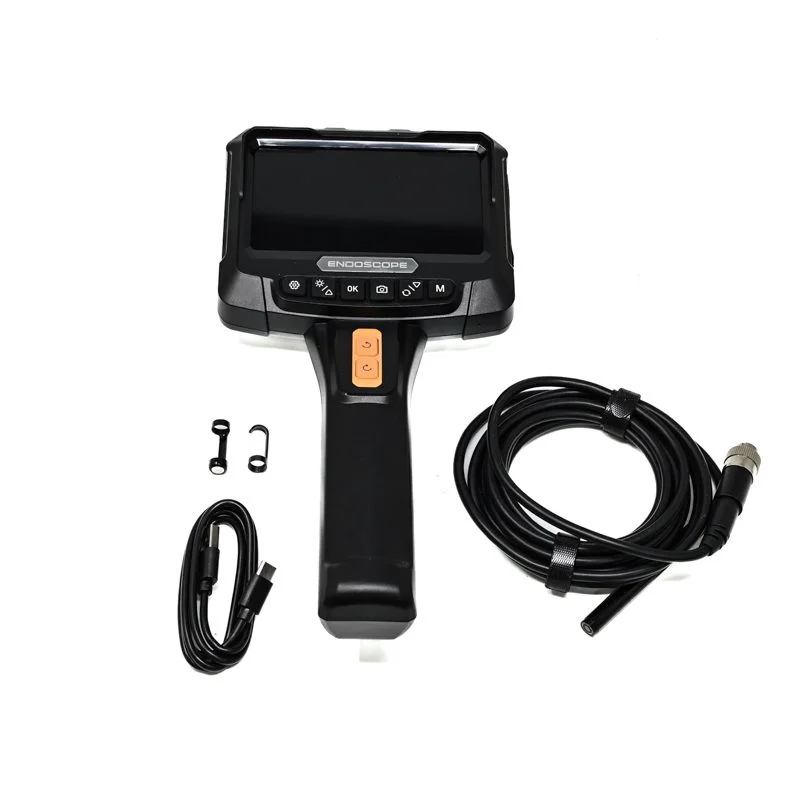

First, ensure the 2000mAh battery is fully charged via the USB Type-C port. Insert a formatted microSD card for storage. Power on the device using the side button. Attach the desired inspection cable (1m or 2m) with the lens head, and select the appropriate lens if your model has the dual-lens switch. Navigate the camera into the inspection area, using the on-screen display to guide positioning. Press the record button to capture video, which is saved in H.264 format to the SD card. Use the included hook or magnet attachments for hands-free stabilization when needed.

Before submerging or using in wet conditions, verify that the inspection cable's connector is securely threaded and fastened to the main display unit. Ensure the rubber seal on the connector is clean and undamaged. The camera head itself is waterproof, but the main display unit is only rated for splash resistance; avoid fully immersing the handheld screen portion. After use in dirty or wet environments, rinse the cable and camera head with clean water and dry thoroughly before storage to prevent seal degradation and corrosion.

The Inskam G10 Pro supports standard microSD cards up to a capacity typically of 128GB (check the manual for the maximum confirmed size). The device formats video using the H.264 compression codec, which balances high quality with efficient file sizes. Recordings are saved as .MP4 or .AVI files (confirm exact format in settings) at a resolution of 1920x1080 pixels (1080P). For optimal performance, use a Class 10 or higher speed-rated microSD card to ensure smooth video writing and prevent frame drops during recording sessions.

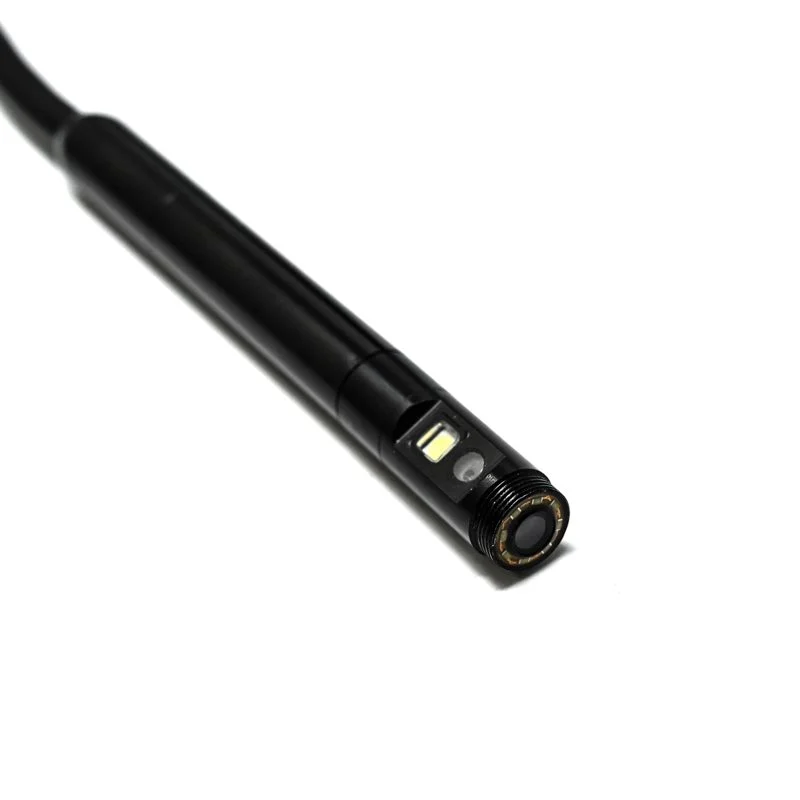

Yes, the Inskam G10 Pro is equipped with LED illumination lights surrounding the camera lens to provide visibility in dark environments. These LEDs are activated automatically or manually via a dedicated button, depending on the model settings. This feature, often referred to as 'night vision' in inspection cameras, allows you to see inside unlit pipes, machinery, or other obscured spaces. The intensity of the LEDs may be adjustable to prevent over-saturation in very close-range inspections and to conserve battery power during extended use.
