Hi-Link HLK-LD6003D 60GHz Trajectory Detection Radar Sensor - FMCW, 6m Range, ±60° FOV
The Hi-Link HLK-LD6003D is a 60GHz FMCW radar sensor module designed for high-sensitivity human presence and trajectory detection. It provides precise x, y, z coordinate tracking for up to three targets within a 6-meter range and ±60° field of view, outputting data via UART for integration with microcontrollers like ESP32, STM32, or Raspberry Pi.
Features
- 60GHz FMCW Radar with 2T2R antenna system for high-resolution human presence and micro-motion detection.
- Multi-target tracking of up to 3 people with x, y, z coordinate positioning within a 6-meter range.
- Wide ±60° field of view with configurable detection zones and interference shielding capabilities.
- Integrated Cortex-M3 core for onboard signal processing; communicates via UART interface.
- Low power operation with idle current as low as 2.5mA, supporting power-saving modes.
Out of stock

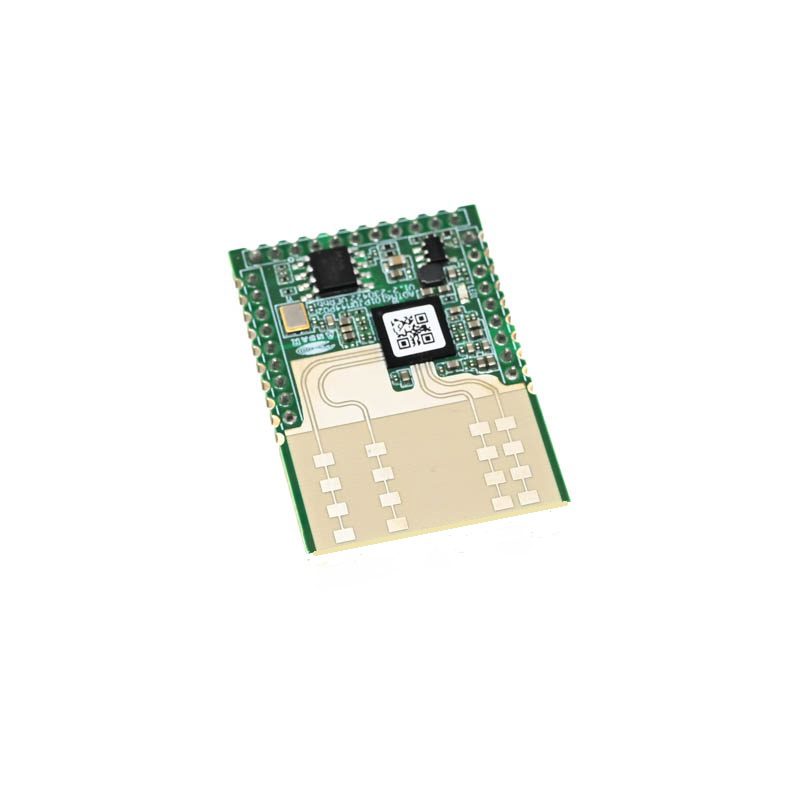

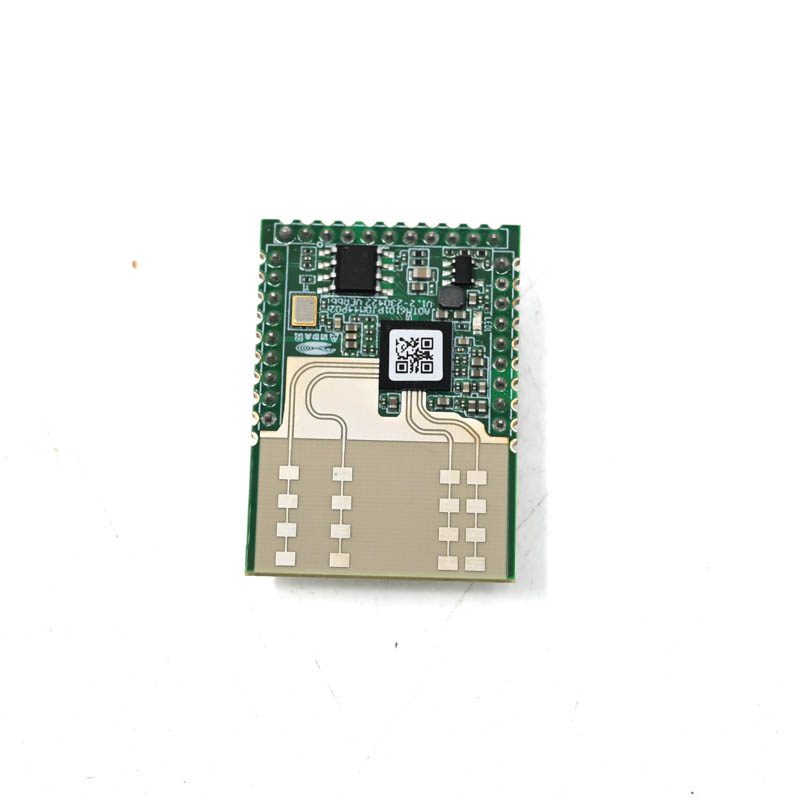

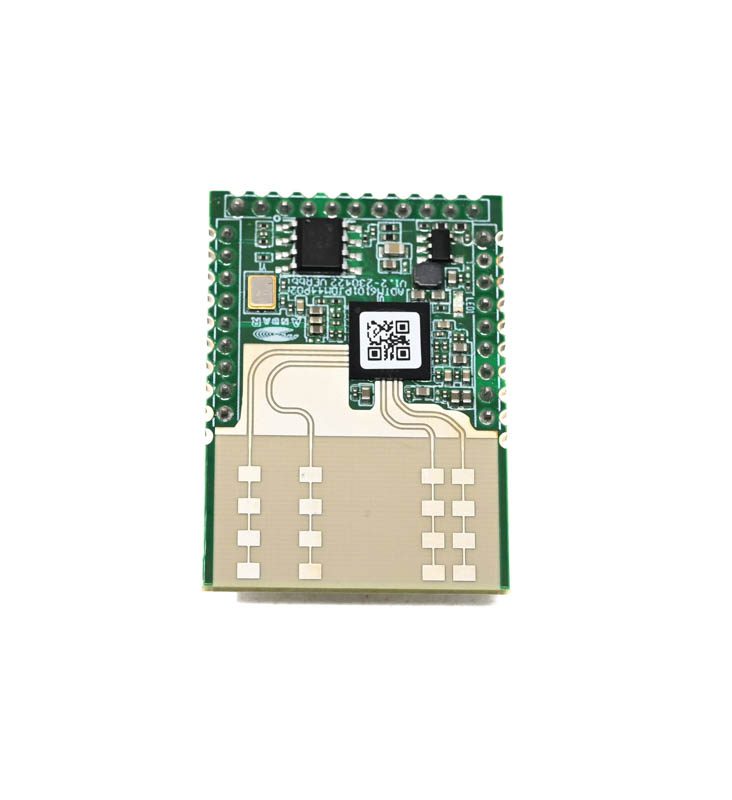

The HLK-LD6003D is a compact, high-performance 60GHz Frequency Modulated Continuous Wave (FMCW) radar module based on the ADT6101P chip. Its advanced signal processing enables it to distinguish between human motion, micro-movements (like breathing), and stationary presence, making it far more reliable than basic PIR sensors. The module features an integrated 2T2R antenna array and a Cortex-M3 microcontroller for real-time trajectory calculation and data filtering.
Engineered for environmental immunity, it operates reliably across a wide temperature range and is unaffected by ambient light, dust, or humidity variations. Its UART protocol allows for extensive parameter adjustment, including sensitivity, detection zones, and reporting intervals, facilitating seamless integration into smart home automation, security systems, occupancy-based lighting, and IoT applications.
Additional Information
| Weight | 0.15 kg |
|---|---|
| Dimensions | 11 × 11 × 2 cm |
