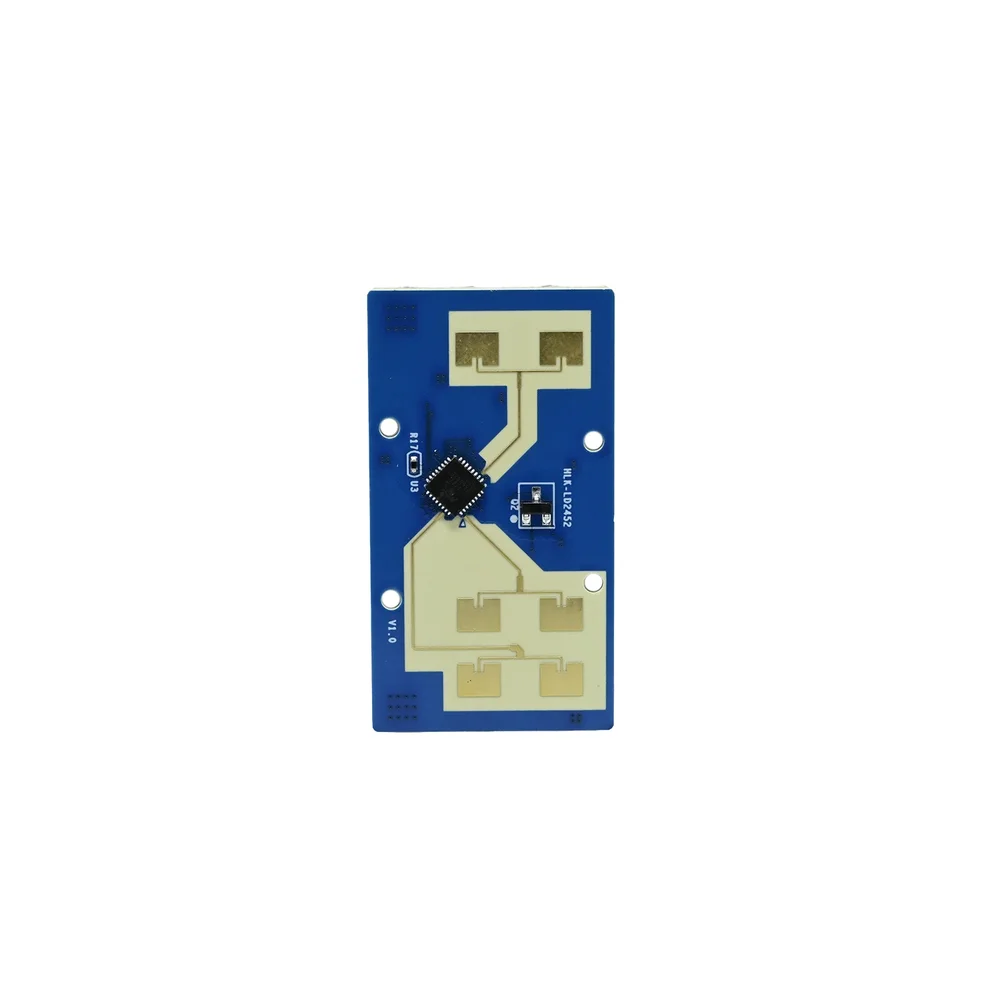

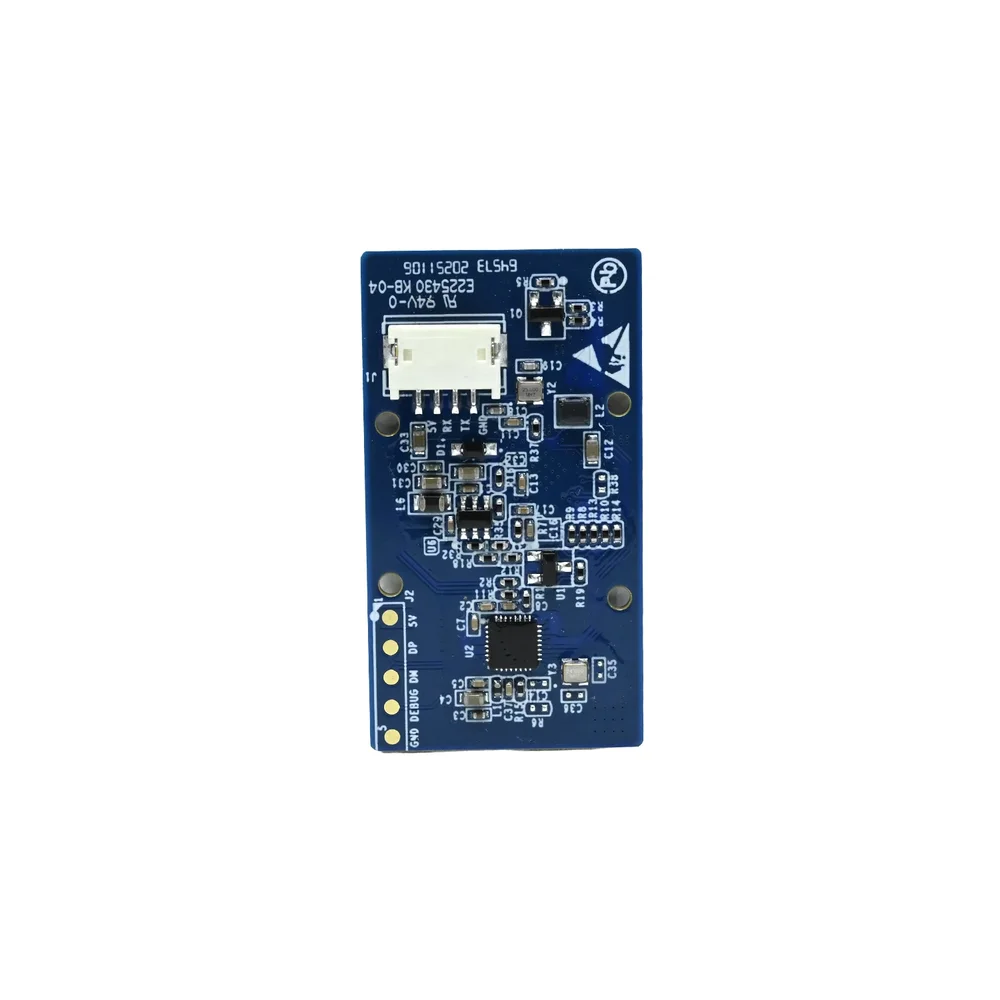

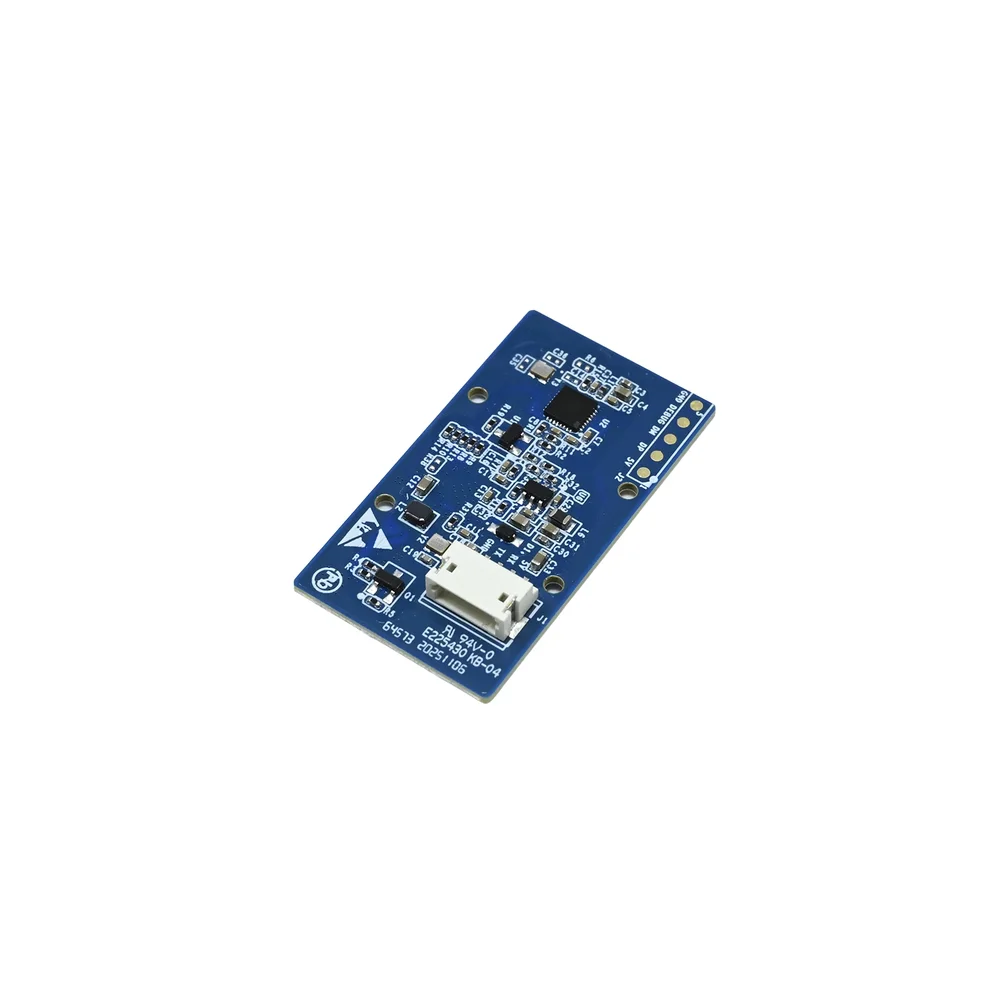

Hi-Link HLK-LD2452 24GHz Millimeter-Wave Motion Sensor Module - 5V, 60° Azimuth, ±30° Pitch, 6m Range
The Hi-Link HLK-LD2452 is a 24GHz FMCW radar motion sensor module designed for precise multi-target tracking and human presence detection. Operating from a 3.3V to 5V supply, it provides real-time distance, angle, and movement data via serial interface, making it compatible with Arduino, Raspberry Pi, ESP32, and other microcontrollers for smart automation and security applications.
Features
- 24GHz FMCW Radar Technology for precise motion and presence detection.
- Multi-Target Tracking of up to three individuals simultaneously.
- Wide-Angle Coverage with ±60° azimuth and ±30° pitch.
- Real-Time Data Output with 10Hz refresh rate for responsive control.
- Robust Operating Range from -40°C to 85°C for reliable performance.
Out of stock
The HLK-LD2452 utilizes Frequency-Modulated Continuous Wave (FMCW) radar technology in the 24GHz ISM band to detect motion, distance, and angle with high accuracy. Its advanced signal processing algorithms enable it to distinguish and track up to three targets in real-time, providing precise coordinates and velocity data. This makes it far superior to basic PIR sensors for applications requiring detailed spatial awareness.
Engineered for industrial-grade reliability, the module operates across an extended temperature range from -40°C to 85°C. Its compact 23 x 42 mm form factor and 1T2R antenna configuration are optimized for integration into space-constrained designs. The module outputs processed data via a serial UART interface, simplifying integration with host systems for immediate use in automation logic.
Additional Information
| Weight | 0.003 kg |
|---|---|
| Dimensions | 2.3 × 4.2 cm |
