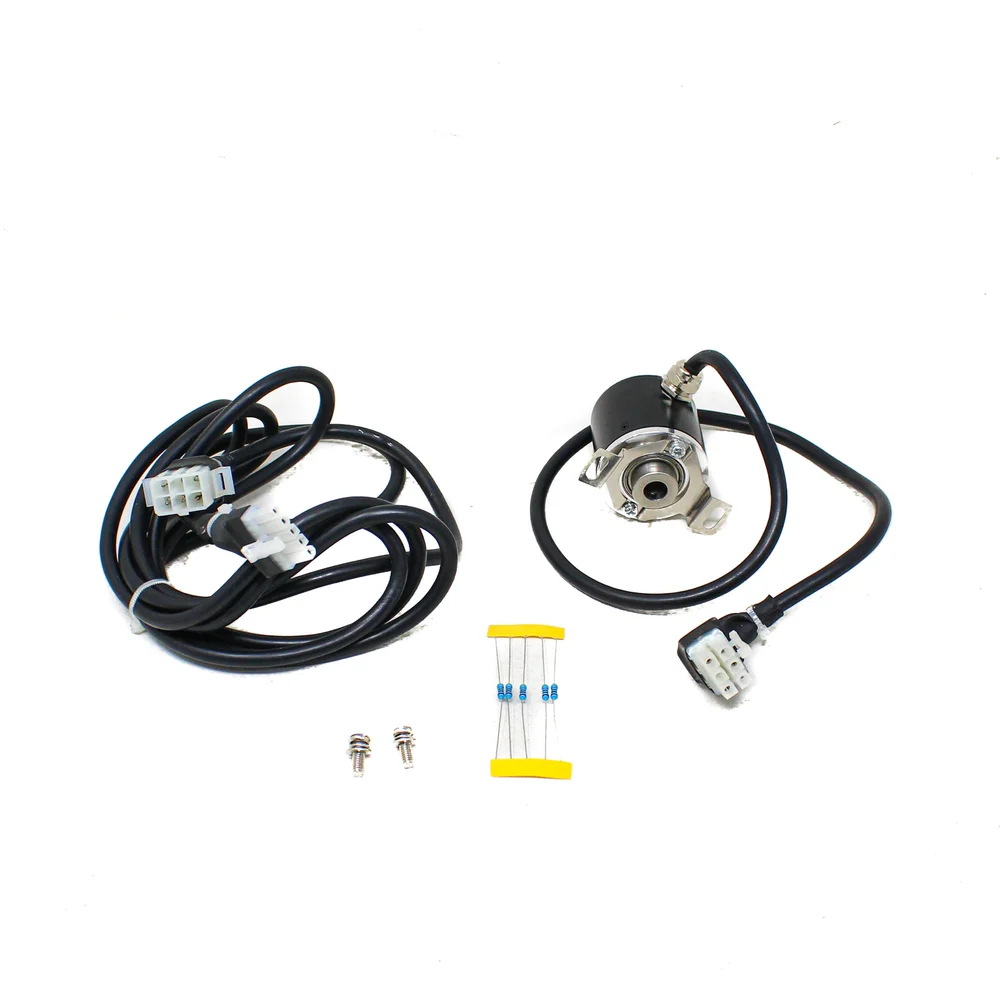

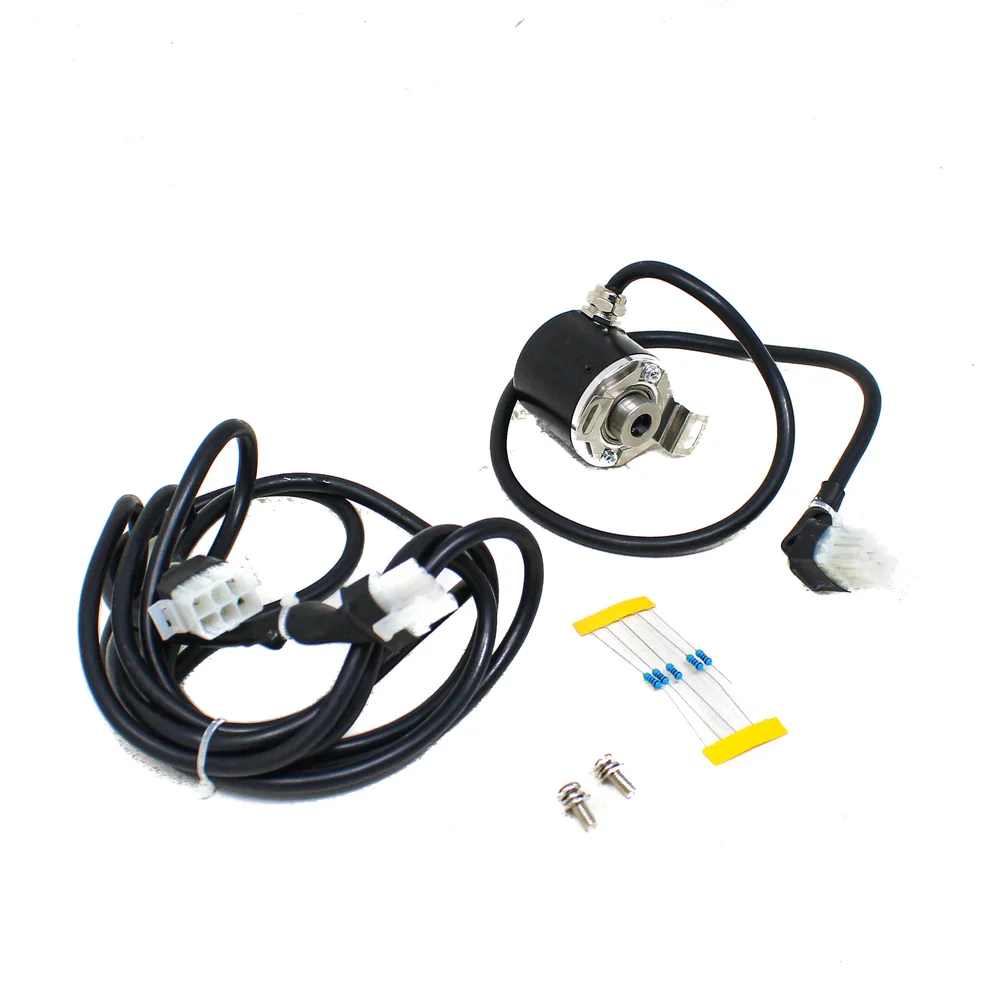

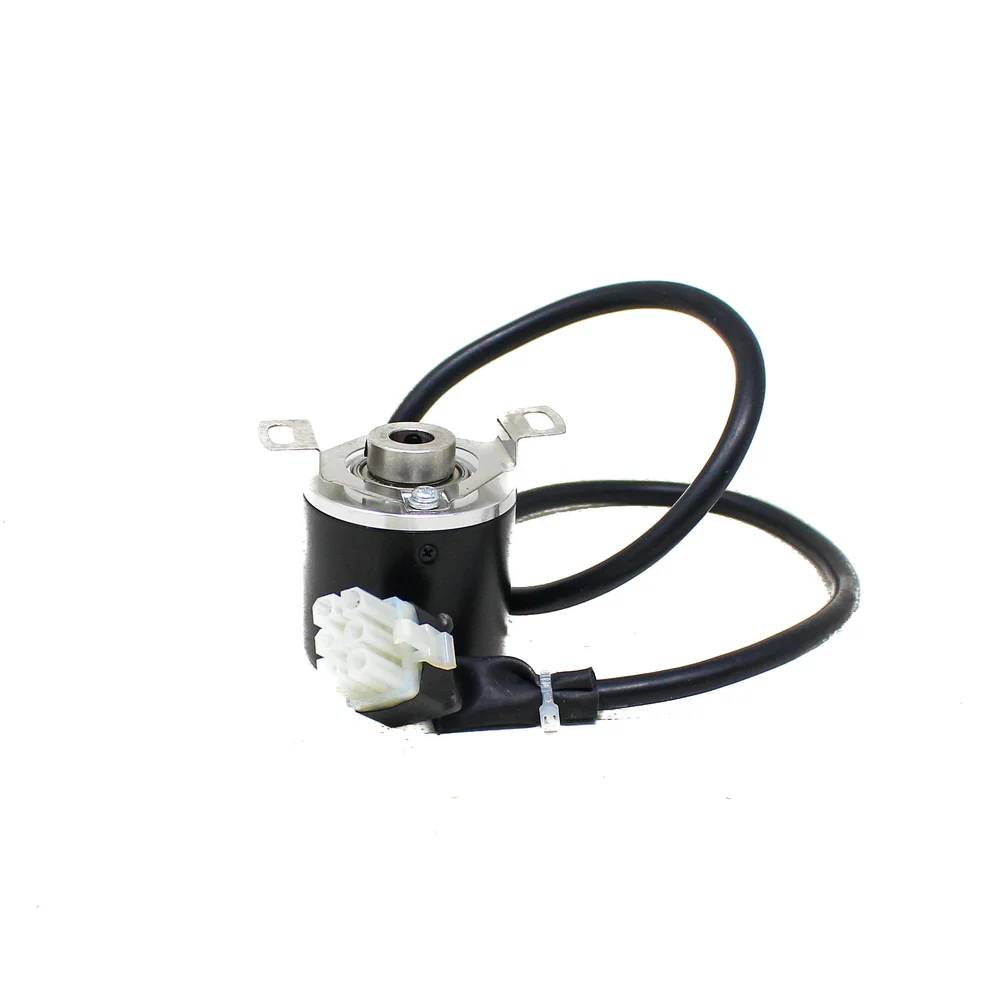

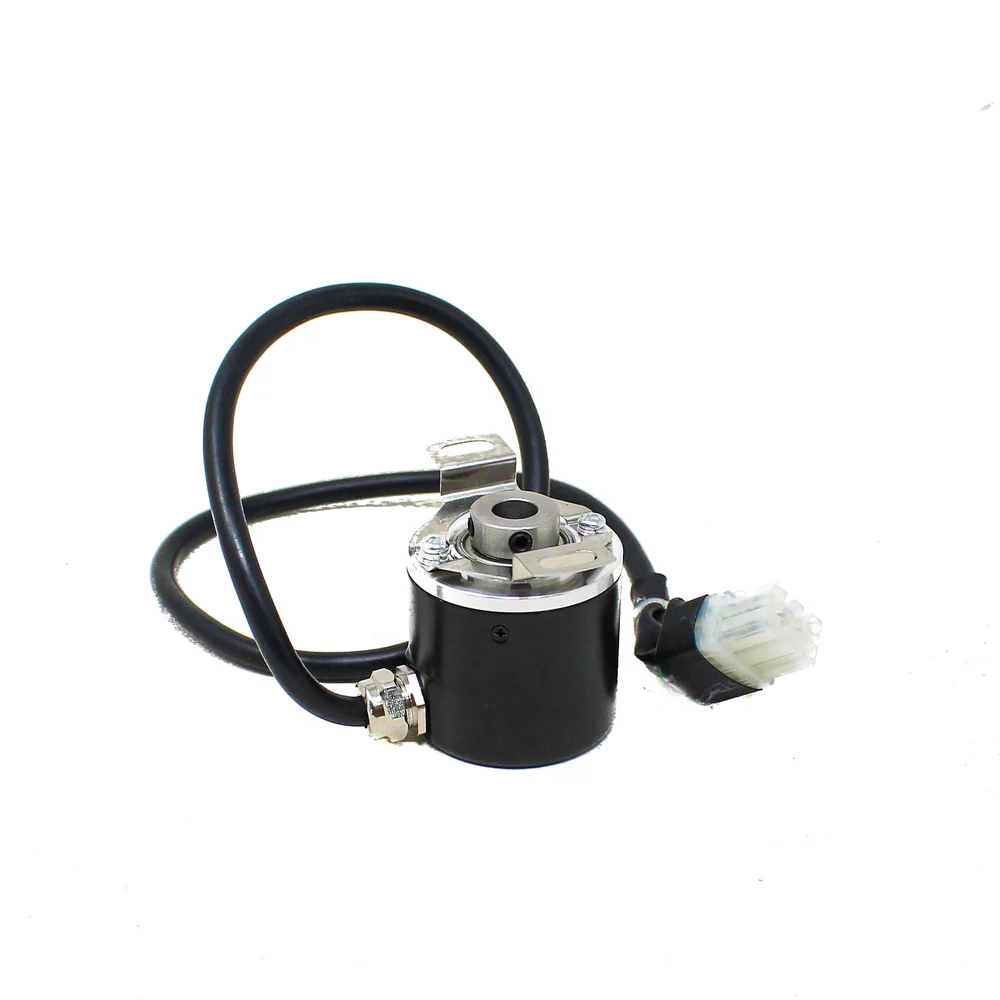

Generic Rotary Encoder 1000PPR/4000CPR with Index - Optical, IP54, NPN Open Collector, 2m Cable
This incremental optical rotary encoder delivers 1000 pulses per revolution (PPR) for precise angle, speed, and position feedback, compatible with 5-24V DC industrial PLCs, counters, and motor controllers. It features an IP54-rated housing, a stainless steel shaft, and an NPN open-collector output with a 2-meter shielded cable for robust integration.
Features
- Optical incremental encoder with 1000 PPR / 4000 CPR resolution for high-precision motion feedback.
- IP54-rated housing and waterproof cable interface for reliable operation in industrial environments.
- NPN open-collector output (A, B, Z index) compatible with 5-24V DC logic and PLC inputs.
- Stainless steel solid shaft and compact design for easy integration into machinery and robotics.
- Wide operating temperature range from -25°C to 85°C and a maximum response frequency up to 300 kHz.
Out of stock
This photoelectric incremental rotary encoder generates quadrature (A/B) and index (Z) pulse trains in response to shaft rotation, enabling precise measurement of angular displacement, speed, and acceleration. The optical sensing mechanism, based on a grating disc and optocoupler, provides high reliability and long operational life with minimal mechanical wear.
Designed for industrial automation, the encoder features an IP54 protection rating against dust and water ingress, a stainless steel shaft for durability, and a shielded 2-meter cable with a waterproof interface. The NPN open-collector output circuit requires external pull-up resistors for proper signal conditioning and protection against electrical interference, ensuring stable data transmission to counters, tachometers, and programmable logic controllers (PLCs).
Additional Information
| Weight | 0.119 kg |
|---|
