Generic PIR Motion Sensor Switch - AC 110-240V, 4-6m Range, 40mm Fitting Diameter
This AC-powered PIR motion sensor switch is designed for direct integration into 110-240V lighting circuits, featuring an adjustable time delay (15s, 45s, 5min) and a 4-6m detection range with 110° coverage for automated lighting control.
Features

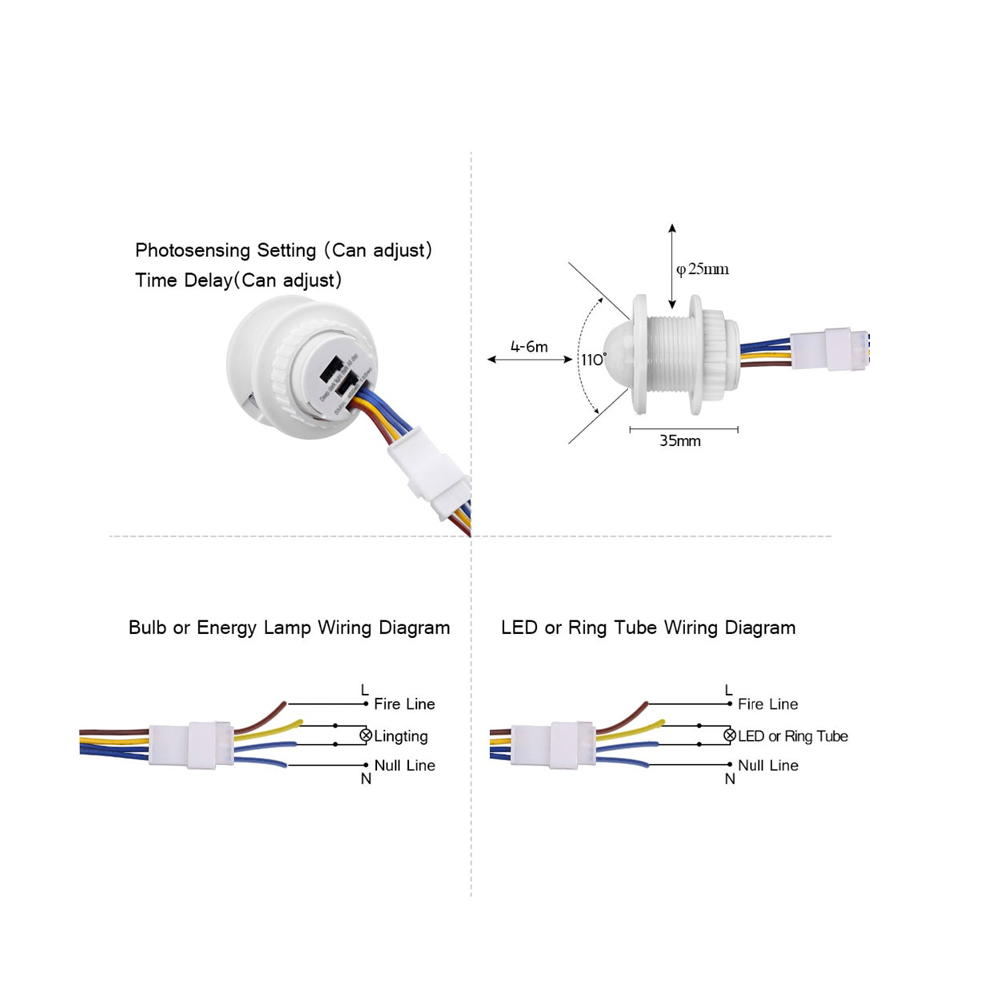

- AC 110-240V, 50/60Hz direct line voltage operation for lighting control.
- Adjustable time delay settings: 15 seconds, 45 seconds, or 5 minutes.
- 4-6 meter detection range with a wide 110-degree sensing angle.
- Configurable ambient light threshold (≤2Lux, ≤25Lux, 2000Lux) for daylight inhibition.
- Standard 40mm fitting diameter for easy recessed ceiling or wall mounting.
Out of stock
This passive infrared (PIR) motion sensor operates on standard AC line voltage, detecting human body heat signatures to automatically switch connected loads such as LED, fluorescent, or energy-saving lamps. It incorporates a pyroelectric sensor element that triggers upon detecting infrared radiation changes within its field of view.

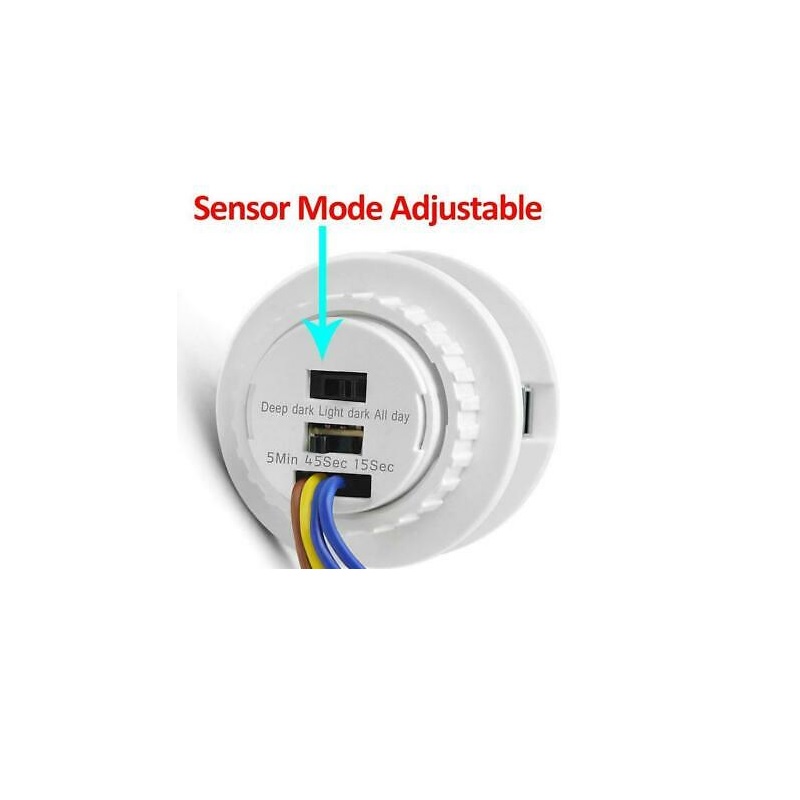

The module includes user-configurable settings for time delay and ambient light sensitivity, allowing customization for specific environments like hallways, stairwells, or storage rooms. Its compact design and standard 40mm mounting diameter facilitate straightforward installation into standard electrical junction boxes or light fixtures.
Additional Information
| Weight | 0.05 kg |
|---|---|
| Dimensions | 4.5 × 4 cm |
