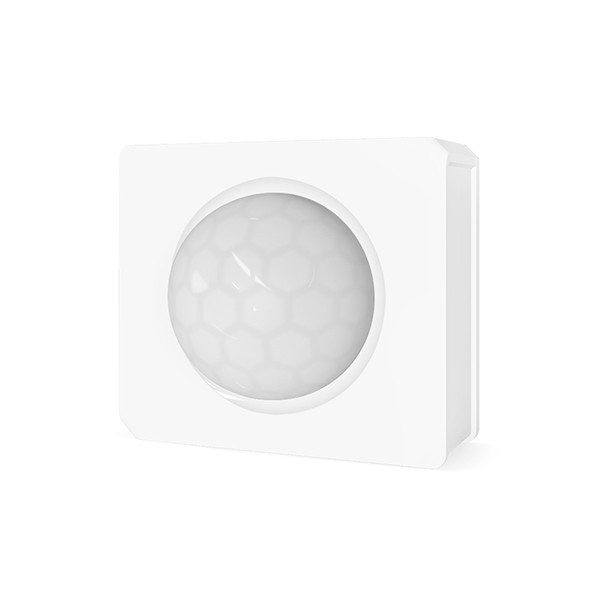

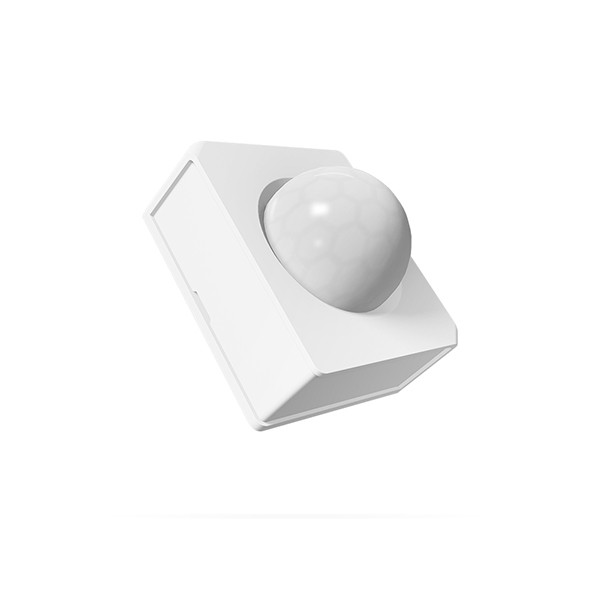

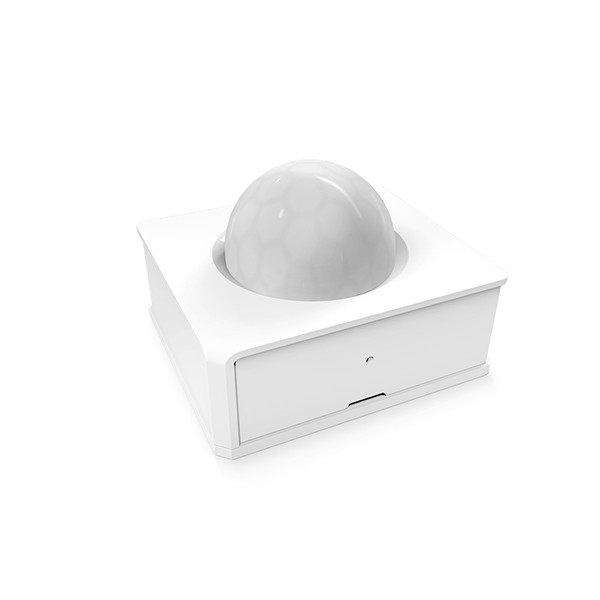

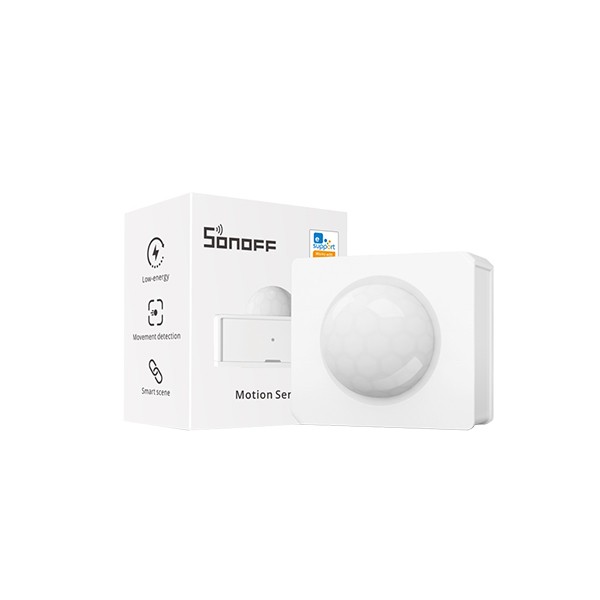

Sonoff PIR3-RF 433MHz RF PIR Motion Sensor
The Sonoff PIR3-RF is a compact, battery-powered passive infrared (PIR) motion sensor operating on the 433MHz RF band, designed for integration into wireless home automation and security systems via the Sonoff RF Bridge.
Features
- 433MHz RF wireless communication for flexible, cable-free installation.
- Passive Infrared (PIR) detection up to 8 meters with a 100° wide-angle field of view.
- Powered by a single 3V CR2450 button cell battery for long-term, low-maintenance operation.
- Features adjustable universal joint mount for 360° horizontal and 90° vertical positioning.
- Supports two trigger modes: Alert Mode (5-second trigger) and Normal Mode (1-minute cooldown).
Out of stock
The Sonoff PIR3-RF utilizes a passive infrared (PIR) sensing element to detect the movement of warm bodies, such as humans or pets, within its detection zone. It transmits detection events wirelessly via 433MHz RF signals, enabling seamless integration with compatible Sonoff RF Bridges and smart home ecosystems for automated lighting, security alerts, and scene triggering.
Engineered for versatile deployment, the sensor housing is constructed from PC V0 flame-retardant material and operates reliably within an indoor temperature range of -10°C to 40°C. Its compact form factor and multiple mounting options—including a 3M adhesive pad and a screw-mount universal joint—allow for optimal placement in hallways, rooms, or entryways to maximize coverage and detection accuracy.
Additional Information
| Weight | 0.13 kg |
|---|---|
| Dimensions | 6 × 8 × 3 cm |
