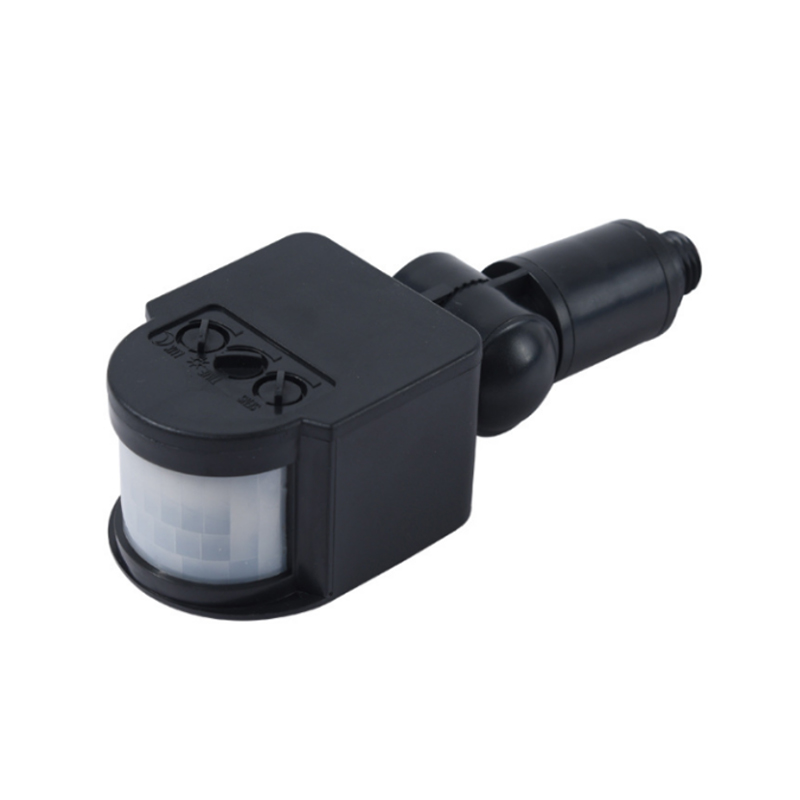

Generic Infrared PIR Motion Sensor Module - DC 12V / AC 85-265V, 180° Detection, Adjustable Delay

This module supports a wide dual-voltage input: 12V DC or 85-265V AC. Ensure your power supply matches one of these ranges and is capable of delivering the required current for both the sensor and the connected lighting load.

The unit features onboard potentiometers for adjustment. Typically, one pot controls the detection sensitivity (range), and another sets the relay hold time (delay) from 15 seconds to 9 minutes after motion ceases. Refer to the product's internal labeling for precise control locations.

Yes, but it includes an ambient light sensor (LUX setting) that can be adjusted. You can set a threshold (2-2000 LUX) so the motion trigger only activates the lights when the ambient light falls below your chosen level, making it ideal for night-only operation or dim areas.

The built-in relay can switch standard lighting loads, including incandescent, LED, and fluorescent fixtures. Check the relay's maximum current rating (not provided in scraped data) to ensure it does not exceed the switch's capacity for your specific lights.

The ABS housing offers basic weather resistance, but the module lacks a specified IP rating. It is best suited for sheltered outdoor locations (under eaves, in covered entryways) or strictly indoor use to prevent direct water ingress and ensure long-term reliability.
