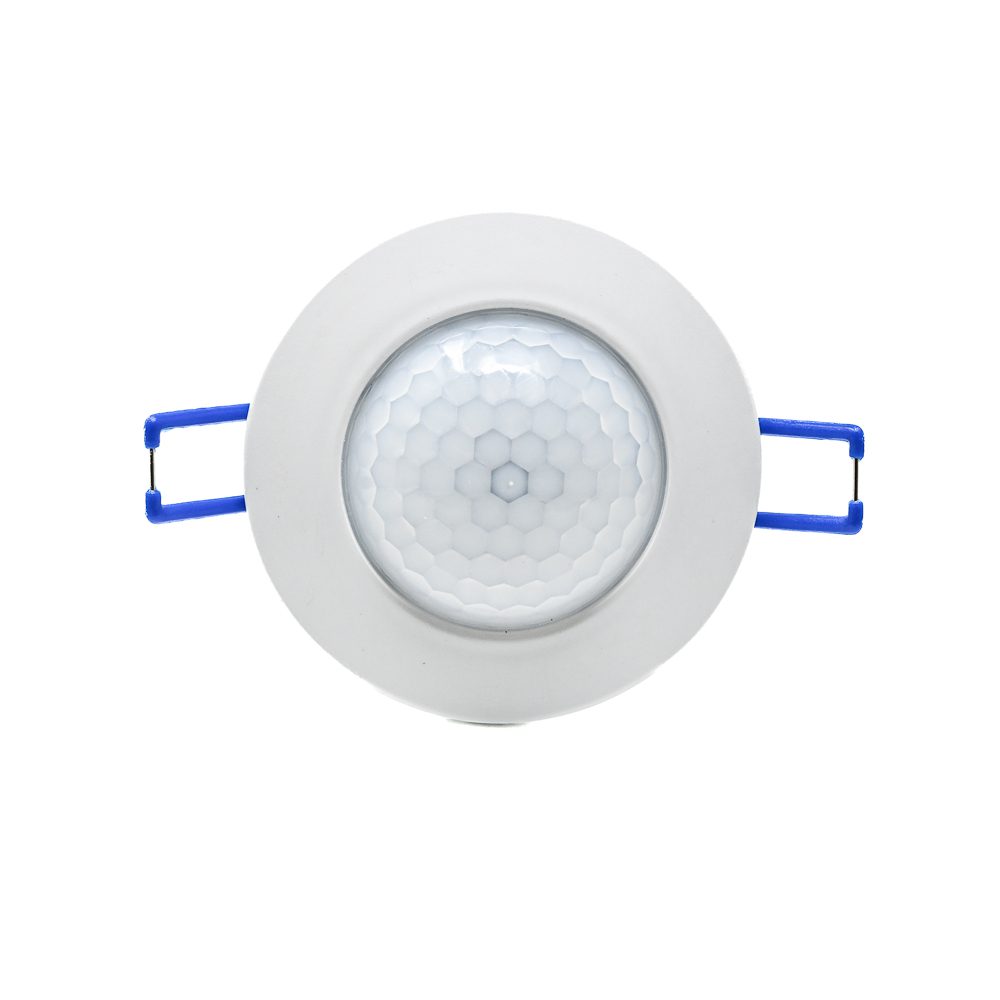

PQ07 Human Infrared Sensor AC100-240V - 360° PIR Motion Detector
The PQ07 is a passive infrared (PIR) motion sensor module designed for AC line voltage (100-240V) control applications. It provides 360° detection coverage for human movement, integrating automatic day/night sensing and adjustable time delay for energy-efficient lighting and security system automation.
Features
- 360° wide-angle passive infrared (PIR) motion detection with a range up to 6 meters.
- Direct AC line voltage operation (100-240V AC) with low power consumption (0.45W active).
- Integrated light sensor for automatic day/night mode operation.

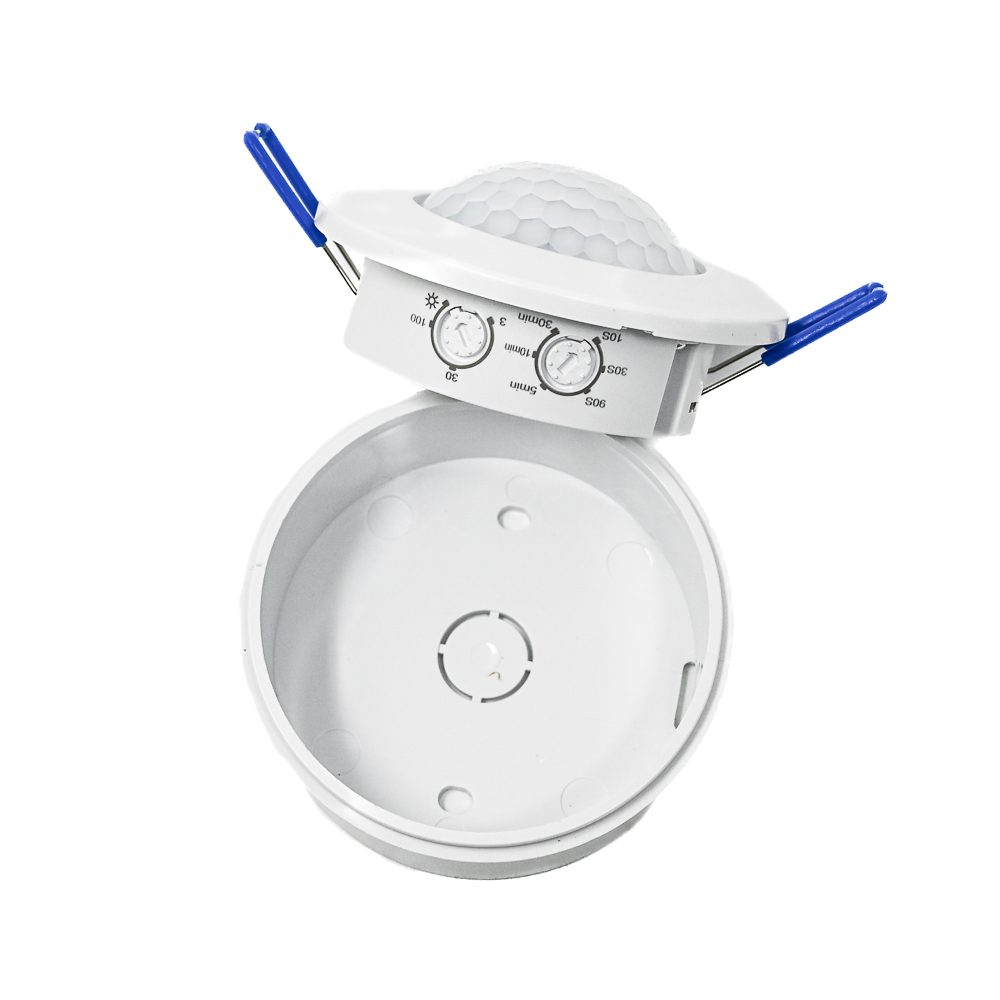

- User-adjustable time delay from 10 seconds to 30 minutes.
- Optimized for human detection speed (0.6–1.5 m/s) within an operating temperature of -10°C to +40°C.
Out of stock
The PQ07 Human Infrared Sensor utilizes a high-sensitivity pyroelectric infrared (PIR) detector and signal conditioning IC to reliably sense the infrared energy emitted by moving human bodies. This detection triggers a built-in relay to control connected AC loads such as lights, fans, or alarms. The module incorporates automatic ambient light sensing to disable operation during daylight hours, maximizing energy savings.
Designed for direct integration into 100-240V AC systems, it features a compact form factor suitable for ceiling or wall mounting at recommended heights of 2.5–3.5 meters. Its robust design supports operation in environments with up to 93% relative humidity, making it suitable for indoor residential, office, and commercial security and automation applications.
Additional Information
| Weight | 0.082 kg |
|---|---|
| Dimensions | 10.5 × 8.2 cm |
