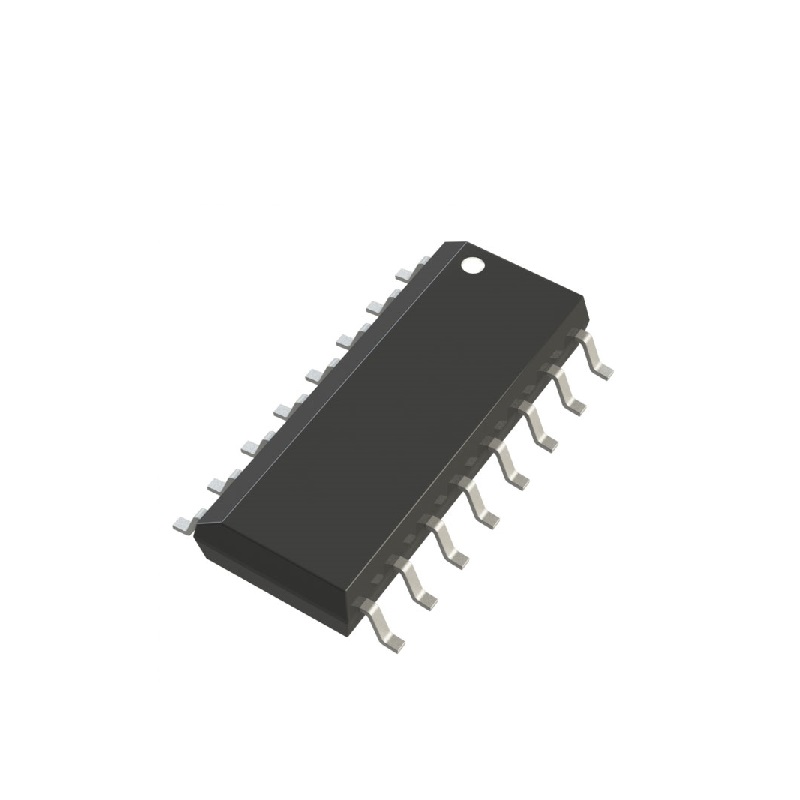

Diodes Incorporated PT8A2648WEX PIR Sensor Light Switch SOIC-16 Human Body Sensor
The Diodes Incorporated PT8A2648WEX is a SOIC-16 packaged PIR sensor IC designed for human body detection in light switch and occupancy sensing applications. It operates at 5V and integrates signal conditioning for reliable motion detection.
Features
- SOIC-16 integrated PIR sensor and control IC for human motion detection.
- 5V operating voltage compatible with standard logic levels and microcontroller systems.
- Wide operating temperature range from -20°C to 70°C for indoor applications.
- High-sensitivity pyroelectric element for reliable occupancy sensing.
- ROHS compliant, lead-free construction for global environmental standards.
Out of stock
The PT8A2648WEX from Diodes Incorporated is a fully integrated passive infrared (PIR) sensor module in a compact SOIC-16 package. It combines a pyroelectric sensor with signal conditioning circuitry to detect infrared radiation changes caused by human body movement. The IC is engineered for applications like automatic light switches, security systems, and energy-saving occupancy detectors.
Its internal design includes amplifiers, comparators, and a digital output driver, simplifying integration and reducing external component count. The device is optimized for stable performance across its specified temperature range, making it suitable for integration into consumer and commercial building automation systems.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 10 × 8 × 3 cm |
