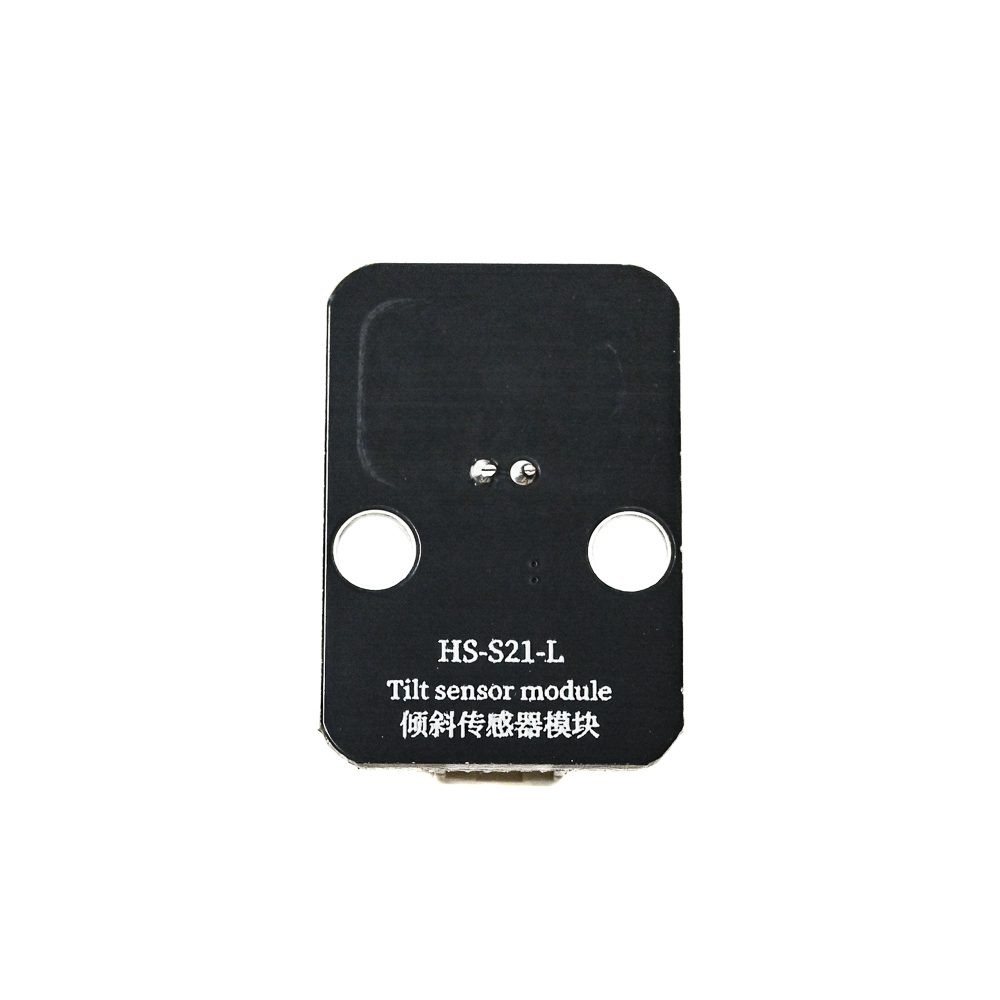

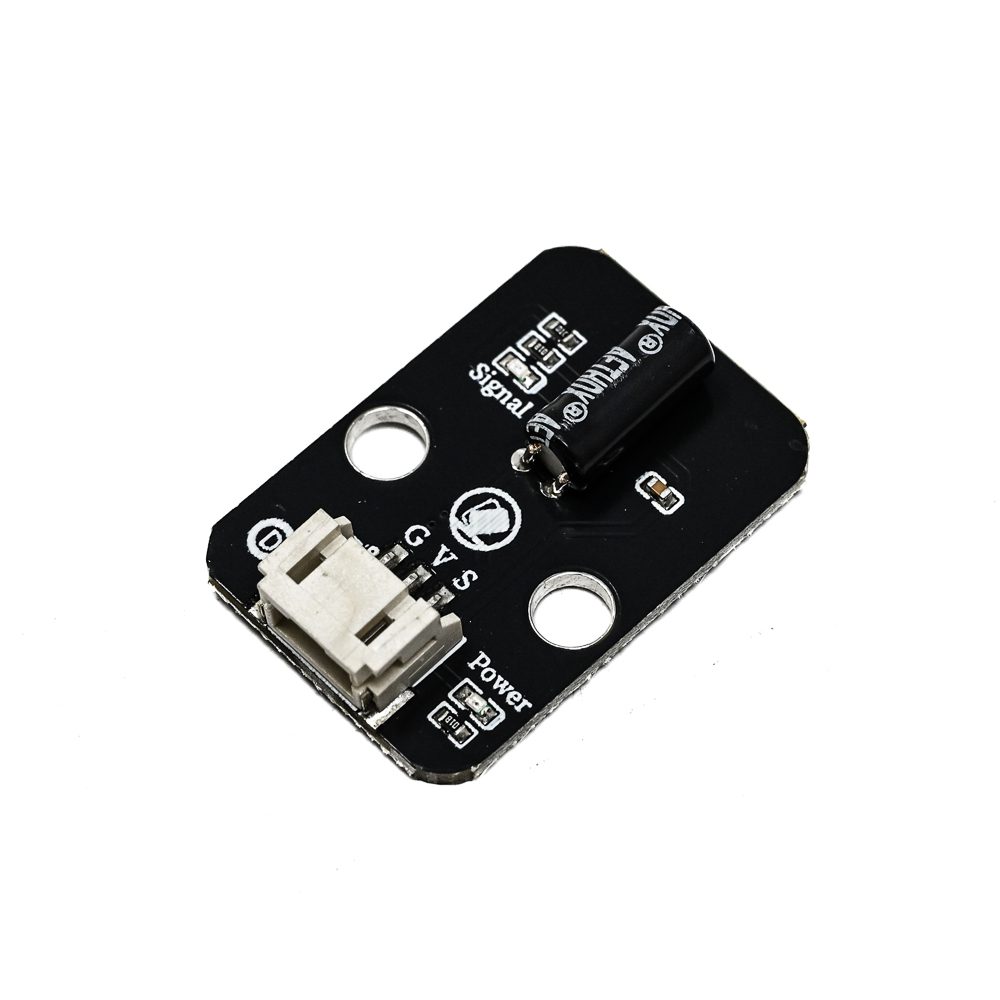

Generic HS-S21-L Four-Way Tilt Sensor - PH2.0 3P Interface
The HS-S21-L is a compact digital tilt sensor module designed for detecting orientation changes in four primary directions. It provides a simple digital output signal for easy interfacing with microcontrollers like Arduino, Raspberry Pi, and ESP32, making it ideal for motion-activated projects and robotics.
Features
- Four-directional digital tilt detection (up, down, left, right)
- Wide operating voltage range of 3.3V to 5.5V for 3.3V/5V logic compatibility
- Compact footprint measuring 33mm x 23mm for space-constrained designs
- PH2.0 3-pin connector for reliable and secure electrical connection
- Low power consumption suitable for battery-powered portable devices
Out of stock
The HS-S21-L tilt sensor operates on a simple mechanical switch principle, where internal conductive elements make contact to close a circuit when tilted beyond a specific angle threshold. This action generates a clean digital signal on its output pin, providing a straightforward method for detecting orientation changes without complex signal conditioning.
Its robust construction ensures reliable performance in various applications, from educational projects to prototype development. The module’s specified voltage range allows seamless integration with both 3.3V and 5V microcontroller systems, offering flexibility in electronic design.
Additional Information
| Weight | 0.003 kg |
|---|---|
| Dimensions | 2.3 × 3.3 cm |
