PB05W Human Infrared Sensor AC220-240V - 180° Detection, Adjustable Delay
The PB05W is a passive infrared (PIR) motion sensor module designed for direct integration into 220-240V AC lighting and device control circuits. It features a 180° Fresnel lens, adjustable sensitivity, and a configurable delay timer for automated activation in residential and commercial security systems.
Features
- AC220-240V Direct Line Voltage Operation

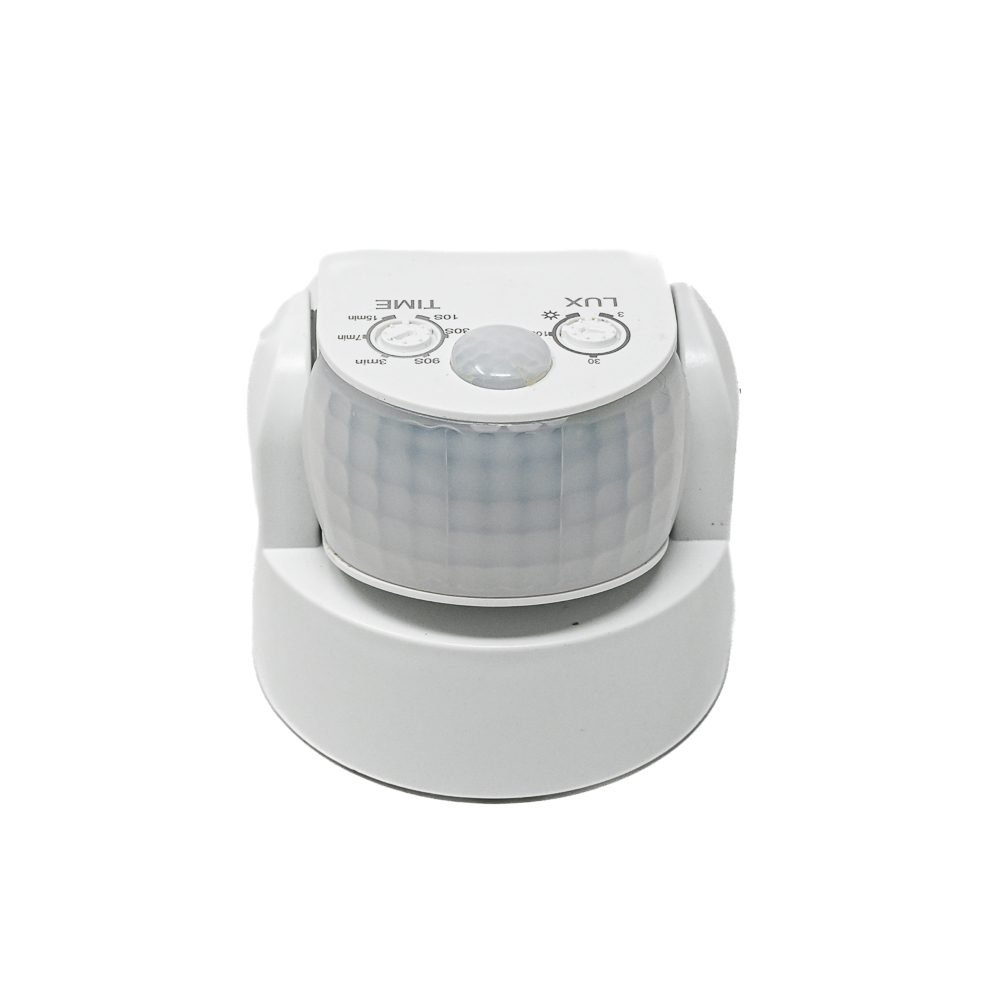

- 180° Wide-Angle Detection with Adjustable Fresnel Lens
- Configurable Delay Time (8 Seconds to 7 Minutes)

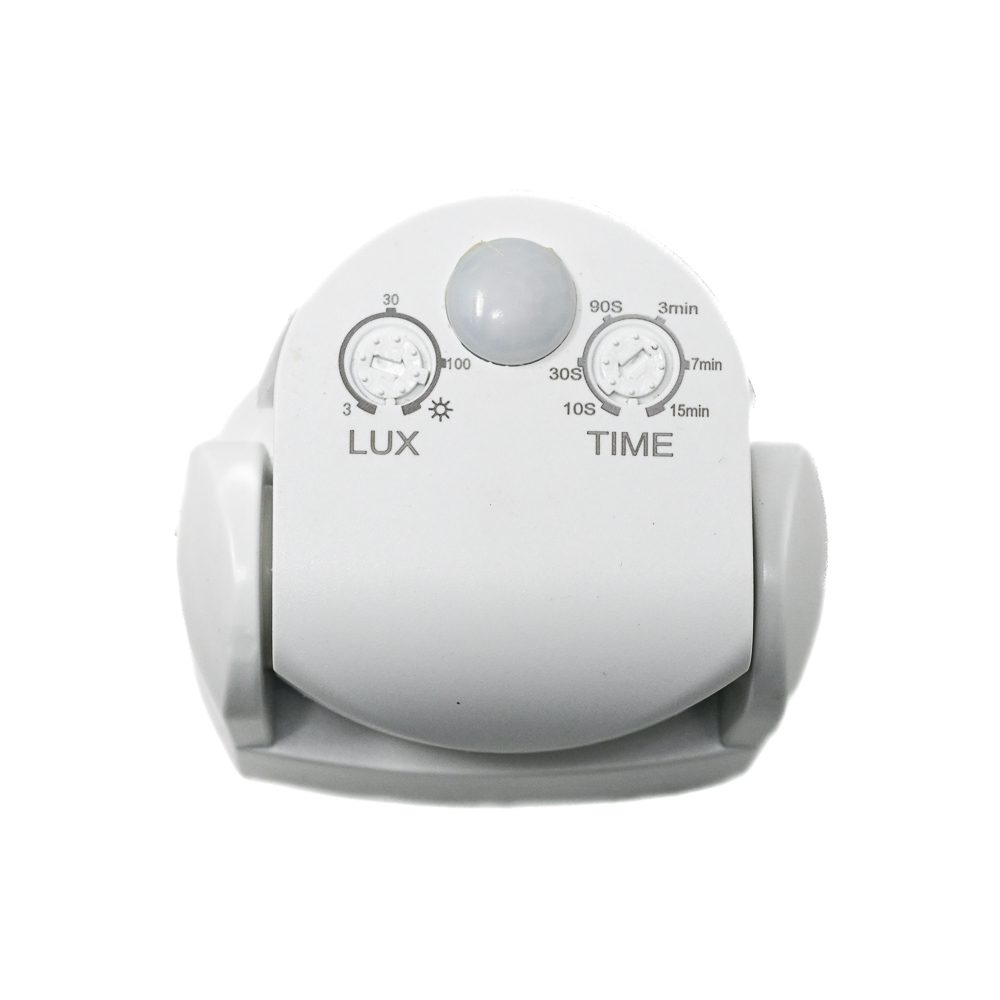

- Light Sensitivity Adjustment (Day/Night Mode)
- Flame-Retardant Housing for Enhanced Safety
Out of stock
The PB05W Human Infrared Sensor operates on the principle of pyroelectric infrared (PIR) detection. It senses changes in infrared radiation caused by moving heat sources, such as a human body, within its 12-meter range. The integrated signal conditioning circuitry filters noise and triggers a solid-state relay to control the connected AC load.
Constructed with a flame-retardant housing, the sensor is designed for reliable long-term operation in indoor environments with up to 93% relative humidity. Its adjustable detection direction and light sensitivity settings allow for precise customization based on installation location and ambient lighting conditions, optimizing both security coverage and energy efficiency.
Additional Information
| Weight | 0.124 kg |
|---|---|
| Dimensions | 7 × 6.6 cm |
