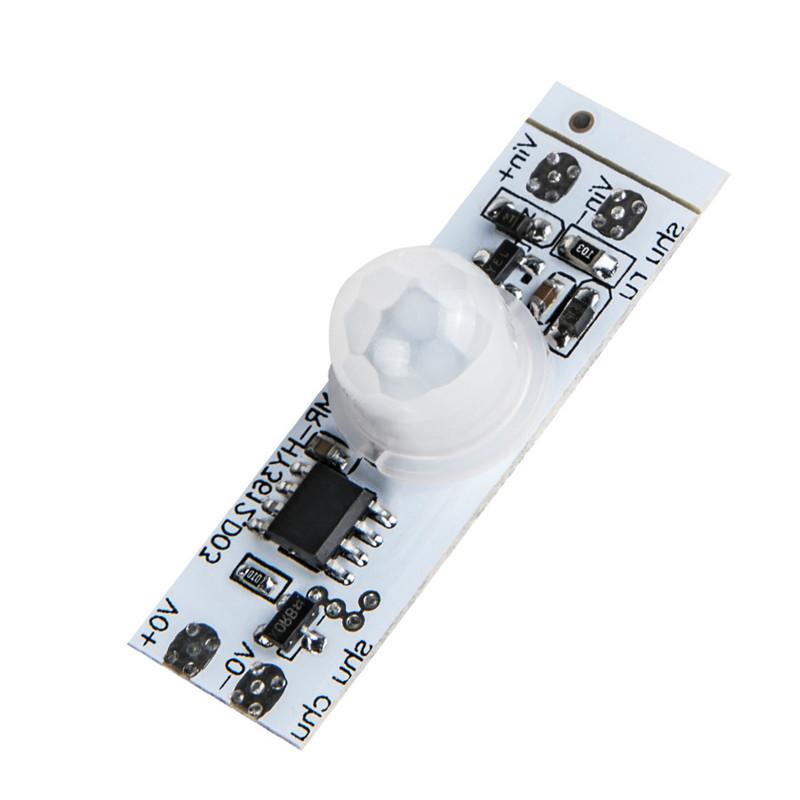

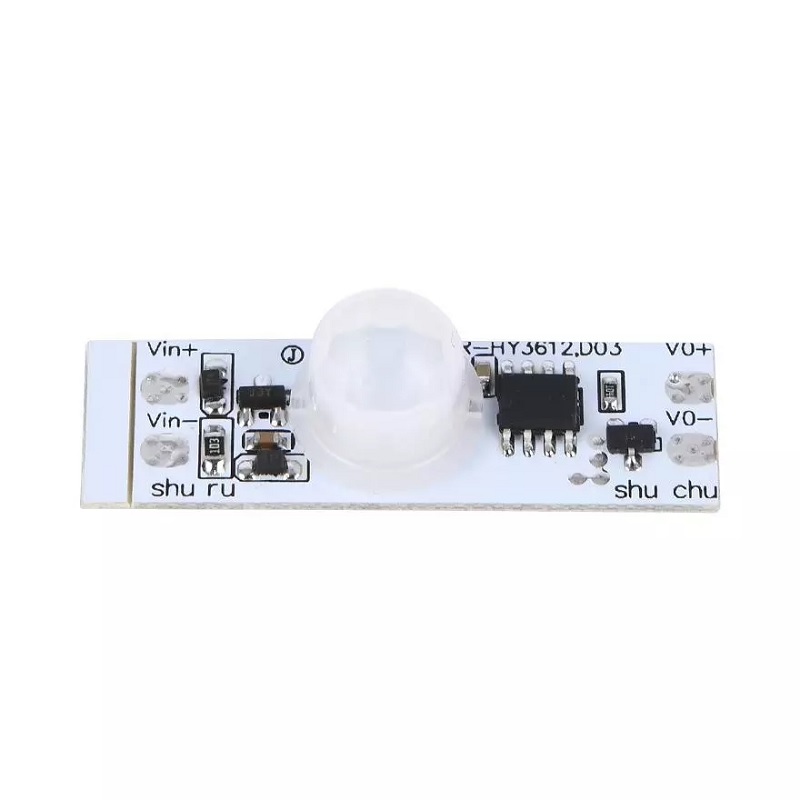

Generic DC 12V/24V Ceiling PIR Motion Sensor Switch Module - 3A Load, 120° Range
This DC-powered ceiling-mount PIR motion sensor switch operates on 12-24V DC, providing a 3A load control for automated lighting systems. It features a 120° detection angle and a 1-3M range, with an adjustable 20-60 second delay for energy-efficient operation.
Features
- 12-24V DC Input with 3A Load Switching Capacity
- 120° Wide-Angle Passive Infrared (PIR) Detection Field
- 1-3 Meter Detection Distance for Human Movement
- Adjustable 20-60 Second Relay Delay Timer
- Ceiling-Mount Design for Overhead Coverage
Out of stock
This ceiling-mounted PIR motion sensor module utilizes passive infrared technology to detect the presence and movement of a human body within its field of view. It is designed for direct integration into 12V or 24V DC lighting systems, acting as an automatic switch to control loads up to 3A. The module features a wide 120-degree conical detection pattern, making it suitable for overhead installation in rooms, hallways, or storage areas.
The sensor’s operation is governed by a built-in timing circuit, allowing the relay output to remain active for a user-adjustable period between 20 and 60 seconds after motion ceases. This delay function prevents rapid cycling and enhances energy savings. Its compact form factor and straightforward wiring terminals facilitate easy installation into existing DC power and load circuits.
Additional Information
| Weight | 0.015 kg |
|---|---|
| Dimensions | 2 × 5 × 1 cm |
