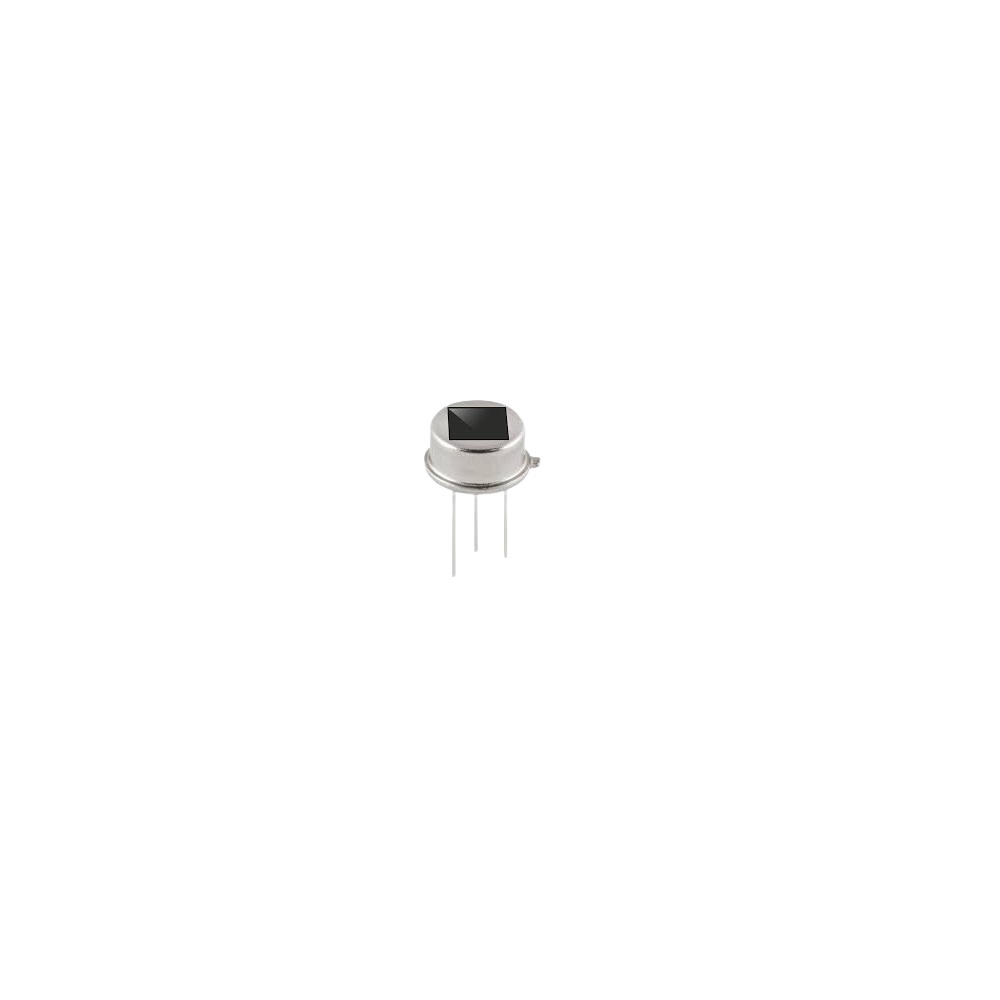

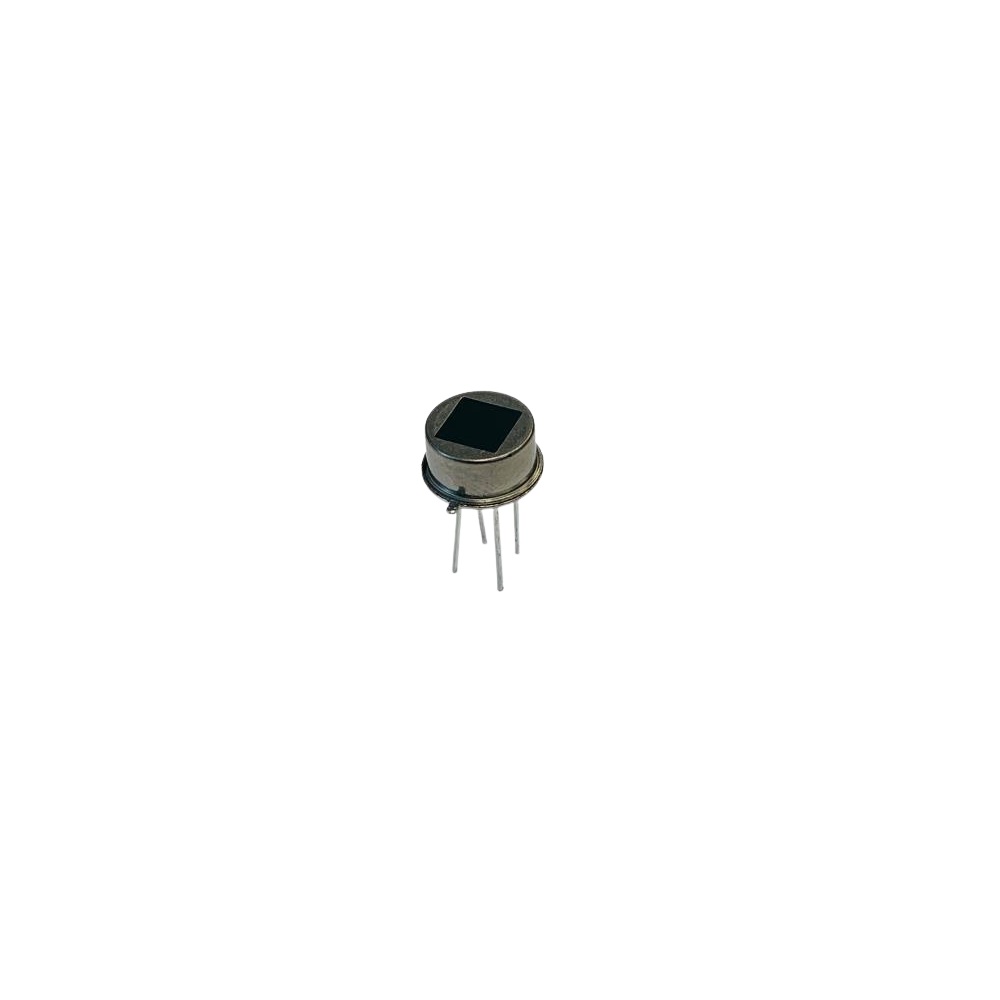

Senba G2X2 Quad Four-element PIR Sensor Module - 3-15V DC, 120° Detection Angle
The Senba G2X2 is a quad-four-element PIR sensor module designed as a direct replacement for Excelitas PYQ1348/PYQ1398 sensors. Operating from 3-15V DC, it provides reliable motion detection for security systems, occupancy sensing, and automated lighting control applications.
Features
- Quad-four-element PIR array for enhanced sensitivity and reduced false alarms
- Wide 3-15V DC operating voltage range with low power consumption (<3mA)
- Up to 8-meter detection range with a 120° horizontal and vertical detection angle
- Direct drop-in replacement for Excelitas PYQ1348/PYQ1398 sensor modules
- High-sensitivity, adjustable detection for slight movement recognition
Out of stock
The G2X2 PIR sensor module utilizes a quad-four-element pyroelectric infrared detector array to sense changes in thermal radiation caused by moving warm-bodied objects. This advanced multi-element design significantly improves signal-to-noise ratio and spatial discrimination compared to single-element sensors, resulting in more reliable motion detection and greater immunity to environmental disturbances.
The module features integrated signal conditioning circuitry that outputs a clean digital signal (high: 3-15V, low: 0V) upon detection, making it directly compatible with microcontrollers, PLCs, and alarm panels. Its robust construction and wide operating temperature range (-20°C to 70°C) ensure stable performance in diverse indoor environments.
Additional Information
| Weight | 0.03 kg |
|---|---|
| Dimensions | 3 × 5 × 1 cm |
