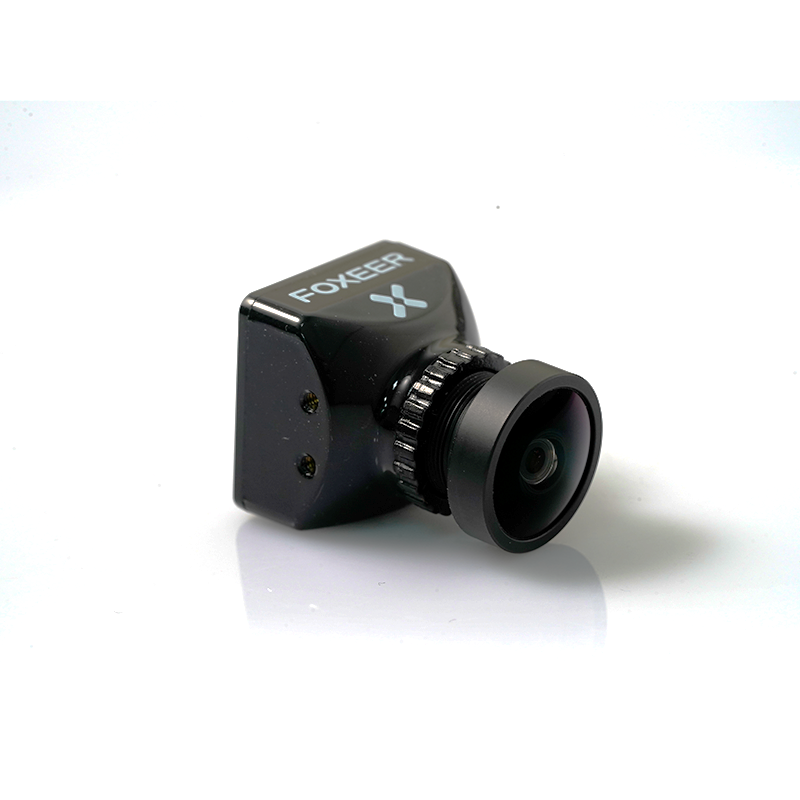

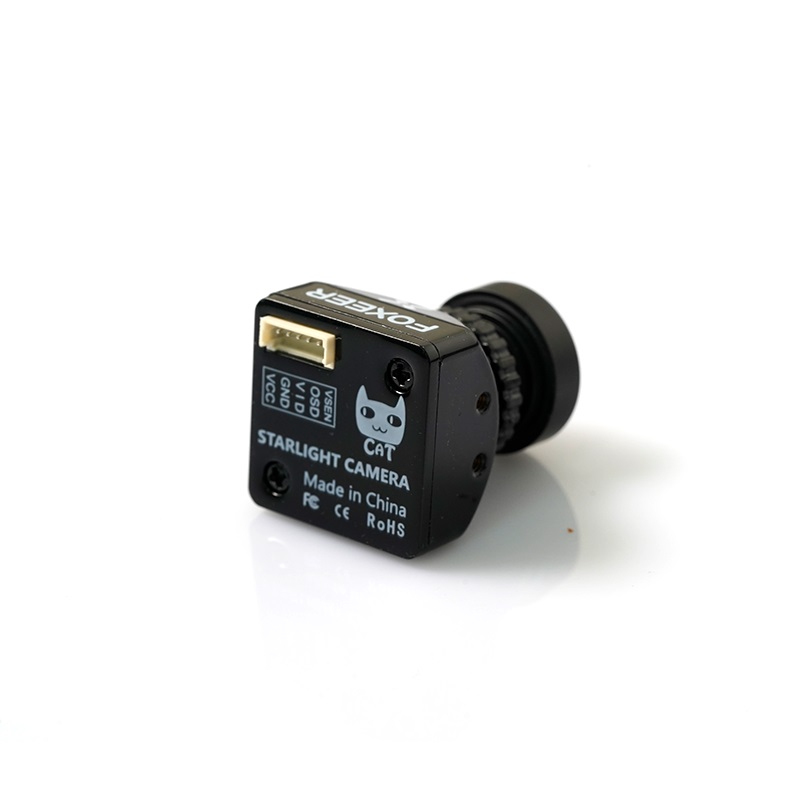

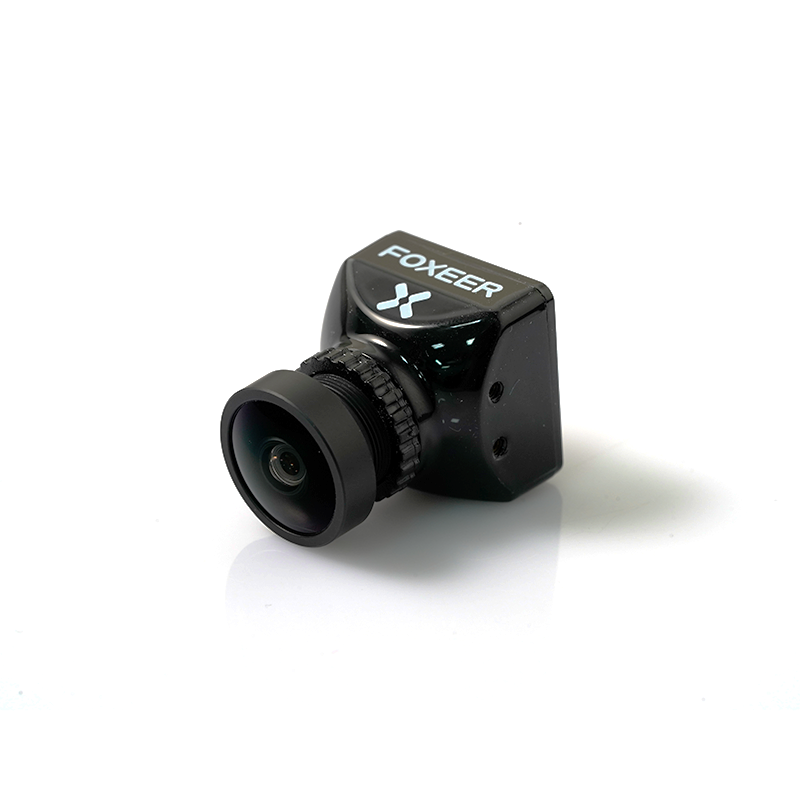

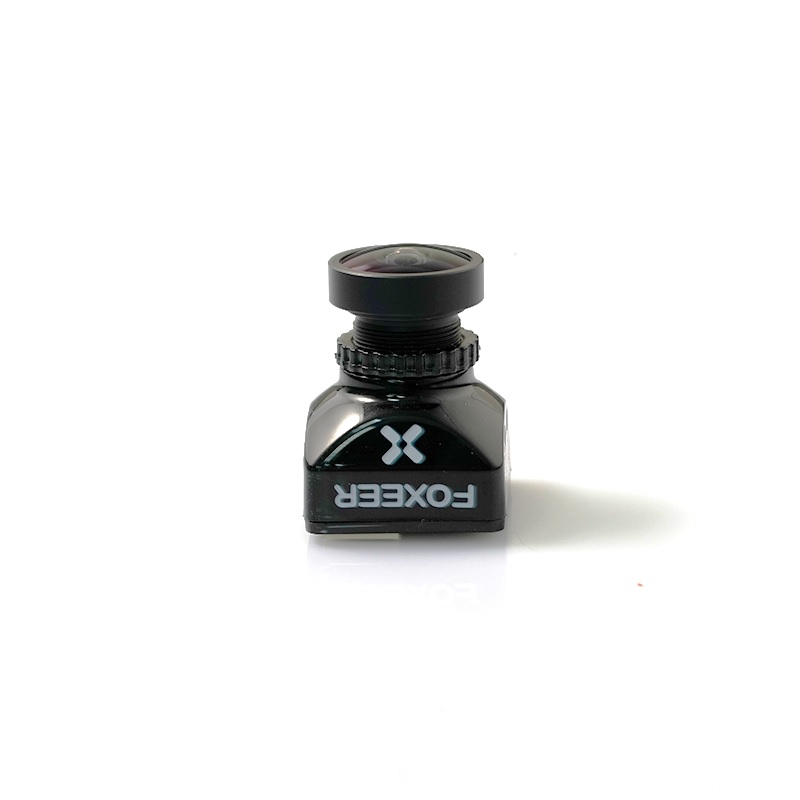

Foxeer Cat 4 Mini FPV Camera - Black
The Foxeer Cat 4 Mini FPV Camera is a compact analog camera featuring a Sony 1/3″ CMOS sensor, 1200TVL resolution, and a wide 4.6V-20V input range for robust FPV racing and freestyle drone builds.
Features
- Sony 1/3″ CMOS sensor delivers 1200TVL resolution with 100dB WDR for high-contrast, low-latency analog video.
- Ultra-wide 4.6V to 20V input voltage compatibility supports direct connection to 2S-6S LiPo batteries.
- Switchable 4:3/16:9 aspect ratio and PAL/NTSC TV systems for flexible setup across global regions.
- M12 2.1mm low-light lens with 0.00001Lux sensitivity ensures clear vision in challenging lighting conditions.
- Compact 22x22mm form factor with integrated OSD for voltage, camera tilt, and time display via Foxeer FC.
Out of stock
The Foxeer Cat 4 Mini is engineered for pilots demanding high-performance analog video in a minimal footprint. Its Sony sensor and advanced 3DNR processing provide a clean, low-noise signal essential for high-speed proximity flying and precise gate navigation. The camera’s robust 100dB Wide Dynamic Range (WDR) preserves detail in both shadows and highlights, preventing washed-out skies and dark shadows during rapid light transitions.
Built for durability, the Cat 4 Mini operates across an extensive temperature range and features a comprehensive voltage regulator, eliminating the need for external BECs. The integrated OSD board allows for direct menu navigation and telemetry overlay configuration when paired with compatible Foxeer flight controllers, streamlining the build process. Its all-metal housing and M12 lens thread ensure secure mounting and resistance to vibration in aggressive flight environments.
Additional Information
| Weight | 0.051 kg |
|---|---|
| Dimensions | 6 × 5 × 5 cm |
