Arducam 16MP IMX519 NOIR Camera Module for Raspberry Pi

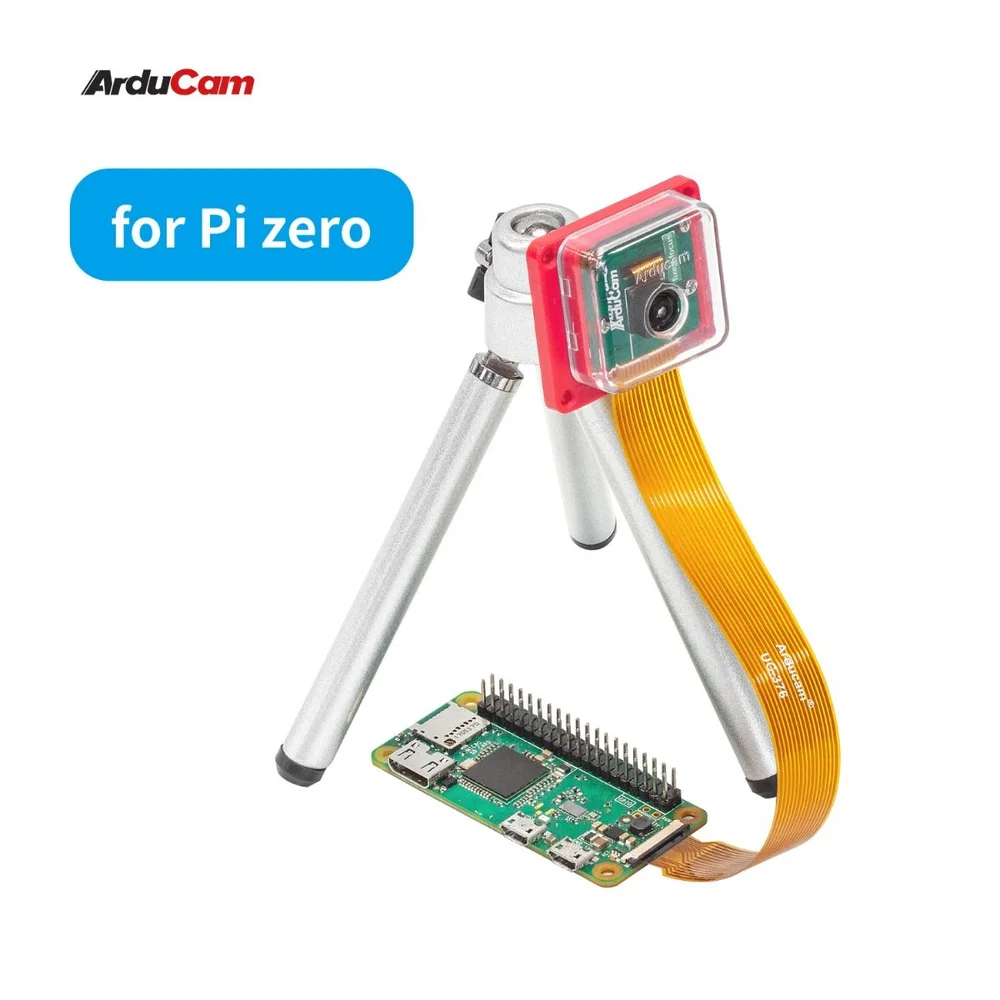

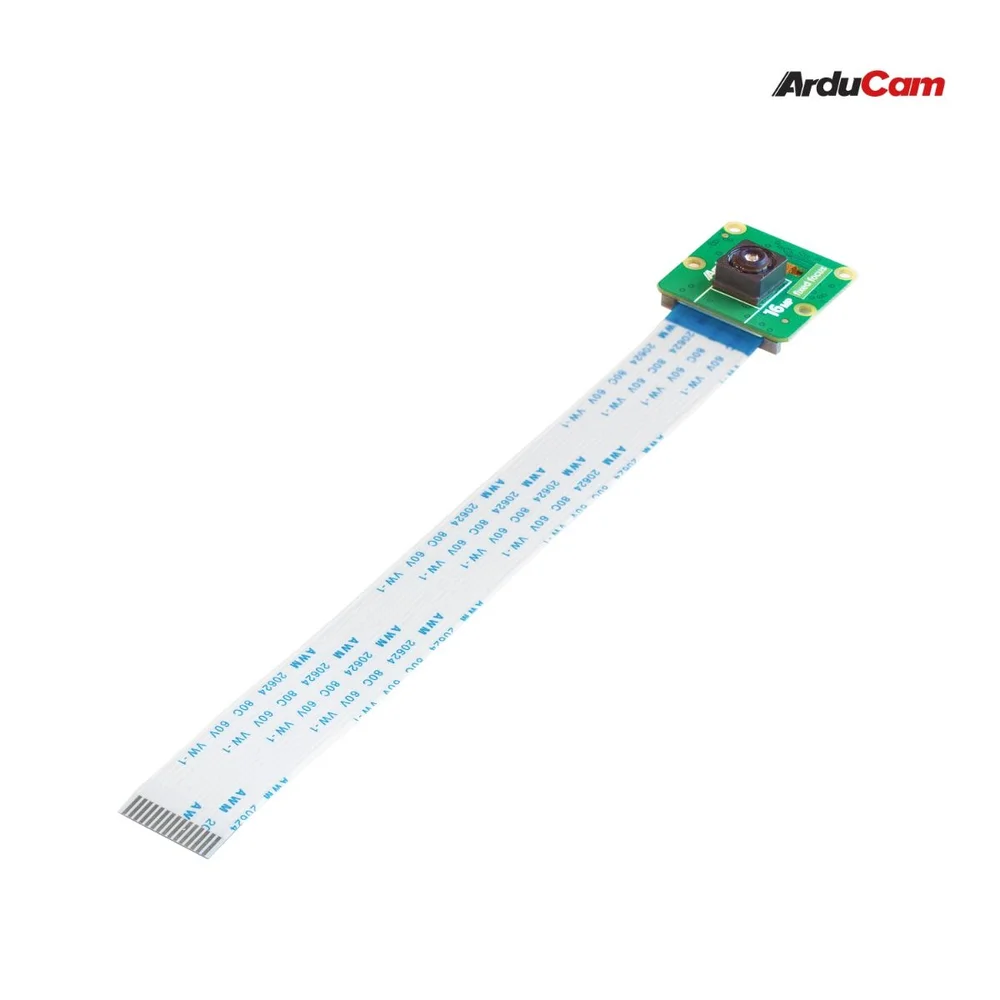

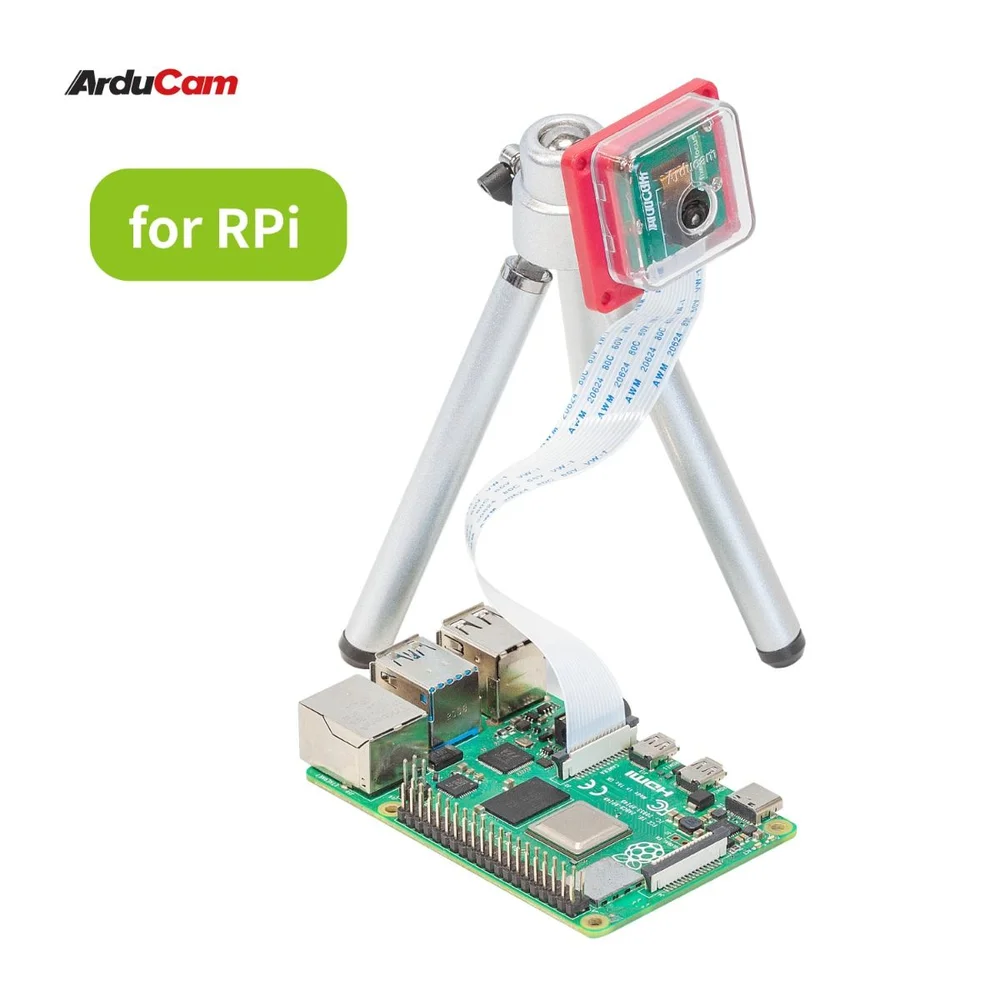

Enable the camera interface via 'sudo raspi-config' under Interface Options. Connect the module's FPC cable to the Pi's CSI port, ensuring the connector's teeth face away from the Ethernet port. The module uses the standard Raspberry Pi OS camera stack, so you can immediately use libcamera or raspistill/vid commands for capture without additional driver installation.

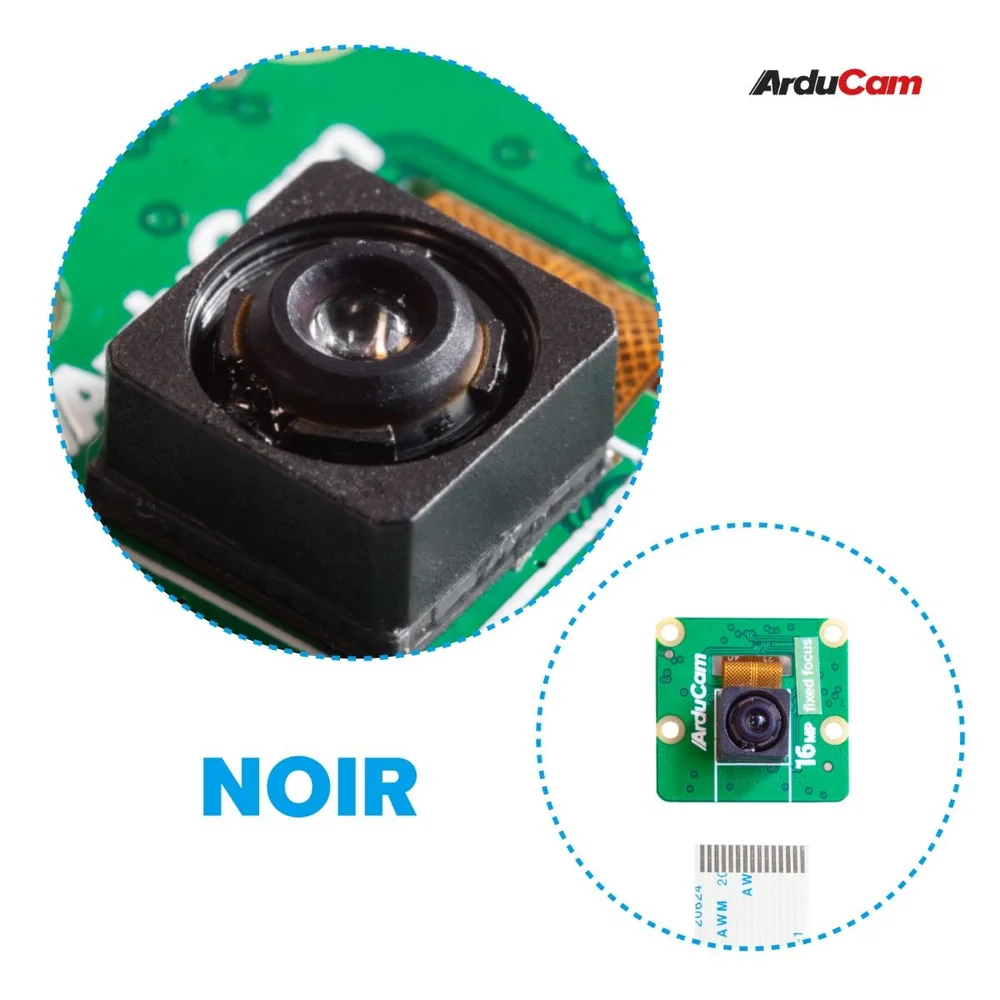

NOIR indicates 'No IR Filter.' The module lacks the typical infrared cut filter, making its sensor sensitive to both visible and infrared light. In daylight, colors may appear shifted unless you add an external IR cut filter. However, this design excels in low-light and night vision applications when paired with an IR illuminator, capturing details invisible to standard cameras.

Yes, it is fully compatible with video streaming and OpenCV. Use the V4L2 interface for access. You can capture video streams using OpenCV's VideoCapture with the appropriate /dev/videoX device index. For real-time applications, configure the resolution and frame rate (e.g., 1080p at 30 fps) within your code to optimize performance on your specific Raspberry Pi model's processing capabilities.

The lens is fixed and not designed to be user-interchangeable. It is a stock lens with an f/1.75 aperture and a 4.28mm focal length, providing an 80-degree field of view. For different focal lengths or specialized optics, you would need to consider a camera module variant designed with a standard lens mount, such as some CS-mount options from Arducam.
