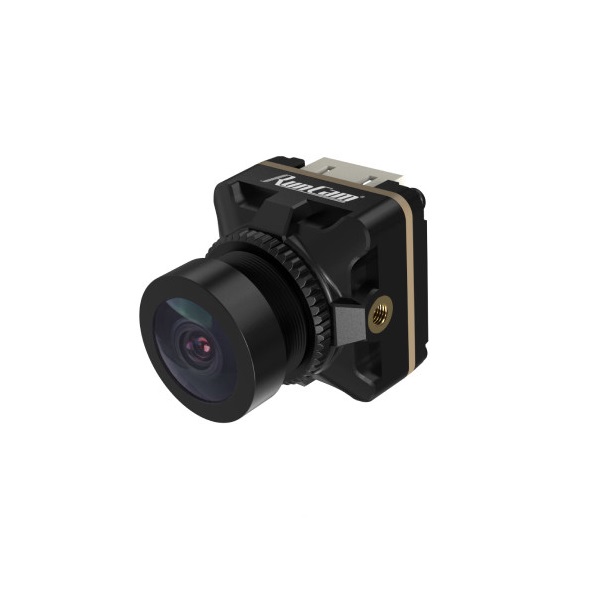

RunCam Phoenix 2 Special Edition V2 FPV Camera

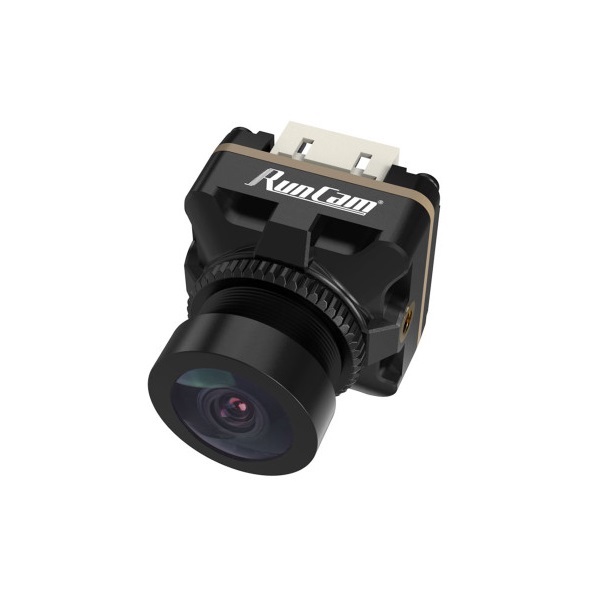

RunCam Phoenix 2 Special Edition V2 FPV Camera - Image 2
SKU: DRFC-2236
📋 GST Invoice Available

RunCam Phoenix 2 Special Edition V2 FPV Camera

₹4,019.00 (Inclusive of all taxes)
Out of Stock

The RunCam Phoenix 2 Special Edition V2 is a premium analog FPV camera featuring a 1/2″ CMOS sensor with 1000TVL resolution, a wide 160° diagonal FOV lens, and enhanced low-light performance for superior image clarity in challenging lighting conditions.

Features

  • 1/2″ CMOS sensor delivers 1000TVL horizontal resolution for sharp, detailed video.
  • Enhanced low-light sensitivity and Wide Dynamic Range (WDR) for balanced exposure in high-contrast scenes.
  • Wide 160° diagonal FOV lens (124° H, 95° V) with an F2.4 aperture for immersive flight views.
  • Switchable 4:3 / 16:9 aspect ratio and PAL/NTSC signal system for compatibility with various goggles and setups.
  • Broad 5-36V DC input voltage range supports direct connection to most LiPo flight batteries without a regulator.

Out of stock

Description

The RunCam Phoenix 2 Special Edition V2 is engineered for FPV pilots seeking uncompromised image quality. Its high-sensitivity 1/2″ CMOS sensor and global WDR shutter work in tandem to deliver vibrant colors and preserve detail across extreme lighting variations, from bright skies to shadowed ground. This makes it an ideal choice for both racing and cinematic freestyle flying.

Built with a compact and robust housing, the camera is designed for reliable performance in demanding outdoor environments. Its wide voltage compatibility simplifies integration into any build, from lightweight micro drones to larger 6S-powered rigs, ensuring a consistent power supply for stable video feed.

Key Features

  • High-Performance Sensor: 1/2" CMOS sensor provides excellent signal-to-noise ratio and detail retention.
  • Optimized Low-Light Optics: Special Edition lens and sensor tuning significantly improve visibility in dawn, dusk, and overcast conditions.
  • Global WDR Shutter: Ensures balanced exposure by preventing blown-out highlights and crushed shadows in high-contrast environments.
  • Versatile Aspect Ratio: User-selectable 4:3 or 16:9 format to match your FPV goggles' native display.
  • Wide Voltage Input: 5-36V DC range allows direct soldering to Vbat or regulated 5V pads, offering wiring flexibility.
  • Durable Construction: Housing is designed to withstand vibrations and minor impacts common in FPV flight.
  • Cable-Based Control: Simple 3-wire cable for power, video, and OSD menu control integration.

Applications

  • High-performance 5" FPV racing drones requiring the best possible analog video clarity and low latency.
  • Freestyle and cinematic drone builds where dynamic range and color rendition are critical for post-processing.
  • Low-light and night flying applications, leveraging its enhanced sensitivity for improved visibility.
  • Long-range and endurance builds benefiting from its wide voltage input for direct battery connection.
  • Micro and mini quadcopters where its compact size and light weight are advantageous.

Technical Specifications

Image Sensor1/2" CMOS Sensor
Horizontal Resolution1000TVL
Lens FOV (D/H/V)160° / 124° / 95° @ F2.4
Aspect Ratio4:3 / 16:9 Switchable
Signal SystemPAL / NTSC Switchable
Shutter TypeGlobal WDR
Sensitivity10650 mV/Lux-sec
Control MethodCable Control
Input VoltageDC 5-36V
Operating Current200mA @ 5V

Frequently Asked Questions

What is the main advantage of the Phoenix 2 Special Edition V2 over the standard version?

The Special Edition V2 features enhanced sensor tuning and optics specifically optimized for superior performance in low-light conditions. This results in significantly better visibility, reduced noise, and more detail retention during flights at dawn, dusk, or in heavily shadowed environments compared to the standard model.

Can I power this camera directly from a 6S LiPo battery?

Yes, the Phoenix 2 SE V2 has a wide input voltage range of 5-36V DC, which covers 2S to 6S LiPo batteries (8.4V to 25.2V nominal). You can solder it directly to your main battery voltage (VBAT) pad on the flight controller or PDB without needing a separate 5V regulator.

How do I switch between 4:3 and 16:9 aspect ratios?

The aspect ratio is changed via the camera's OSD menu. You need to connect the camera's control wire to a dedicated camera control pad on your flight controller (typically labeled CAM or CAM_CTRL) and use your transmitter's sticks to navigate the menu. Alternatively, a separate RunCam control board can be used for direct access.

Package Includes

  • 1 x RunCam Phoenix 2 Special Edition V2 Camera

Additional Information

Weight 0.041 kg
Dimensions 10 × 5 × 3 cm
