RunCam Split 4 4K FPV Camera - Standard Set
The RunCam Split 4 is a compact HD FPV camera module capable of recording 4K video at 30fps while providing a low-latency analog video feed for FPV flying. It features a wide 5-20V input range and UART control for integration with Betaflight and other flight controller firmware.
Features
- Records 4K@30fps, 2.7K@60fps, and 1080P@60fps video to a microSD card.
- Provides a low-latency (avg. 55ms) analog FPV feed with 140° FOV for real-time piloting.
- Wide voltage input range of 5-20V DC with built-in surge protection.
- Compact form factor with 25.5×25.5mm mounting pattern for micro and toothpick drones.
- Features UART interface for OSD control and camera settings via Betaflight.
Out of stock

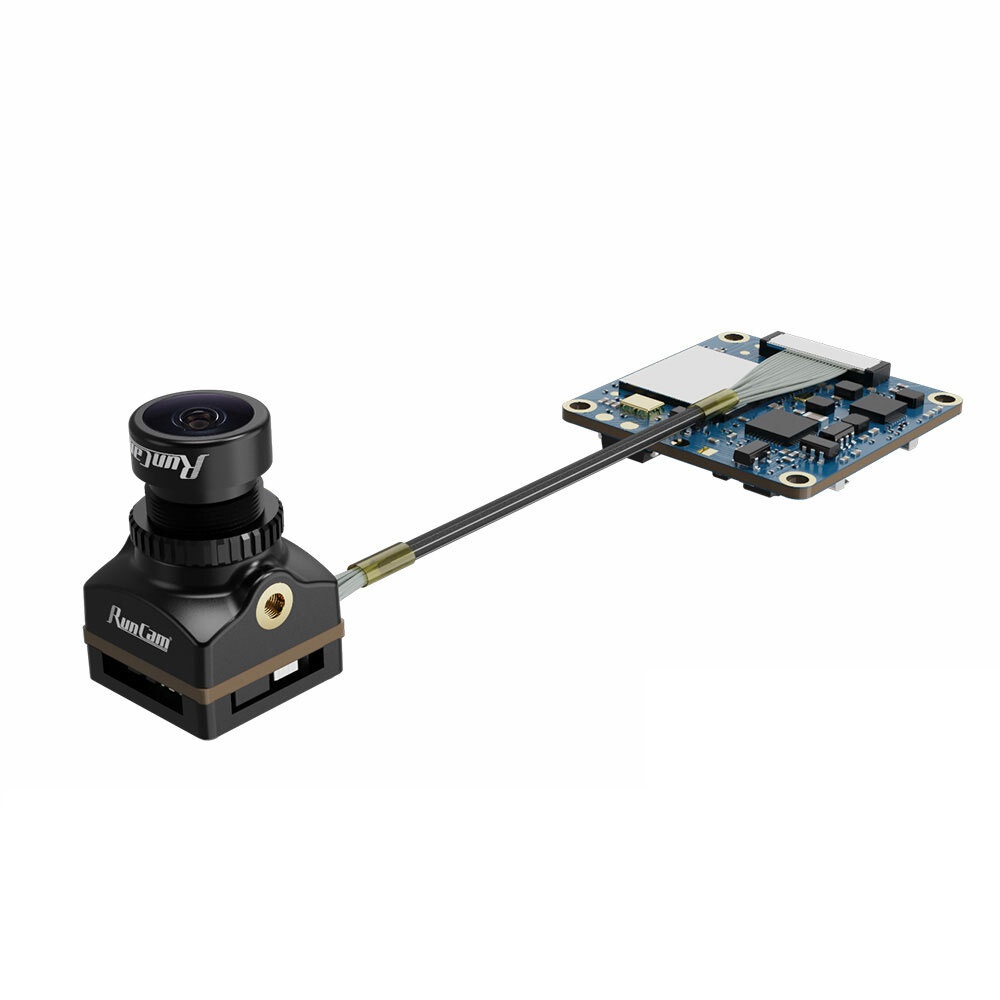

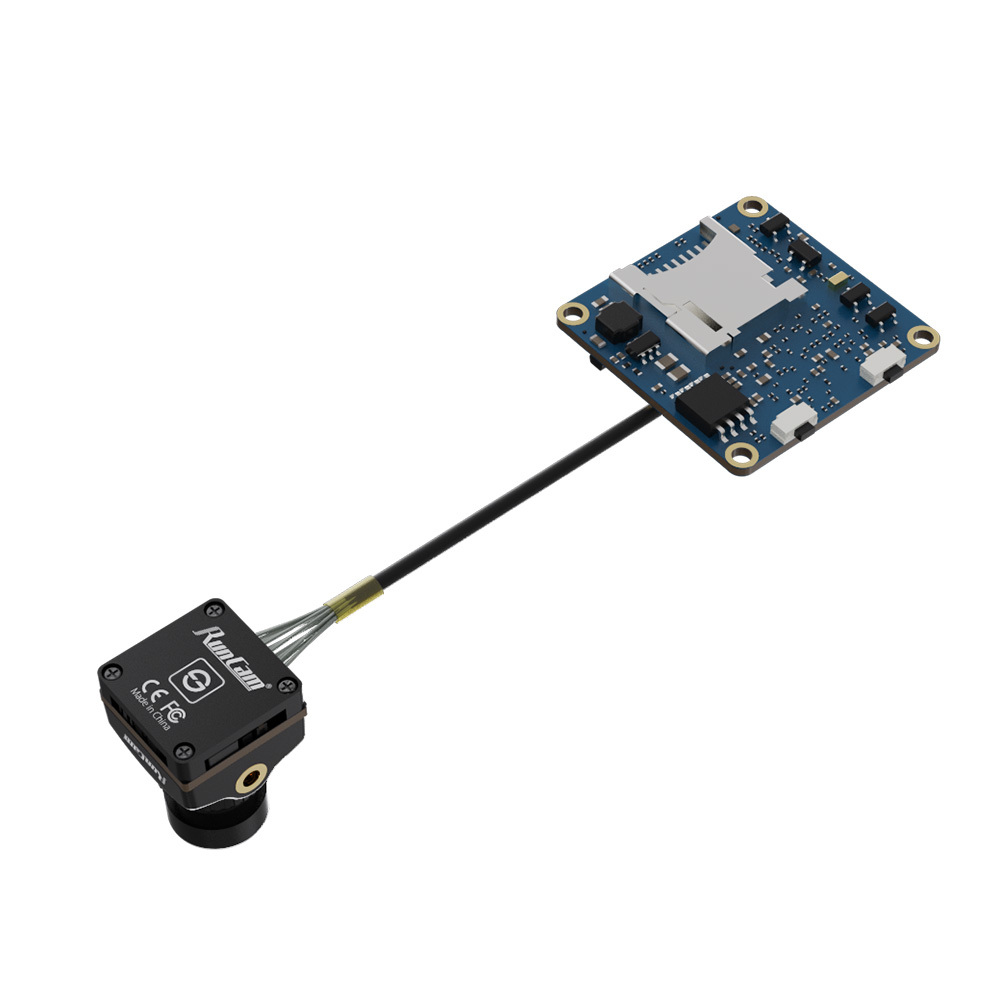

The RunCam Split 4 combines a high-resolution 13MP Sony image sensor for 4K recording with a dedicated analog video processor for a low-latency FPV feed. This dual-function design eliminates the need for a separate action camera on lightweight builds, significantly reducing weight and complexity. Its power management circuitry is engineered to handle voltage fluctuations common in drone power systems, protecting the recorded video files from corruption during sudden power loss.
Designed for integration, the Split 4 communicates via UART, allowing pilots to control recording, change settings, and access OSD data directly from their radio transmitter through the flight controller. The compact PCB and modular lens design facilitate installation in tight spaces, making it ideal for micro, whoop, and 3-4 inch toothpick drone frames where space and weight are at a premium.
Additional Information
| Weight | 0.076 kg |
|---|---|
| Dimensions | 10 × 7 × 5 cm |
