SinoSeen IMX415 CMOS 4K Camera Module USB 3.0 Type-C
The SinoSeen IMX415 CMOS Camera Module delivers 4K UHD video at 60 FPS via a high-speed USB 3.0 Type-C interface, ideal for computer vision, security, and broadcasting applications on Windows, Linux, Mac, and Android platforms.
Features
- Sony IMX415 8MP CMOS sensor for 3840×2160 4K video at 60 FPS.
- USB 3.0 Type-C interface enables ultra-fast 480 MB/s data transfer.
- 85° wide FOV M12 lens with low distortion (<0.1%) for accurate capture.
- Supports MJPG, YUY2 formats and 10-bit RAW output for professional imaging.
- Compact 30x30mm design with wide -30°C to 60°C operating temperature.
Out of stock

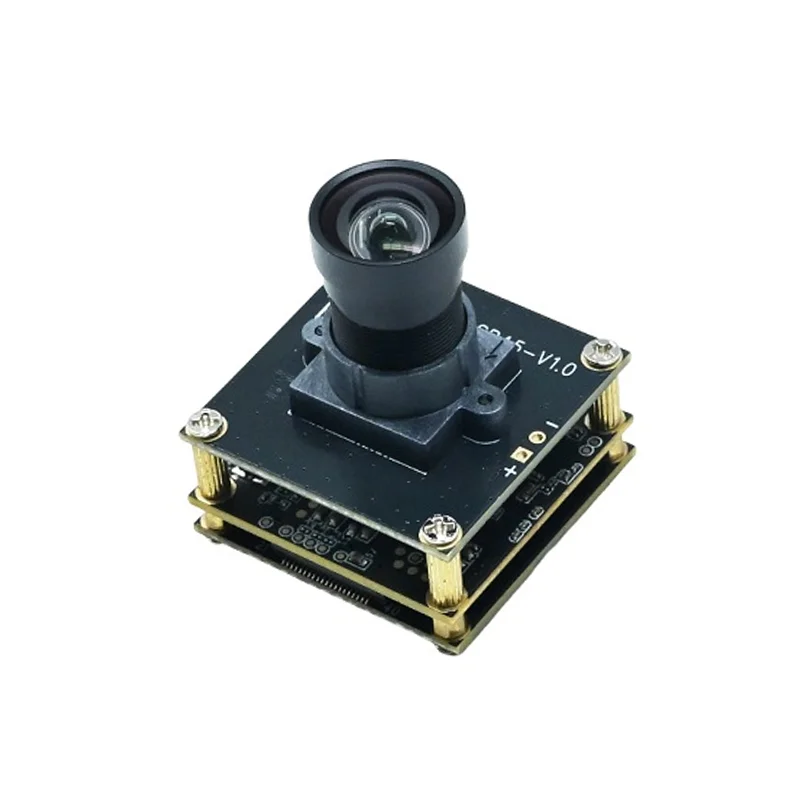

Engineered around the Sony IMX415 1/2.8-inch CMOS sensor, this camera module provides professional-grade 8-megapixel imaging with a pixel size of 1.45μm. It outputs uncompressed 4K UHD video at a smooth 60 frames per second, making it suitable for high-detail applications like machine vision, live streaming, and surveillance.

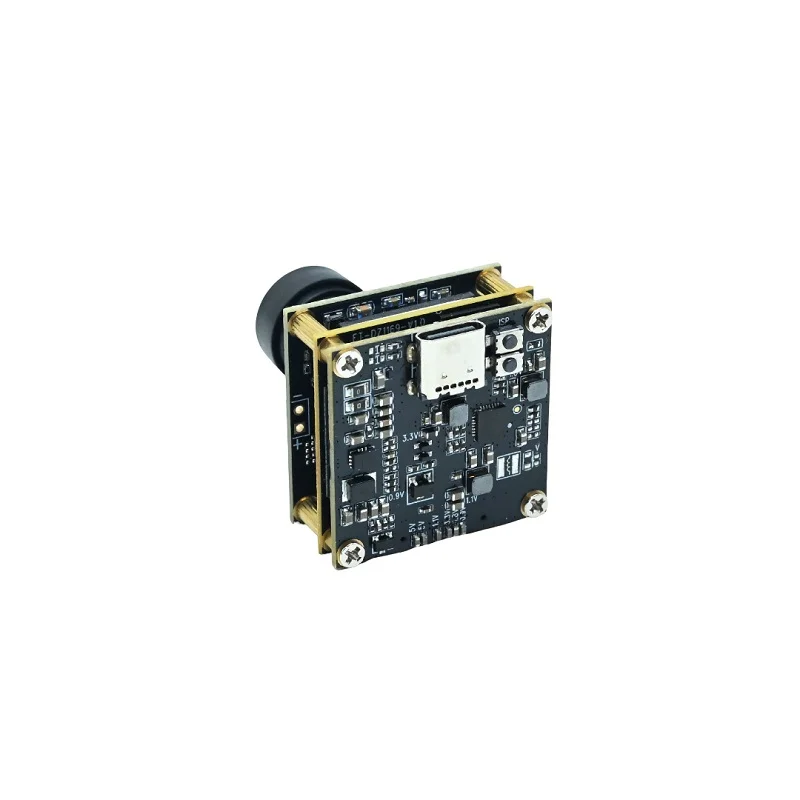

The integrated USB 3.0 Type-C interface ensures a maximum theoretical data throughput of 480 MB/s, eliminating bottlenecks for high-resolution, high-frame-rate video streams. The module features comprehensive hardware and software controls for fine-tuning imaging parameters such as exposure, contrast, brightness, and color balance directly from your application.
Housed in a robust, compact form factor, it operates from a standard 5V supply and is built to perform reliably in extended temperature ranges, supporting deployment in diverse industrial and commercial environments.
Additional Information
| Weight | 0.021 kg |
|---|---|
| Dimensions | 3 × 3 cm |
