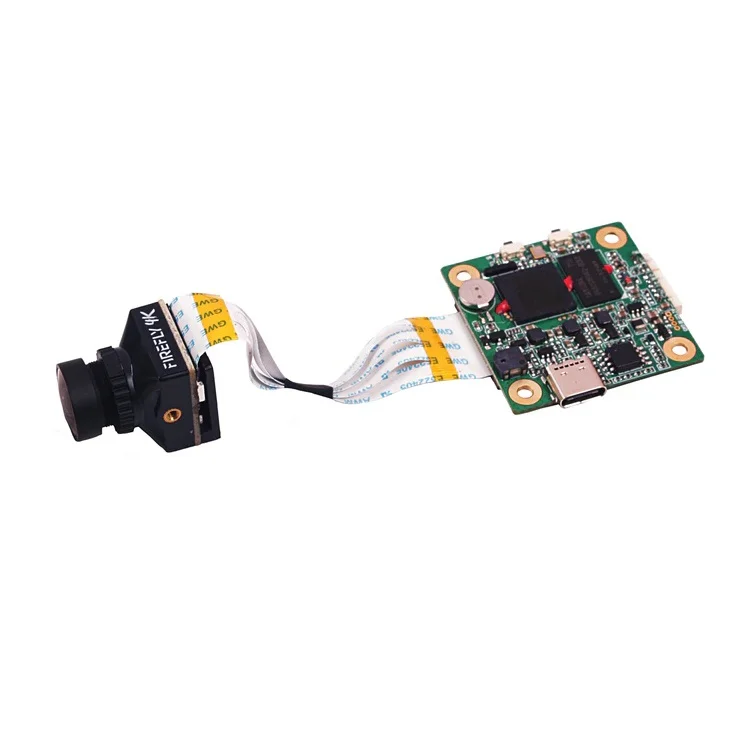

Hawkeye 4K Split v4.0 Action Camera w/ Gyroflow & 170° FOV
Hawkeye 4K Split v4.0 Action Camera w/ Gyroflow & 170° FOV - Image 2
SKU: IOWC-0244
📋 GST Invoice Available

Hawkeye 4K Split v4.0 Action Camera w/ Gyroflow & 170° FOV

₹11,899.00 (Inclusive of all taxes)
Out of Stock

The Hawkeye 4K Split v4.0 is a compact action camera featuring a Sony 12MP sensor, 4K/50fps video recording, and integrated gyroscopic data for post-processing stabilization with Gyroflow software.

Features

  • Sony 12MP Sensor: Captures high-resolution 4K video at 50fps and detailed still photos with excellent low-light performance.
  • Integrated Gyroflow Support: Records gyroscopic metadata for advanced software-based video stabilization, reducing shake and vibration in post-production.
  • Ultra-Wide 170° Field of View: Ensures expansive scene coverage for immersive action footage, ideal for sports and adventure recording.
  • Flexible Power & Storage: Wide 5-23V DC input range supports various power sources; accepts microSD cards up to 64GB (U1 or higher) for extended recording.
  • Compact Split Design: Small form factor (approx. 10x7x4 cm) and versatile mounting options enable discreet installation on drones, helmets, or vehicles.

Out of stock

Description

The Hawkeye 4K Split v4.0 is engineered as a professional-grade action camera module, built around a high-sensitivity Sony 12-megapixel CMOS sensor. It delivers crisp 4K video at 50 frames per second, alongside multiple high-frame-rate modes including 2.5K and 1080p, providing flexibility for different production needs. The camera’s core innovation is its embedded gyroscope, which logs motion data directly into the video file for seamless compatibility with Gyroflow stabilization software, enabling creators to achieve cinematic, gimbal-like smoothness in post-processing.

Designed for system integration, the camera operates on a wide 5-23V DC input, making it suitable for direct connection to vehicle power systems, drones, or external battery packs. Its ultra-wide 170-degree lens captures an immersive field of view, while the H.265 video compression ensures efficient file sizes without sacrificing quality. The compact, lightweight split-board construction allows for flexible placement in tight spaces, serving as an ideal vision sensor for FPV drones, robotics, automotive dash cams, and wearable sports recording systems.

Key Features

  • Gyroscopic Data Logging: Captures 6-axis motion data (accelerometer & gyroscope) for advanced software stabilization via Gyroflow, eliminating the need for bulky hardware gimbals.
  • High-Bitrate 4K Recording: Utilizes H.265/HEVC compression for efficient storage while maintaining high video fidelity and detail retention.
  • Wide Dynamic Range: The Sony sensor provides good performance in varied lighting conditions, preserving highlights and shadows.
  • Low-Latency Video Output: Features a latency of just 0.04 seconds, critical for real-time FPV drone piloting and monitoring applications.
  • Universal Power Compatibility: Accepts a broad 5-23V DC input, enabling direct integration with 12V automotive systems, LiPo batteries, or USB power banks.
  • Multi-Standard Support: Switchable between PAL and NTSC TV output standards for global compatibility with displays and recording equipment.

Applications

  • FPV Drone & UAV Cinematography: Primary camera for capturing stabilized, high-definition aerial footage with gyro data for post-processing.
  • Action Sports & Wearable Cameras: Mounted on helmets, bikes, or vehicles to record immersive POV videos of skiing, cycling, or motorsports.
  • Robotics & Machine Vision: Provides wide-angle vision for autonomous navigation, object detection, and environmental mapping in robotic platforms.
  • Automotive Dash Cams & Telemetry: Used as a compact dash cam with integrated motion sensing for security recording or driving data analysis.
  • Broadcast & Live Streaming: Compact source for live event coverage, streaming, or multi-camera setups requiring stabilization.

Technical Specifications

Image SensorSony 12MP CMOS
Field of View (FOV)170°
Max Video Resolution4K 50/30fps, 2.5K 4:3 48/30fps, 2.5K 16:9 50fps, 1080p 50/30fps
Gyro Data Recording4K 30fps, 2.5K 4:3 48/30fps, 2.5K 16:9 50fps, 1080p 50/30fps
Video Format / Codec.mp4 / H.265 (HEVC)
TV Standard / LatencyPAL/NTSC, 0.04 sec
USB InterfaceUSB Type-C (for data/power)
Storage SupportMicroSD card, 8-64GB (U1 speed class or above)
Supply VoltageDC 5V - 23V
Operating TemperatureNot specified
Dimensions (Shipping)10 x 7 x 4 cm
Weight (Shipping)0.076 kg

Frequently Asked Questions

How do I use the Gyroflow stabilization feature with this camera?

The camera records gyroscopic metadata directly into the video file. After recording, import the .mp4 file into the free Gyroflow desktop software. The software will automatically detect the motion data and apply advanced digital stabilization, allowing you to adjust smoothing, horizon lock, and crop parameters to achieve perfectly smooth footage. Ensure you record in a supported resolution/framerate mode (e.g., 4K 30fps) for gyro data capture.

What power supply is required, and can I power it from a 12V car battery?

Yes, the camera's wide 5-23V DC input range makes it directly compatible with 12V automotive systems. You can connect it to a car battery, drone power distribution board, or a USB power bank via a 5V regulator. Ensure the positive and negative wires are correctly connected to the camera's power terminals, and use a stable power source to avoid voltage spikes that could damage the sensor or processing circuitry.

What microSD card specifications are recommended for reliable 4K recording?

Use a high-speed microSD card with a U3 or V30 speed class rating for optimal performance with 4K/50fps H.265 video. The camera officially supports cards from 8GB to 64GB, formatted as exFAT or FAT32. Avoid slower U1 cards for continuous high-bitrate recording, as they may cause dropped frames or recording stoppages. Always format the card in the camera before first use to ensure file system compatibility.

Package Includes

  • 1 x Hawkeye 4K Split v4.0 Camera Module with Gyroflow

Additional Information

Weight 0.076 kg
Dimensions 7 × 10 × 4 cm

Related Products

Out of Stock

Arducam LN055 1.95mm F2.0 M12 Lens for 1/1.7" USB Cameras

1,089.00
Learn More
Out of Stock

Sony IMX219 8MP 160° FOV Fisheye Camera Module for Raspberry Pi

1,409.00
Learn More
Out of Stock

Raspberry Pi Camera Module 3 NoIR Wide

4,459.00
Learn More
Out of Stock

EDATEC 8MP 1.67mm Ultra Wide Angle Lens for M12 Mount

3,429.00
Learn More
Out of Stock

Arducam B0268 16MP IMX298 Wide Angle USB Camera w/ M12 Lens

7,749.00
Learn More
Out of Stock

Waveshare IMX708 12MP Camera Module with 120° FOV & HDR

6,239.00
Learn More
Out of Stock

Arducam 8MP HDR USB Camera Module with 115° M12 Lens

6,669.00
Learn More
Out of Stock

Arducam LN029 6mm Focal Length CS-Mount Lens for Raspberry Pi HQ Camera

1,729.00
Learn More
Out of Stock

Arducam 16MP IMX519 Camera Module with M12 Wide Angle Lens

4,259.00
Learn More
Out of Stock

Arducam B0303R 12.3MP 477M Mini Wide Angle Camera Module for Raspberry Pi

4,829.00
Learn More
Out of Stock

Arducam LN064 120° Wide Angle 1/2.3" M12 Lens w/ Adapter for Raspberry Pi HQ Camera

2,429.00
Learn More
Out of Stock

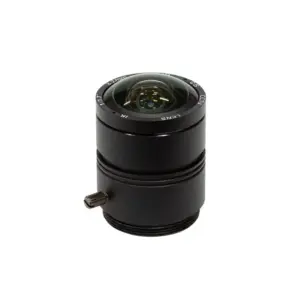

Arducam LN051 CS Lens for Raspberry Pi HQ Camera, 3.2mm 120° UltraWide
