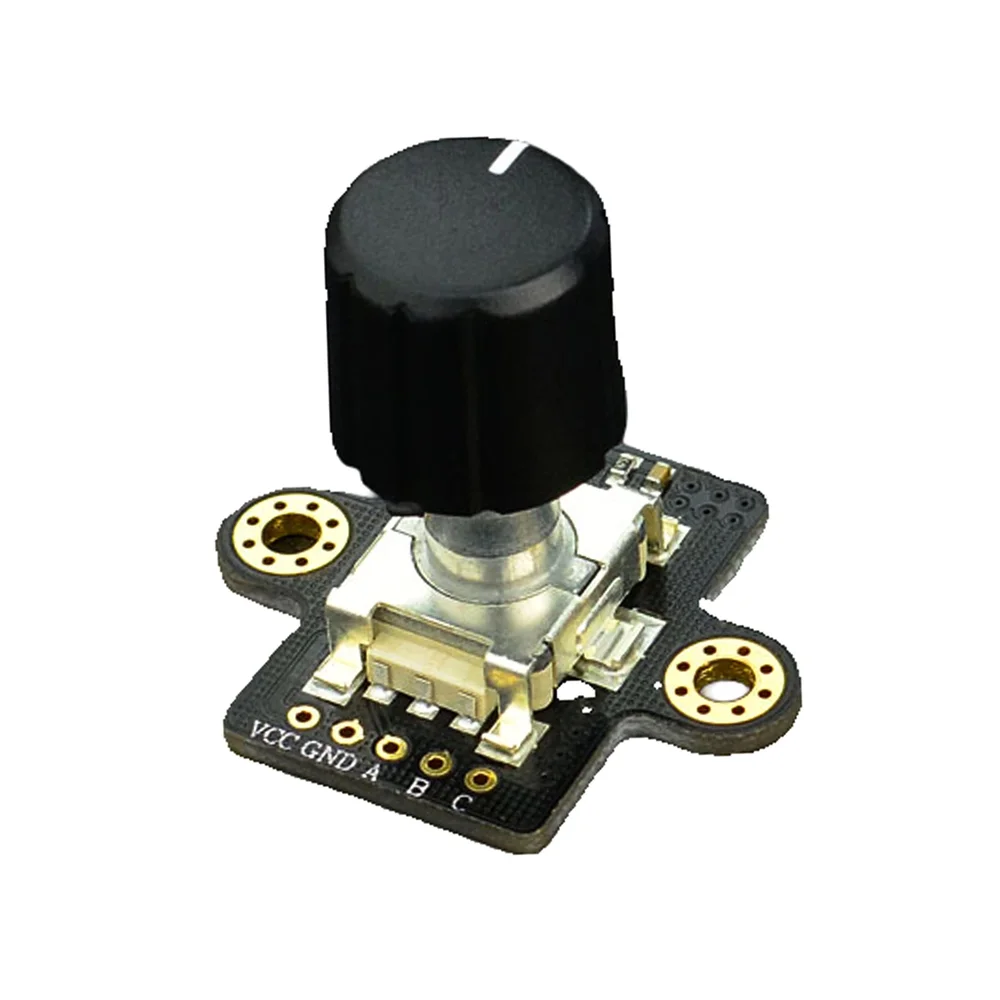

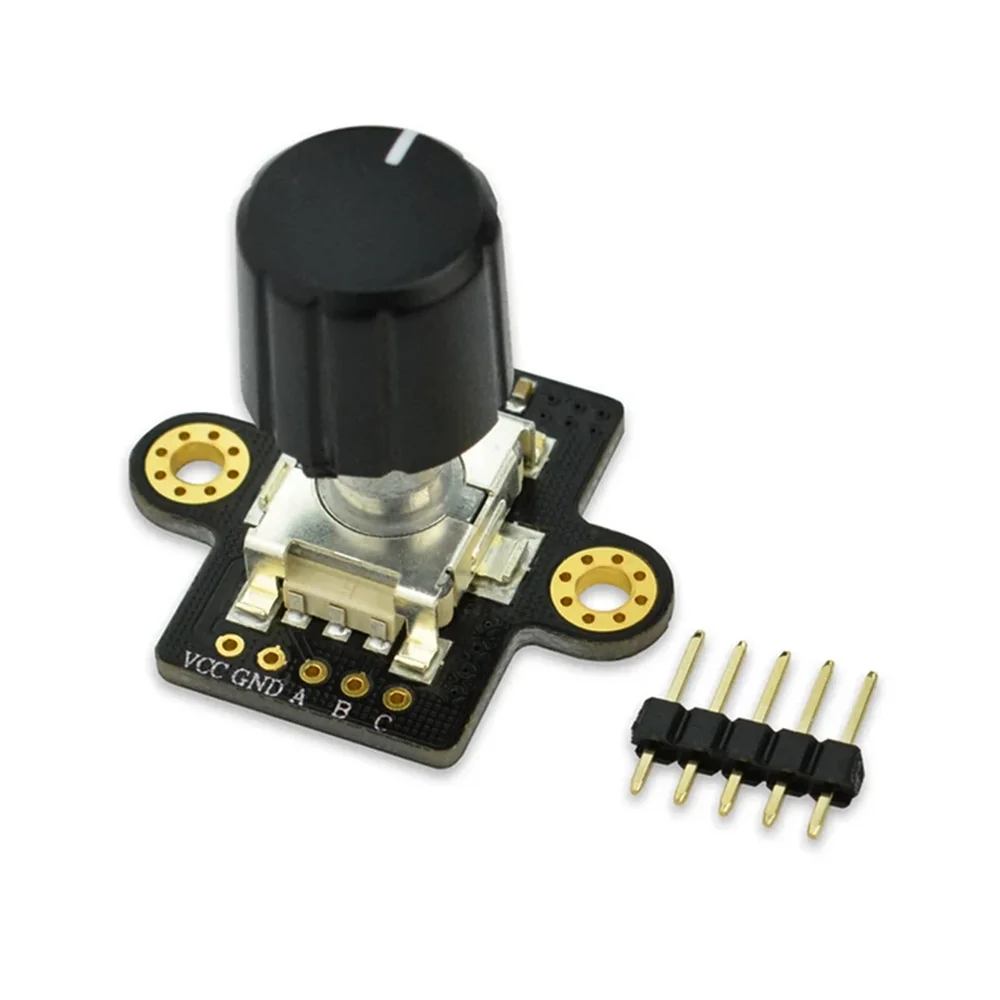

DFRobot Fermion EC11 Rotary Encoder Module Breakout - 360° Rotation, 3.3-5V
The DFRobot Fermion EC11 Rotary Encoder Module Breakout provides a 360° continuous rotation interface with integrated push-button functionality, compatible with 3.3V and 5V logic systems like Arduino, Raspberry Pi, and ESP32 for precise digital input control.
Features
- EC11-based 360° continuous rotary encoder with integrated push-button switch.
- Wide 3.3V to 5V operating voltage range for direct compatibility with most microcontrollers.
- High-durability mechanical design rated for over 30,000 rotation cycles.
- Easy-to-use XH2.54-3P bonding pads for quick prototyping and connection.
- Outputs quadrature (A/B) encoder signals and a separate button (C) signal.
Out of stock
This breakout module integrates a standard EC11 rotary encoder, providing a robust digital interface for detecting rotational direction, speed, and position, alongside a momentary push-button. The quadrature output signals (A and B) allow precise tracking of rotation, while the separate button signal (C) adds a tactile input layer. The module’s design simplifies integration by breaking out the encoder pins to a standard 3-pin XH2.54 connector.
Engineered for reliability, the encoder mechanism is rated for over 30,000 rotation cycles, ensuring long-term performance in interactive control panels, instrumentation, and user interface projects. Its 3.3V to 5V logic compatibility makes it a versatile drop-in component for development platforms from Arduino and ESP32 to Raspberry Pi and industrial PLC digital input modules.
Additional Information
| Weight | 0.02 kg |
|---|---|
| Dimensions | 6 × 7 × 5 cm |
