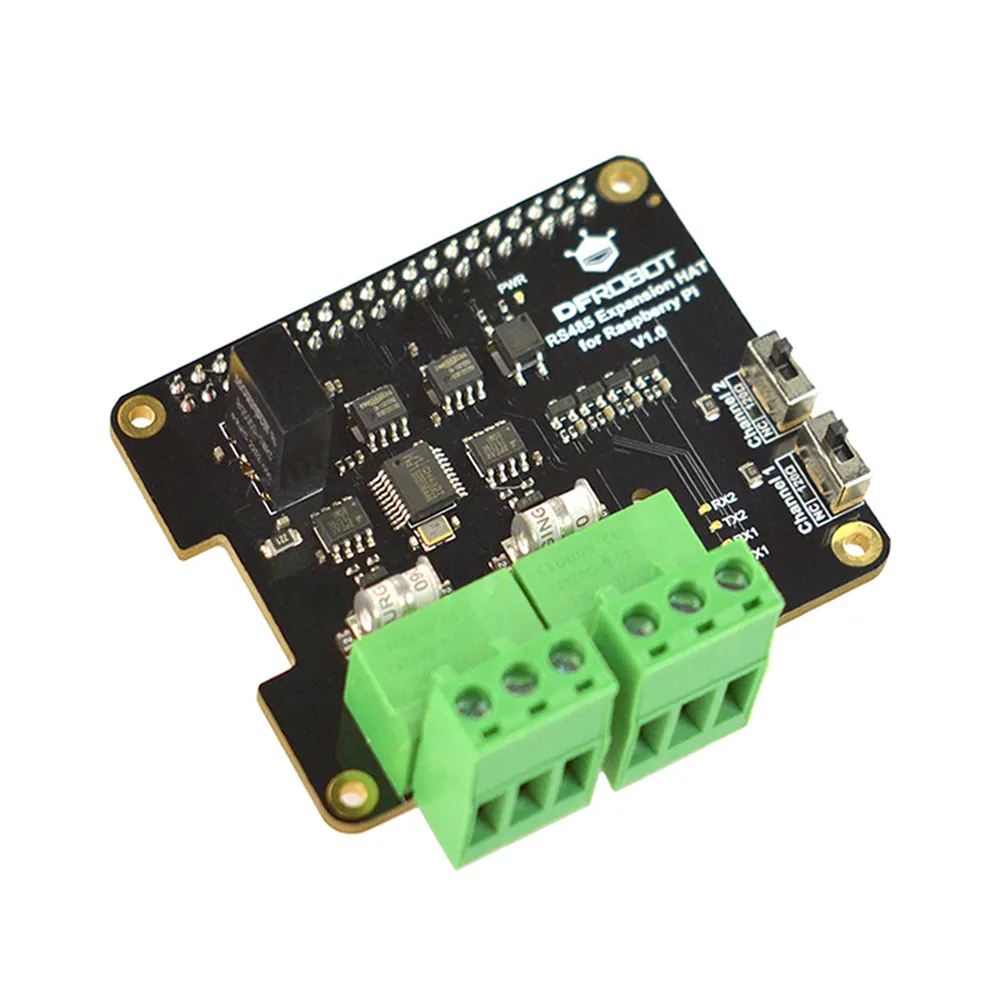

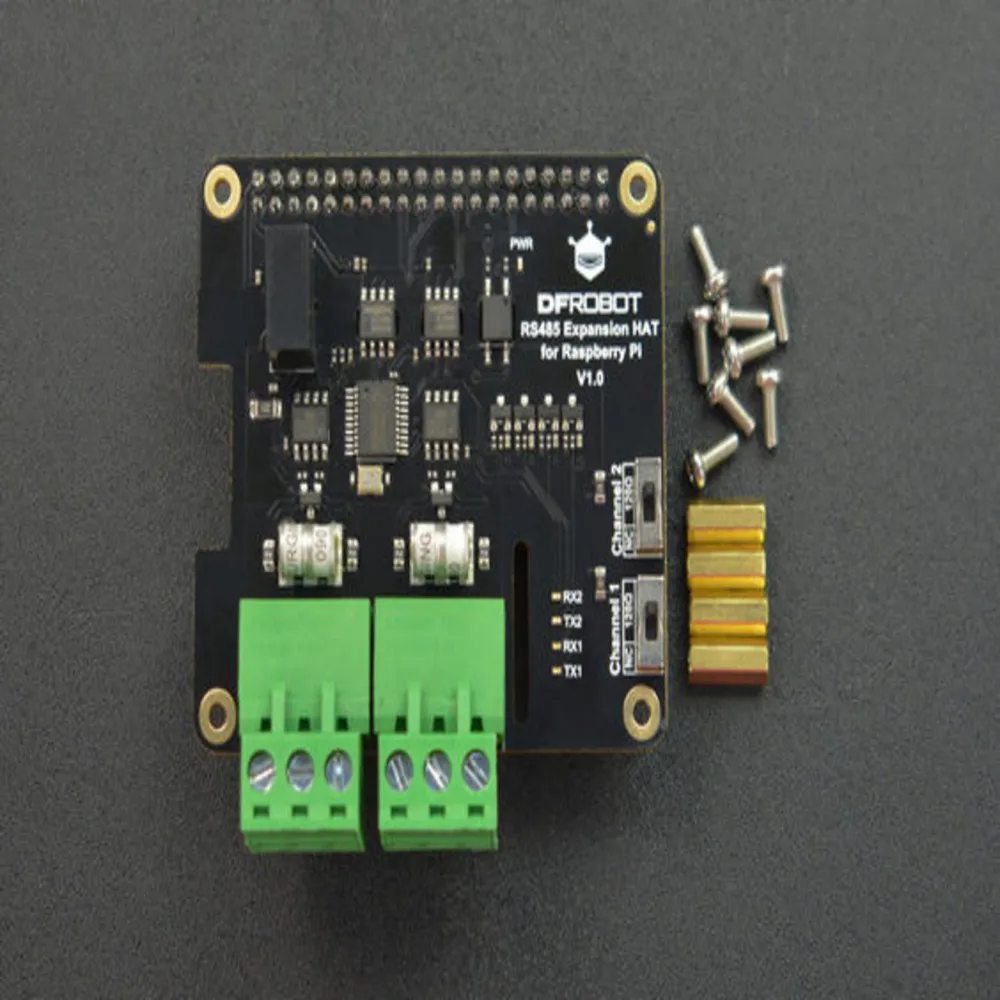

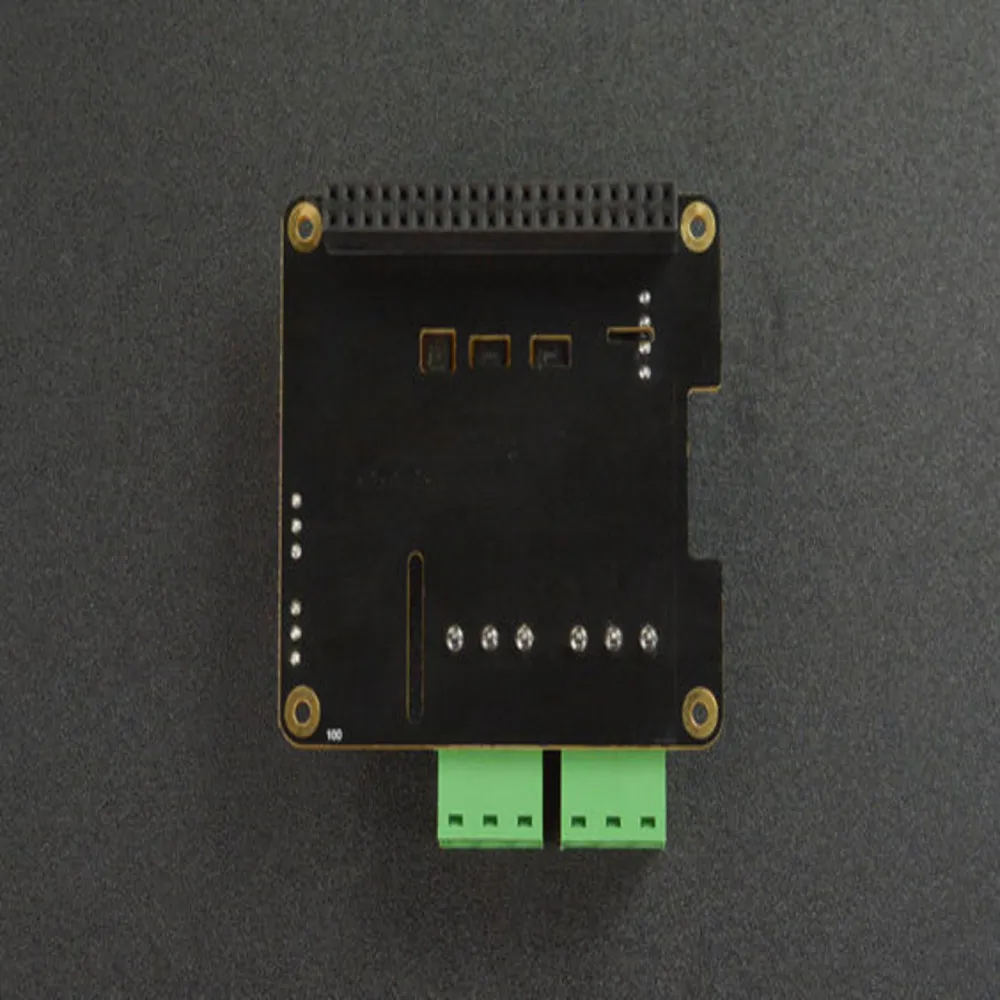

DFRobot Dual-channel Isolated RS485 HAT for Raspberry Pi
The DFRobot Dual-channel Isolated RS485 Expansion HAT provides robust, isolated RS485 communication for Raspberry Pi 3B+ and 4B. Featuring integrated lightning, surge, and TVS protection, this HAT ensures reliable, noise-resistant data transmission in industrial and demanding environments.
Features
- Dual-channel isolated RS485 communication for enhanced reliability.
- Utilizes TP75176E transceiver and CH432T serial chip.
- Integrated protection against lightning, surge, and transient voltages.
- Directly compatible with Raspberry Pi 3B+ and Raspberry Pi 4B.
- Includes RX/TX indicators and onboard 120Ω terminal resistors.
Out of stock
The DFRobot Dual-channel Isolated RS485 Expansion HAT is engineered to bring robust RS485 serial communication capabilities to your Raspberry Pi projects. RS485 is a widely adopted standard known for its excellent noise rejection, ability to transmit over long distances, and multi-drop networking support. It achieves this through differential data transmission, effectively suppressing common-mode interference, making it ideal for industrial control and monitoring applications.
This HAT stands out with its dual independent RS485 channels, each employing an isolated transceiver to achieve electrical and signal isolation. This critical feature significantly boosts the reliability and anti-interference capabilities of data transmission, safeguarding your Raspberry Pi from ground loops and electrical surges. Furthermore, it incorporates comprehensive protection circuits including lightning and surge protectors, TVS diodes, and power supply isolation, providing a resilient layer of defense for your Raspberry Pi development board in harsh operating conditions.
Additional Information
| Weight | 0.052 kg |
|---|---|
| Dimensions | 6.5 × 5.6 cm |
