DFRobot M10 IoT Python SBC with Touchscreen
The DFRobot M10 is a versatile IoT Python single board computer featuring a 2.8-inch touchscreen, a Quad-Core ARM Cortex-A35 CPU, 512MB RAM, and 16GB Flash memory. Designed for rapid prototyping, it integrates essential sensors and a co-processor to simplify embedded development.
Features

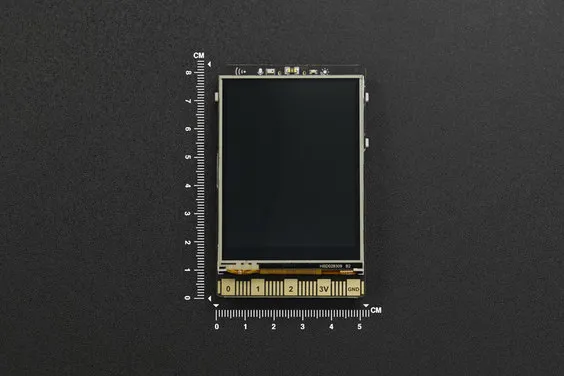

- Integrated 2.8-inch (240×320) touchscreen for direct interaction.

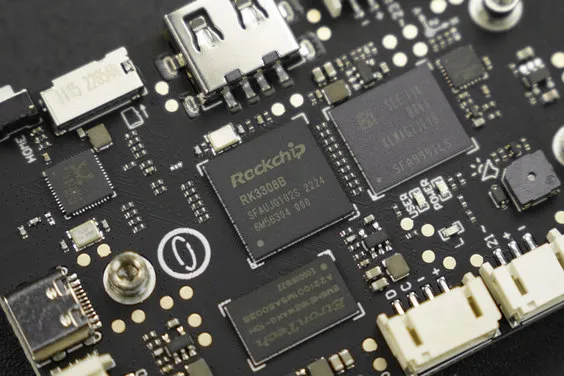

- Quad-Core ARM Cortex-A35 CPU (up to 1.2GHz) with 512MB RAM and 16GB Flash.
- Built-in Wi-Fi, Bluetooth, and diverse sensors including light, accelerometer, gyroscope, and microphone.
- Supports Python development through a pre-installed Jupyter Notebook environment.
- Dedicated co-processor enables easy communication with analog, digital, I2C, UART, and SPI peripherals.
Out of stock
The DFRobot M10 is engineered to provide a streamlined development experience for IoT and embedded projects. Its compact form factor integrates a vibrant 2.8-inch touchscreen, eliminating the need for external display setups. At its core, a Quad-Core ARM Cortex-A35 processor ensures robust performance for running Debian OS and Python applications, complemented by 512MB of RAM and 16GB of flash storage.
Connectivity is comprehensive, featuring onboard Wi-Fi and Bluetooth for wireless communication, alongside a suite of integrated sensors such as a light sensor, accelerometer, gyroscope, and microphone. A crucial aspect of the DFRobot M10 is its built-in co-processor, which offloads peripheral management and simplifies interaction with a wide array of external analog, digital, I2C, UART, and SPI sensors and actuators. This design choice accelerates prototyping and system integration.
For software development, the DFRobot M10 comes pre-configured with a Jupyter Notebook environment, allowing for browser-based Python programming directly from a smartphone or tablet. The integrated PinPong control library further simplifies the control of both built-in and external hardware. Additionally, the device includes an SIoT service that leverages the MQTT protocol for data storage and provides real-time web access, ensuring all data remains securely stored on the device itself.
Additional Information
| Weight | 0.2 kg |
|---|
