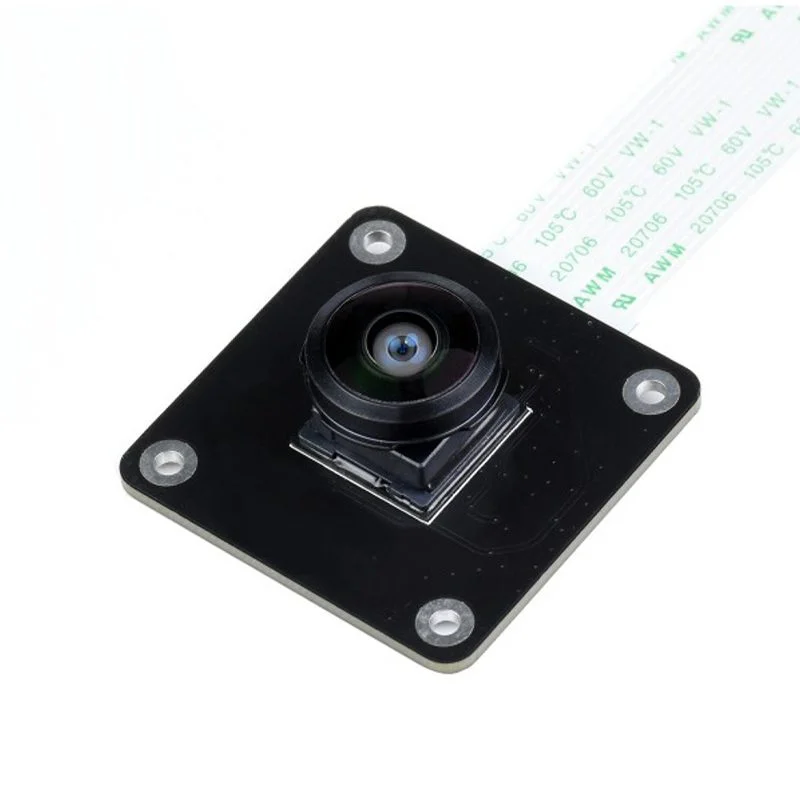

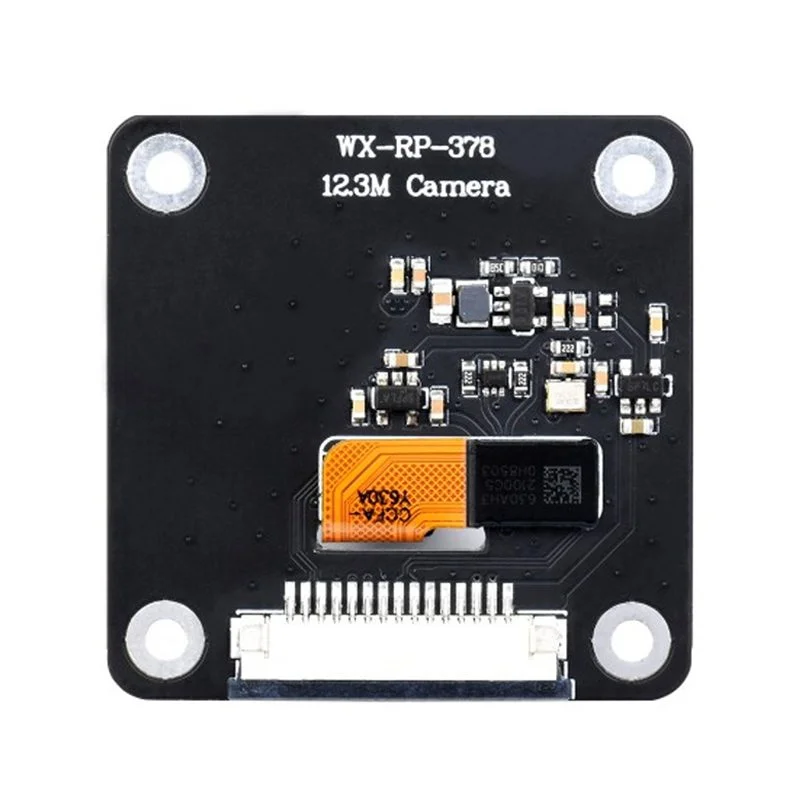

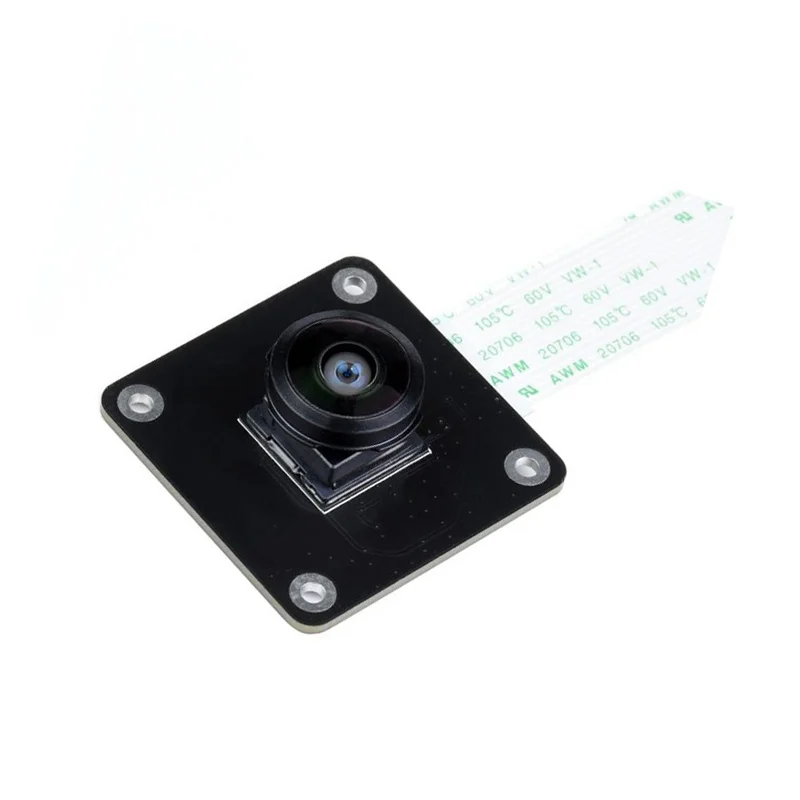

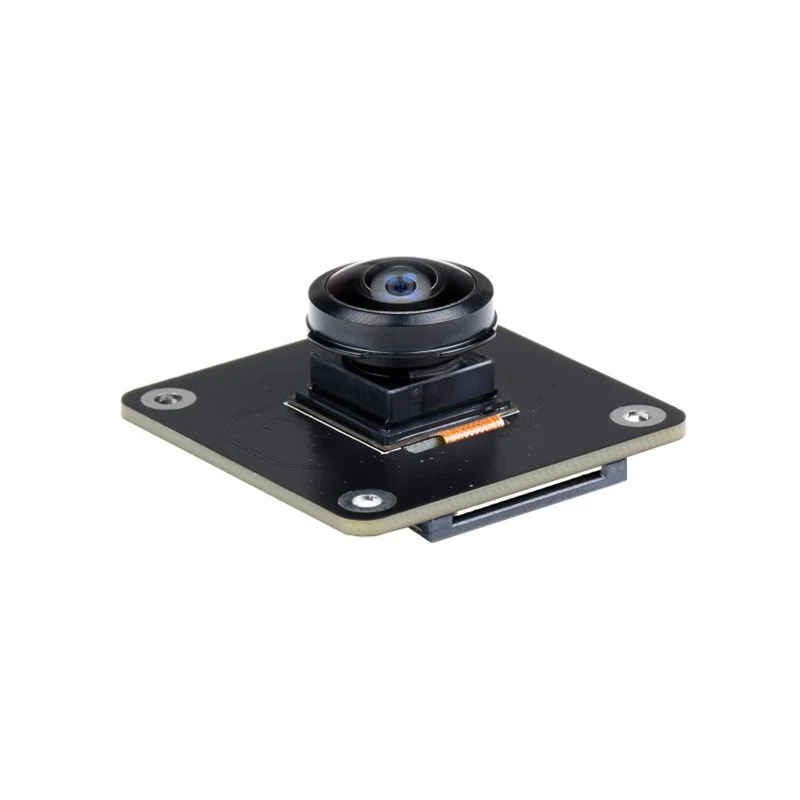

DFRobot IMX378-190 12.3MP Wide-Angle Camera for Raspberry Pi 4B/5

Yes, the DFRobot IMX378-190 camera module is fully compatible with the Raspberry Pi 5, as well as the Raspberry Pi 4B, 3B+, and 3A+. It connects using the standard Raspberry Pi Camera Serial Interface (CSI) via the supplied 15-pin flat flex cable (FFC). Ensure your Raspberry Pi OS is updated and enable the camera interface using the `raspi-config` tool under 'Interface Options' for proper detection and functionality.

The global shutter captures the entire image sensor data simultaneously in a single instant, unlike a rolling shutter which scans row by row. This eliminates motion distortion, known as the 'jello effect,' when capturing fast-moving objects. It is critical for applications in robotics, high-speed inspection, and automated guidance systems where temporal accuracy and image integrity are paramount, ensuring clear and undistorted frames even during rapid movement.

First, power down your Raspberry Pi. Connect the 15-pin FFC cable to the camera's connector, ensuring the blue side faces the Ethernet/USB ports, and plug the other end into the Raspberry Pi's CSI port. Boot the Pi, open a terminal, and run `sudo raspi-config`. Navigate to 'Interface Options,' select 'Camera,' and enable it. Reboot. You can then test the camera using commands like `libcamera-hello` or `raspistill -o test.webp` to capture an image.

No, the DFRobot IMX378-190 camera features a fixed-focus lens, which is pre-set at the factory for optimal sharpness across its wide field of view. This design simplifies integration by removing the need for manual focus calibration, providing consistent imaging performance. It is ideal for applications where the subject distance is relatively constant or where hands-free, reliable operation is more critical than adjustable focus.
