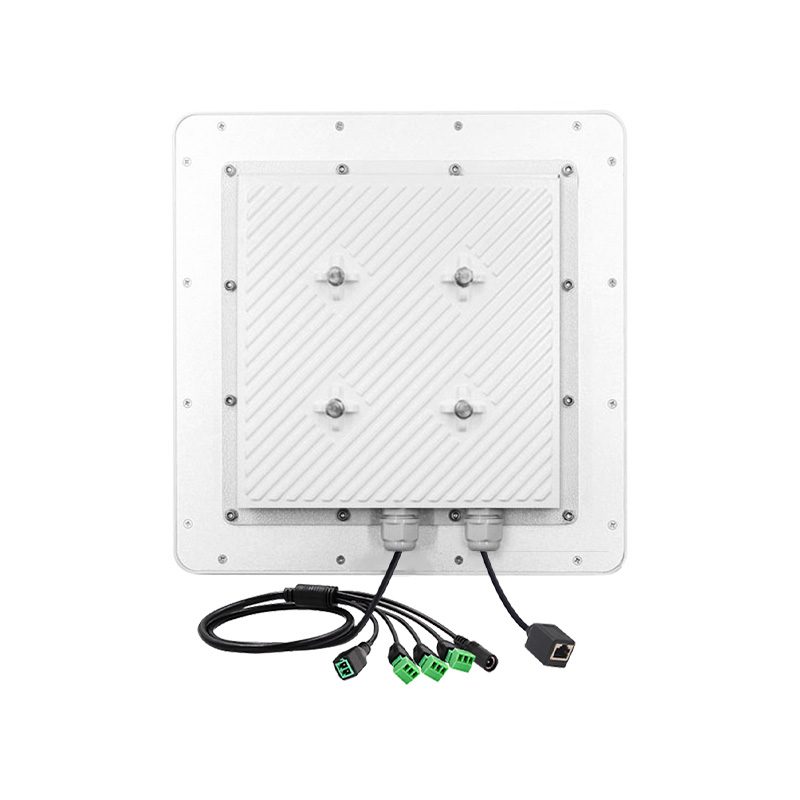

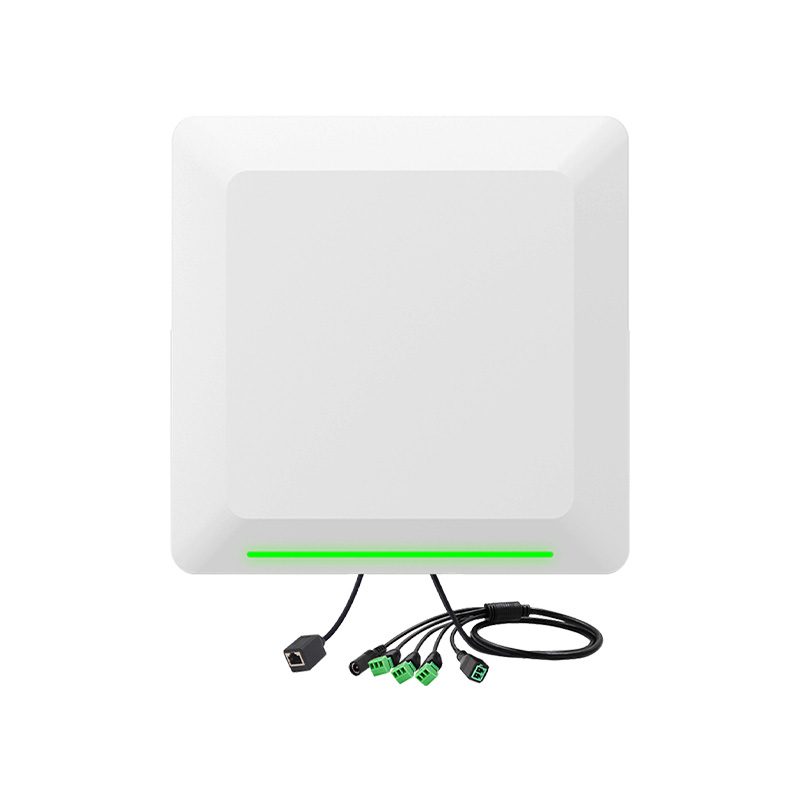

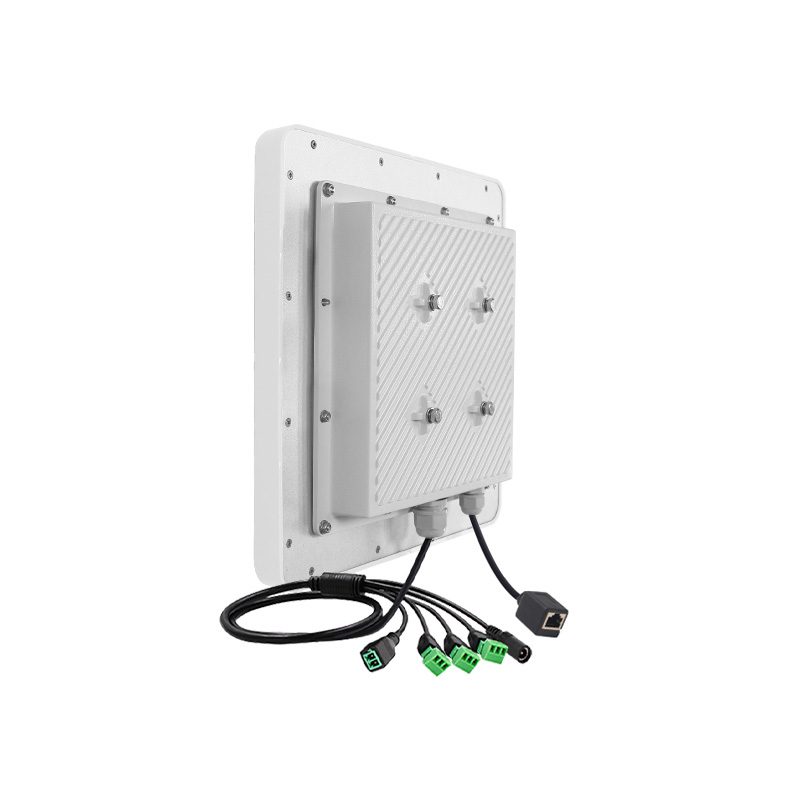

CHAFON A200 UHF RFID Standalone Reader, 865-867 MHz, EPC Gen2, Built-in 9 dBi Antenna, IP65, Reading Distance: 0-10 m

The CHAFON A200 UHF RFID Standalone Reader is engineered for robust asset tracking and access control applications. Operating at the 865-867 MHz frequency band (compliant with EU regulations), it utilizes the ISO18000-6C (EPC Gen2) protocol for efficient communication with passive UHF tags. Its integrated 9 dBi circularly polarized antenna optimizes tag read rates and provides a consistent read range of up to 10 meters under ideal conditions.

Designed for system integrators, the reader features a comprehensive suite of industrial communication interfaces including TCP/IP for network integration, RS485 for long-distance daisy-chaining, and Wiegand for direct connection to access control panels. The adjustable RF output power (0-26 dBm) allows for fine-tuning the interrogation zone to match specific deployment needs and comply with local RF emission regulations. The IP65-rated housing, constructed from durable ABS plastic and a die-cast aluminum back cover, ensures reliable operation in environments exposed to dust and water splashes across a wide operating temperature range of -10°C to +55°C.
