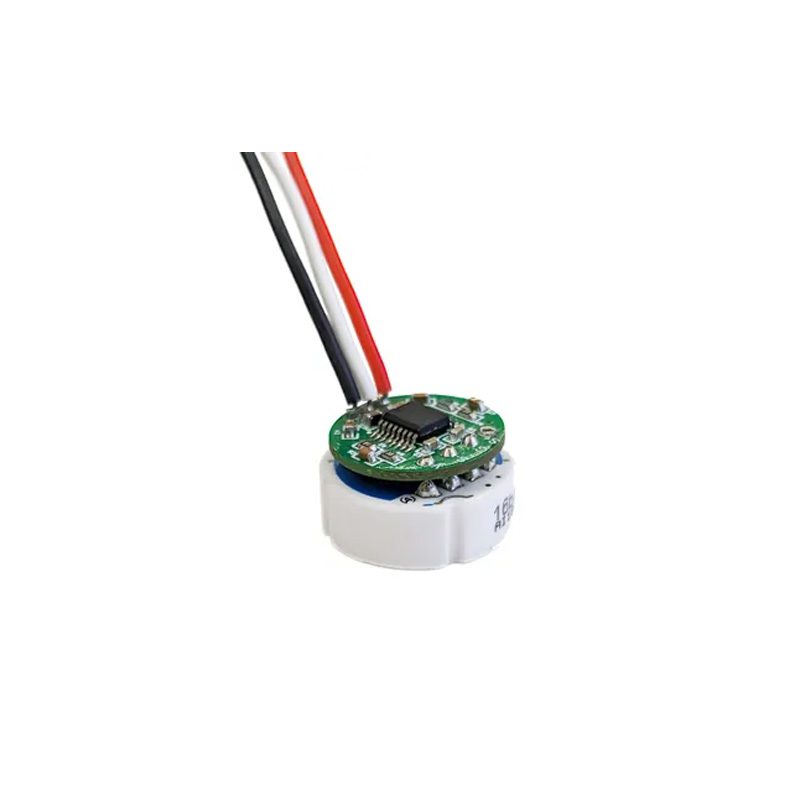

Ascenta MM818 Pressure Sensor Module 0-10 bar Gauge - 5V Input, 0.5-4.5V Output
The Ascenta MM818 is a ceramic piezoresistive pressure sensor module delivering a 0.5-4.5V analog output for a 0-10 bar gauge pressure range. It operates from a 5V DC supply and is engineered for integration with industrial PLCs, data acquisition systems, and microcontroller-based projects requiring stable, precise pressure monitoring.
Features
- Ceramic piezoresistive sensing element for high durability and corrosion resistance.
- 0.5-4.5V ratio-metric analog voltage output corresponding to 0-10 bar gauge pressure.
- ±0.5% F.S. accuracy with laser calibration and dynamic temperature compensation.
- Wide operating temperature range from -40°C to +140°C.
- Designed for EMC protection and resistance to shock and vibration.
Out of stock
The Ascenta MM818 module utilizes a thick-film piezoresistive circuit printed on a high-elasticity ceramic substrate. This construction provides inherent resistance to corrosion, abrasion, and media contamination, making it suitable for demanding fluid and gas pressure applications. The integrated signal conditioning chip converts the piezoresistive bridge imbalance into a stable, ratio-metric analog voltage signal.
Laser calibration and dynamic temperature compensation are applied to ensure long-term stability (≤0.15% FS/year) and minimal thermal drift across its extensive -40°C to +140°C operating range. The module’s patented circuit design offers robust electromagnetic compatibility (EMC) protection, ensuring reliable performance in electrically noisy industrial environments.
Additional Information
| Weight | 0.005 kg |
|---|---|
| Dimensions | 13 × 9 × 1 cm |
